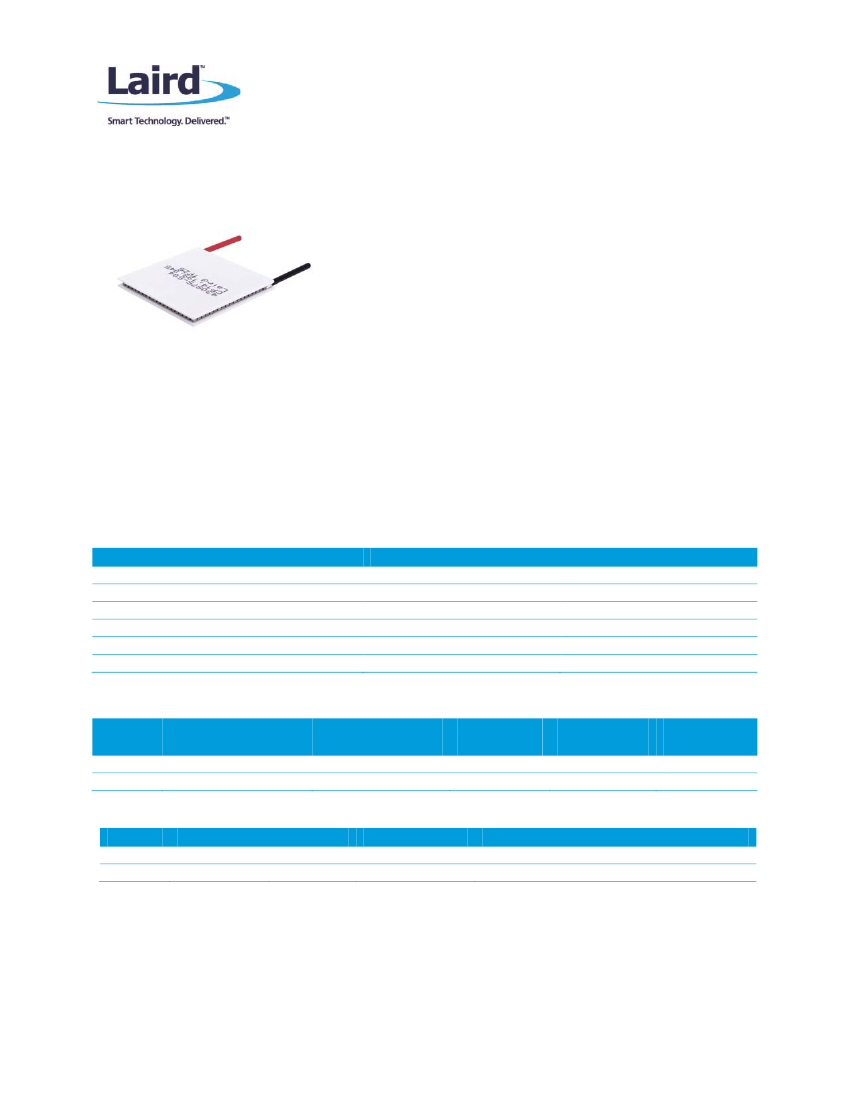

CP Series CP14-199-06
Thermoelectric Modules
The Ceramic Plate (CP) Series of Thermoelectric Modules (TEMs) is
considered ‘the standard’ in the thermoelectric industry.
This broad product line of high-performance and highly reliable TEMs is
available in numerous heat pumping capacities, geometric shapes, and
input power ranges. Assembled with Bismuth Telluride semiconductor
material and thermally conductive Aluminum Oxide ceramics, the CP
Series is designed for higher current and large heat-pumping
applications.
FEATURES
•
•
•
•
•
•
Americas: +1.919.597.7300
Europe: +46.31.420530
Asia: +86.755.2714.1166
ets.sales@lairdtech.com
www.lairdtech.com
Precise temperature control
Compact geometric sizes
Reliable solid state operation
No sound or vibration
Environmentally friendly
DC operation
•
RoHS compliant
APPLICATIONS
•
•
•
•
•
•
•
Medical lasers
Lab science instrumentation
Clinical diagnostic systems
Photonics laser systems
Electronic enclosure cooling
Food & beverage cooling
Chillers (liquid cooling)
PERFORMANCE SPECIFICATIONS
Hot Side Temperature (°C)
Qmax (Watts)
Delta Tmax (°C)
Imax (Amps)
Vmax (Volts)
Module Resistance (Ohms)
25°C
80.9
67
6.0
22.7
3.49
50°C
88.8
75
6.0
25.7
3.94
SUFFIX
L1
L2
0.150”± 0.001”
0.150”± 0.0005”
THICKNESS
(PRIOR TO TINNING)
0.001” / 0.001”
0.0005” / 0.0005”
FLATNESS &
PARALLELISM
HOT
FACE
Lapped
Lapped
COLD
FACE
Lapped
Lapped
LEAD
LENGTH
10”
10”
SEALING OPTION
SUFFIX
RT
EP
RTV
Epoxy
SEALANT
COLOR
White
Black
TEMP RANGE
-60 to 204°C
-55 to 150°C
DESCRIPTION
Non-corrosive, silicone adhesive sealant
Low density syntactic foam epoxy encapsulant
Page
1
of
2
CP14-199-06

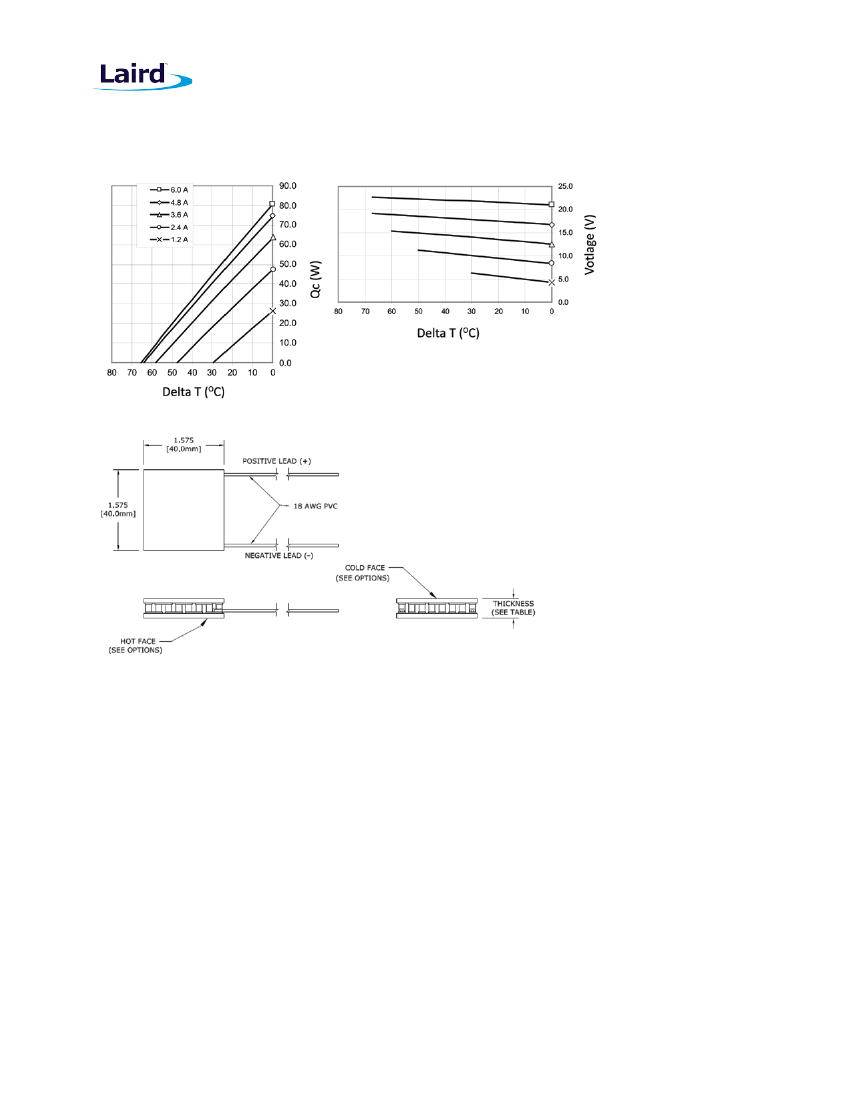

Performance Curves at Th = 25°C
THERMO
ELECTRIC
Ceramic Material: Alumina (AI
2
O
3
)
Solder Construction: 138°C, Bismuth Tin (BiSn)
OPERATING TIPS
•
•
•
•
Max operating temperature: 80°C
Do not exceed Imax or Vmax when operating module
Reference assembly
guidelines
for recommended installation
Solder tinning also available on metallized ceramics
LAIRD-ETS-CP14-199-06-DATA-SHEET-101416
