Designed for Rugged Excellence

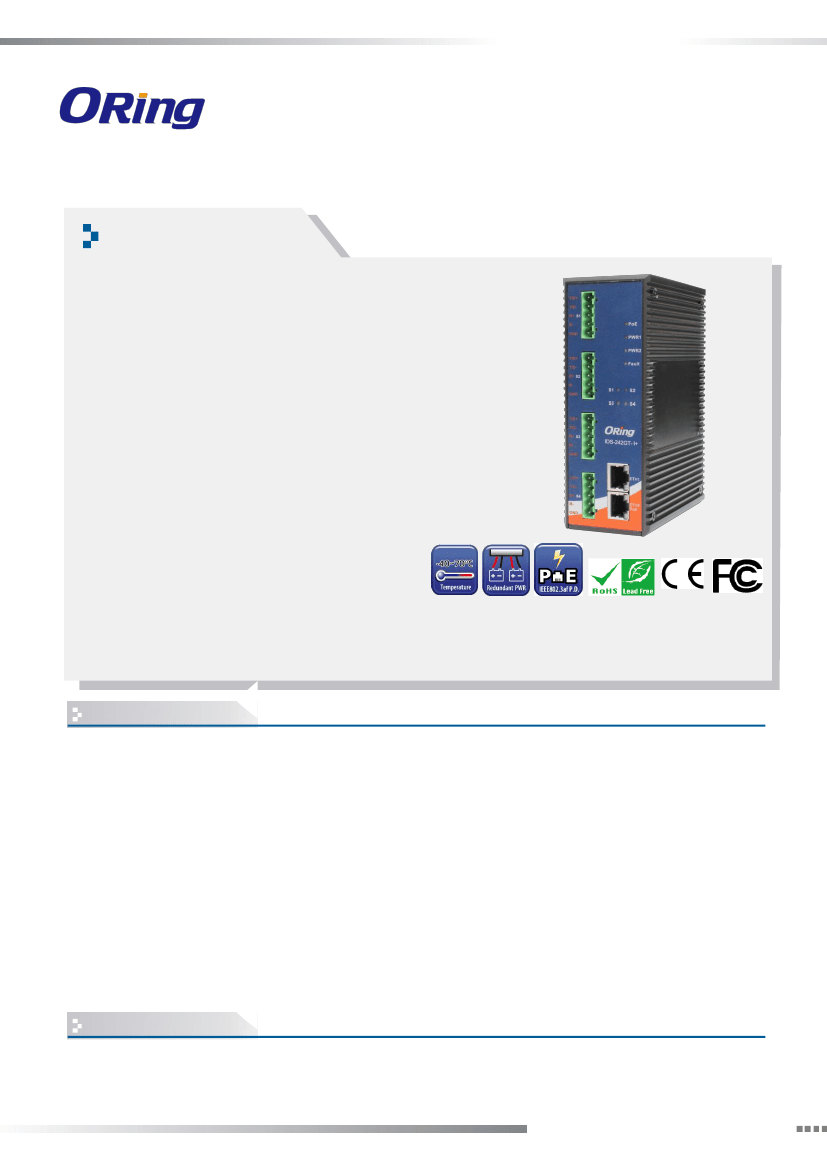

IDS-242GT-I+
Industrial 4-port secure serial to Ethernet device
server with 4xRS-422/485(2KV isolation) and
2x10/100/1000Base-T(X), 1-port PoE P.D.
Features
Operating Modes: Virtual Com, Serial Tunnel, TCP Server,
TCP Client, UDP, Modbus Gateway
Support Modbus Gateway : Modbus TCP, Modbus RTU,
Modbus ASCII
Support 2 Gigabit Ethernet ports for high speed data
transmission
1KV isolation for PoE P.D. port
2KV isolation for serial
port
Supports 9K Bytes Jumbo Frame
Event Warning by Syslog, SNMP trap, Relay and Beeper
Configurable by Web-based and Windows utility (DS-Tool)
Various Windows O.S. supported:
Windows NT/2000/ XP/ 2003/VISTA(32/64bit)/ Windows 7(32/64bit)
Introduction
IDS-242GT-I+ is an innovative secure 4 port RS-422/485 to 2 ports Gigabit Ethernet secure device server with standard
features of device server, such like TCP/IP interface and versatile operation modes: Virtual Com, Serial Tunnel, TCP Server,
TCP Client, and UDP. In addition, the Windows untility, DS-Tool, could configure multiple devices and set up the mappings
of Virtual Com.
IDS-242GT-I+ supports RS-422/485 and provides dual redundant power inputs, 12~48 VDC, on terminal block to
guarantee a non-stop operation. In addition, IDS-242GT-I+ also provides P.D. feature at ETH2 port which is fully compliant
with IEEE802.3af PoE P.D. specification to save the layout cost of power line. With wide operating temperature, -40~70
o
C,
and rugged IP-30 housing design, IDS-242GT-I+ series could operate in the harsh industrial environment. Therefore,
IDS-242GT-I+ is the best solution to the high demand of secure serial to Ethernet critical data communication.
Practical Operation
* All specifications are subject to change without notice.
Designed for Rugged Excellence

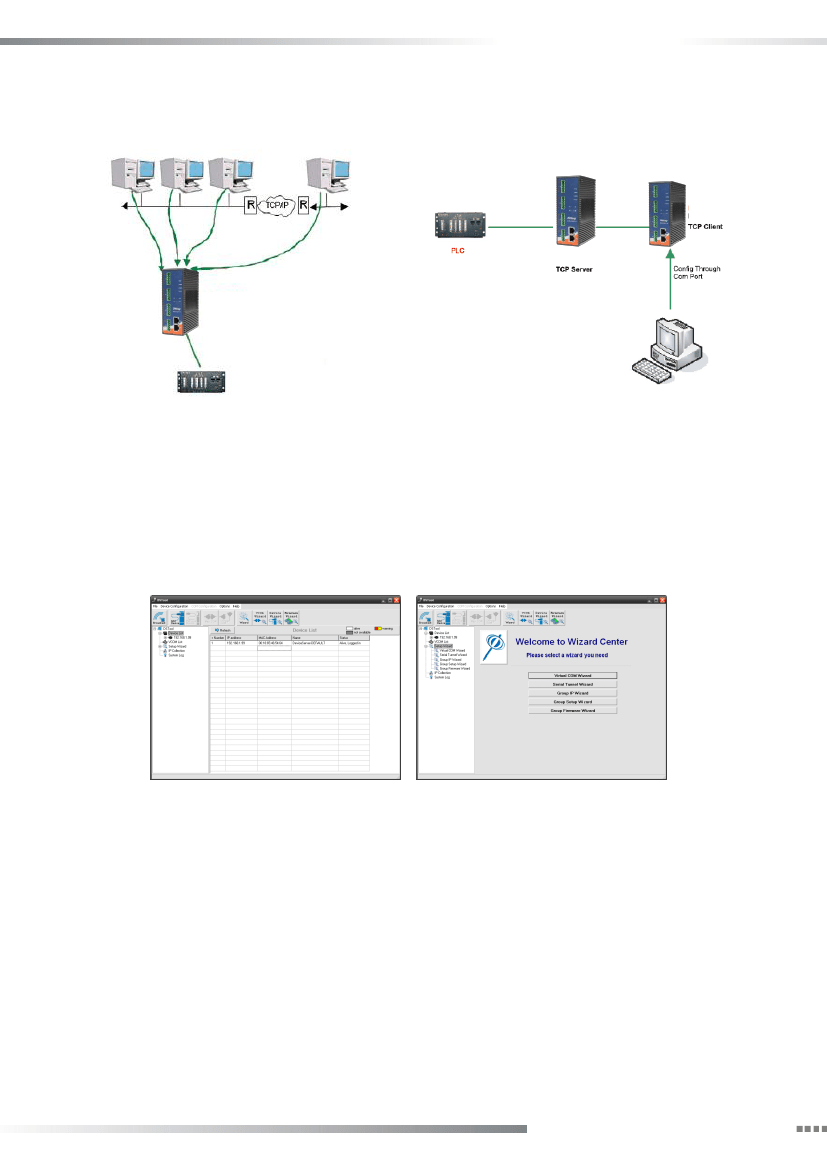

In practical operation of serial device servers, Windows utility (DS-Tool) is supported. This utility is very helpful for you
to manage and monitor all of industrial device servers on the industrial network.
IDS-242GT-I+
RS-422/485
IDS-242GT-I+
RS-422/485
IDS-242GT-I+
RS-422/485
Multiple Host PCs
TCP Client/Server Modes
DS-Tool (Windows Utility): Monitoring and Configuration
interface
* All specifications are subject to change without notice.
Designed for Rugged Excellence

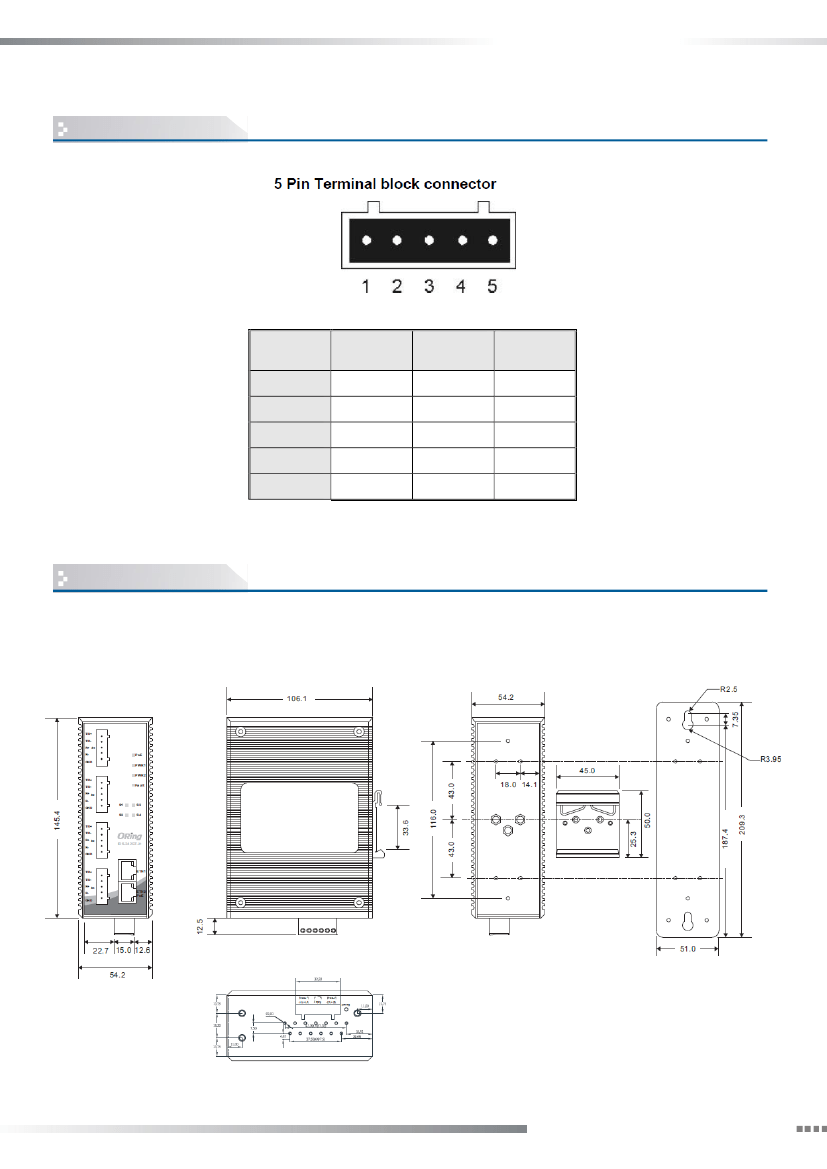

Pin Definition
Pin #
1
2
3
4
5
RS-422
TXD +
TXD -
RXD +
RXD -
GND
RS-485
( 4 wire )
TXD +
TXD -
RXD +
RXD -
GND
RS-485
( 2 wire )
DATA +
DATA -
GND
Dimension
Unit: mm
* All specifications are subject to change without notice.
Designed for Rugged Excellence
Specifications
ORing Device Server Model
Physical Ports
10/100/1000 Base-T(X) Ports in RJ45
Auto MDI/MDIX
Present at ETH2
Fully compliant with IEEE 802.3af Power Device specification
PoE P.D. port
Over load & short circuit protection
Isolation Voltage: 1000 VDC min.
Isolation Resistance : 10
8
ohms min
Serial Ports
Connector
Operation Mode
Serial Baud Rate
Data Bits
Parity
Stop Bits
RS-422
RS-485 (4-wire)
RS-485 (2-wire)
Isolating
Flow Control
Network Protocol
Protocol
Jumbo frame
LED indicators
Power indicator
10/100/1000 RJ45 port indicator
Serial TX / RX LEDs:
Power
Redundant Input power
Power consumption (Typ.)
Overload current protection
Reverse polarity protection
Physical Characteristic
Enclosure
Dimension (W x D x H)
Weight (g)
Environmental
Storage Temperature
Operating Temperature
Operating Humidity
Regulatory approvals
EMI
FCC Part 15 B, CISPR (EN55032) class A
EN61000-4-2 (ESD)
EMS
EN61000-4-3 (RS)
EN61000-4-4 (EFT)
EN61000-4-5 (Surge)
-40 to 85
o
C (-40 to 185
o
F)
-40 to 70
o
C (-40 to 158
o
F)
5% to 95% Non-condensing
IP-30
54.2(W)x106.1(D)x145.4(H) mm (2.13x4.18x5.72 inch.)
705g
Dual DC inputs. 12-48VDC on 6-pin terminal block
6.96 W
Present
Present on terminal block
PWR 1(2) / Ready:
Green On: Power is on and functioning Normally.
Top Green for port Link at 1000Mbps, Amber for port Link at 100Mbps, off for port Link at 10Mbps
Bottom Green for port Link/Act
Red: Serial port is receiving data
Green: Serial port is transmitting data
ICMP, IP, TCP, UDP, DHCP, BOOTP,DNS, SNMP V1/V2c, HTTPS
Up to 9.6K Bytes
5 pin terminal block x 4
RS-422/485
110 bps to 921.6 Kbps
7, 8
odd, even, none, mark, space
1, 1.5, 2
TxD+, TxD-, RxD+, RxD-,GND
TxD+, TxD-, RxD+, RxD-,GND
DATA+, DATA-, GND
2KV
XON/XOFF, RTS/CTS, DTR/DSR
2
IDS-242GT-I+
* All specifications are subject to change without notice.
Designed for Rugged Excellence
EN61000-4-6 (CS)
EN61000-4-8
EN61000-4-11
Shock
Free Fall
Vibration
Safety
Warranty
IEC60068-2-27
IEC60068-2-32
IEC60068-2-6
EN60950-1
5 years
Ordering Information
IDS-2
A B CC-D E
Code
Definition
Serial Port Type
Serial Port
Number
Ethernet
Port Number
Ethernet port Type
Serial Port
Identification
- I:
Serial port are
PoE Identification
- 1: RS-232
Option
- 2: RS-422/485
- 3: RS-232/422/485
Model Name
Available
Model
IDS-242GT-I+
Description
- 4:
4 ports
- 2:
2 ports
- GT:
Gigabit Ethernet
isolated
RS-422/485
- "+": PoE P.D. present
at ETH2
Industrial 4-port secure serial to Ethernet device server with 4x RS-422/485(2KV isolation) and
2x10/100/1000Base-T(X), 1-port PoE P.D.
Packing List
O
IDS-242GT-I+ x 1
DIN-rail Kit x 1
CD x 1
Wall-mount Kit x 1
Quick Installation Guide
x
1
Optional Accessories
O
DR-45 series : 45 Watts power supply
DR-120 series : 120 Watts power supply
DR-75 series : 75 Watts power supply
* All specifications are subject to change without notice.
