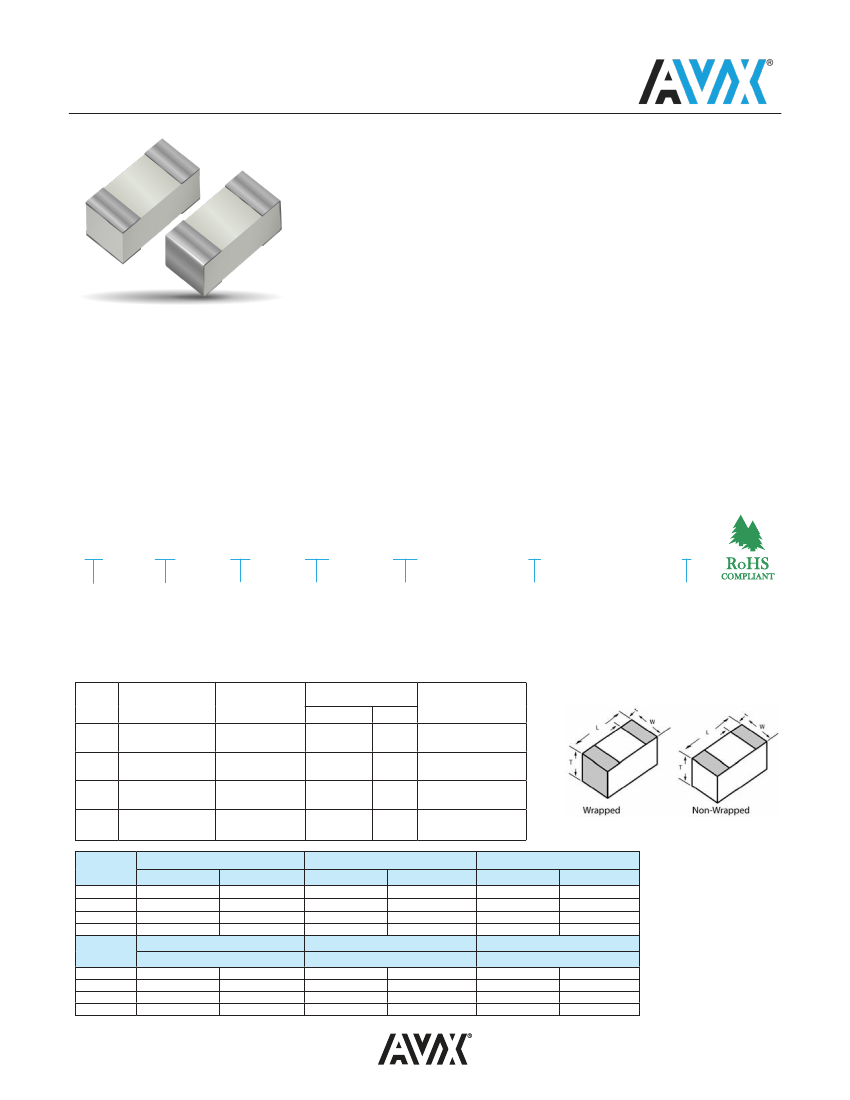

λ Bridge Thermal Conductor
A\/X’s new λ-Bridge Thermal Conductor is manufactured with the highest
quality materials for reliable and repeatable performance providing a cost
effective thermal management solution. These devices are constructed
with Aluminum Nitride (AlN) or Beryllium Oxide (BeO) and are available in
standard EIA form factors.
λ-Bridge provides the designer with the ability to manage thermal conditions
by directing heat to a thermal ground plane, heat sink or any other specific
thermal point of interest. The inherently low capacitance makes this device
virtually transparent at RF/microwave frequencies. This device has the added
benefit of offering additional layers of protection to adjacent components from
hot spot thermal loads.
λ-Bridge provides the benefit of increased overall circuit reliability. A\/X’s λ-Bridge is manufactured using one-piece
construction, providing a RoHS compliant SMT package that is fully compatible with high speed automated pick-and-
place processing. It is available in 0302, 0402, 0603 and 0805 EIA case sizes. Custom configurations are also available.
FEATURES
• High Thermal Conductivity
• Low Thermal Resistance
• Low Capacitance
• Increases Circuit Reliability
• RoHS Compliant
• More efficient thermal
management
LB
03
A
APPLICATIONS
• GaN Power Amplifiers
• High RF Power Amplifiers
• Filters
• Synthesizers
• Industrial Computers
• Switch Mode Power
Supplies
• Pin & Laser Diodes
25
Thickness
(mils)
• Between active device and adjacent ground planes
• Specific contact pad to case
• Contact pad to contact pad
• Direct component contact to via pad or trace
• Edges fully metalized
FUNCTIONAL APPLICATIONS
HOW TO ORDER
λ-Bridge
Case Size
OS = 0302
02 = 0402
03 = 0603
05 = 0805
W
Style
H
Termination
T
Packaging
Substrate
A = AIN
B = BeO
W = Edge Wrap
E = No Wrap
Y = Silver Platinum,
non-magnetic Termination
S = Silver over Magnetic
Termination
Consult factory for other termination options
e.g., tin plate and solder plate
T = 1000pcs., 7" reel
T\500 = 500pcs., 7" reel
C = Matrix Tray
Size
(EIA)
0302
0402
0603
0805
Length
(L)
0.77 ± 0.051
(0.030 ± 0.002)
1.02 ± 0.051
(0.040 ± 0.002)
0.52 ± 0.051
(0.060 ± 0.002)
2.03 ± 0.051
(0.080 ±.002)
Width
(W)
0.51 ± 0.051
(0.020 ± 0.002)
0.51 ± 0.051
(0.020 ± 0.002)
0.76 ± 0.051
(0.030 ± 0.002)
1.27 ± 0.051
(0.050 ± 0.002)
Standard Thickness
(T, mils)
T1
T2
20
20
25
40
15
15
20
25
Termination
(t)
0.25 ± 0.051
(0.010 ± 0.002)
0.25 ± 0.051
(0.010 ± 0.002)
0.38 ± 0.051
(0.015 ± 0.002)
0.51 ± 0.051
(0.020 ± 0.002)
Capacitance Value (pF)*
Thickness T1 Thickness T2
0.08
0.07
0.06
0.05
0.08
0.06
0.13
0.08
Capacitance Value (pF)*
Thickness T1 Thickness T2
0.07
0.06
0.05
0.04
0.06
0.05
0.10
0.07
Thermal Resistance (
°
C/W)
AlN
Case Size
Thickness T1 Thickness T2
0302
19
24
0402
25
32
0603
20
25
0805
10
16
Thermal Resistance (
°
C/W)
BeO
Case Size
Thickness T1 Thickness T2
0302
12
15
0402
16
21
0603
13
16
0805
7
11
Thermal Conductivity (mW/
°
C)
Thickness T1 Thickness T2
53
41
40
30
50
40
100
60
Thermal Conductivity (mW/
°
C)
Thickness T1 Thickness T2
81
63
61
46
76
61
153
92
101718
91
