VOIDLESS-HERMETICALLY-SEALED
STANDARD RECOVERY GLASS RECTIFIERS
Qualified per MIL-PRF-19500/228
DEVICES
LEVELS
1N3611 thru 1N3613
*1N3614 and 1N3957
DESCRIPTION
JAN, JANTX
* JAN, TX, TXV
“A” Package
This “standard recovery” rectifier diode series is military qualified to MIL-PRF-19500/228
and is ideal for high-reliability applications where a failure cannot be tolerated. These
industry-recognized 1.0 Amp rated rectifiers for working peak reverse voltages from 200 to
1000 volts are hermetically sealed with voidless-glass construction using an internal
“Category I” metallurgical bond. These devices are similar in ratings to the 1N5614 thru
1N5622 series where surface mount MELF package configurations are available by adding a
“US” suffix (see separate data sheet for 1N5614US thru 1N5622US). Microsemi also offers
numerous other rectifier products to meet higher and lower current ratings with various
recovery time speed requirements including fast and ultrafast device types in both through-
hole and surface mount packages.
IMPORTANT:
For the most current data, consult
MICROSEMI’s
website:
http://www.microsemi.com
FEATURES
Popular JEDEC registered 1N3611 thru 1N3614 and 1N3597 series
Voidless hermetically sealed glass package
Internal “Category
I”
Metallurgical bonds
Working Peak Reverse Voltage 200 to 1000 Volts.
JAN, JANTX, and JANTXV available per MIL-PRF-19500/286 (for JANS, see
1N5614-5622 series)
Surface mount equivalents also available in a square end-cap MELF configuration with
“US” suffix (also see 1N5614US thru 1N5622US)
T4-LDS-0190 Rev. 1 (110047)
Page 1 of 5
TECHNICAL DATA SHEET
6 Lake Street, Lawrence, MA 01841
1-800-446-1158 / (978) 620-2600 / Fax: (978) 689-0803
Website: http://www.microsemi.com
Gort Road Business Park, Ennis, Co. Clare, Ireland
Tel: +353 (0) 65 6840044 Fax: +353 (0) 65 6822298
APPLICATIONS / BENEFITS
Standard recovery 1 Amp rectifiers 200 to 1000 V
Military and other high-reliability applications
General rectifier applications including bridges, half-bridges, catch diodes, etc.
High forward surge current capability
Extremely robust construction
Low thermal resistance
Controlled avalanche with peak reverse power capability
Inherently radiation hard as described in Microsemi MicroNote 050
MAXIMUM RATINGS
Junction & Storage Temperature: -65
o
C to +175
o
C
Thermal Resistance: 38
o
C/W junction to lead at 3/8 inch (10 mm) lead length from body
Average Rectified Forward Current (I
O
): 1.0 Amps @ T
A
= 100ºC and 0.30 Amps at 150ºC
Forward Surge Current: 30 Amps @ 8.3 ms half-sine
Solder Temperatures: 260ºC for 10 s (maximum)
MECHANICAL AND PACKAGING
CASE: Hermetically sealed voidless hard glass with Tungsten slugs
TERMINATIONS: Axial leads are copper with Tin/Lead (Sn/Pb) finish
MARKING: Body paint and part number, etc.
POLARITY: Cathode band
TAPE & REEL option: Standard per EIA-296
WEIGHT: 500 mg (approx)
See package dimensions on last page
T4-LDS-0190 Rev. 1 (110047)
Page 2 of 5
TECHNICAL DATA SHEET
6 Lake Street, Lawrence, MA 01841
1-800-446-1158 / (978) 620-2600 / Fax: (978) 689-0803
Website: http://www.microsemi.com
Gort Road Business Park, Ennis, Co. Clare, Ireland
Tel: +353 (0) 65 6840044 Fax: +353 (0) 65 6822298
ELECTRICAL CHARACTERISTICS @ 30oC Case Temperature
MINIMUM
WORKING
BREAKDOWN
PEAK
VOLTAGE
REVERSE
VOLTAGE
V
RWM
V
BR
@ 100μA
VOLTS
JAN1N3611
JAN1N3612
JAN1N3613
JAN1N3614
JAN1N3957
200
400
600
800
1000
VOLTS
240
480
720
920
1150
AVERAGE
RECTIFIED
CURRENT
(NOTE 2)
I
O
AMPS
100 C
150
o
C
1.0
0.30
1.0
0.30
1.0
0.30
1.0
0.30
1.0
0.30
o
TYPE
MAXIMUM
FORWARD
VOLTAGE
V
F
@ 1 A
(PULSED)
VOLTS
1.1
1.1
1.1
1.1
1.1
MAXIMUM
REVERSE
CURRENT
I
R
@ V
RWM
μA
25 C
1.0
1.0
1.0
1.0
1.0
o
MAXIMUM
SURGE
CURRENT
(NOTE1)
I
FSM
AMPS
150 C
300
300
300
300
300
o
30
30
30
30
30
NOTE 1:
T
A
= 25
o
C, I
O
= 1.0 A, 10 surges of 8.3 ms @ 1 minute intervals
NOTE 2:
Linearly derate at 13.3 mA/ºC between T
A
=100ºC and 175ºC
SYMBOLS & DEFINITIONS
Symbol
V
BR
V
RWM
V
F
I
R
Definition
Minimum Breakdown Voltage: The minimum voltage the device will exhibit at a specified current.
Working Peak Reverse Voltage: The maximum peak voltage that can be applied over the operating
temperature range.
Maximum Forward Voltage: The maximum forward voltage the device will exhibit at a specified
current.
Maximum Leakage Current: The maximum leakage current that will flow at the specified voltage
and temperature.
T4-LDS-0190 Rev. 1 (110047)
Page 3 of 5
TECH
HNICA DA
AL ATA SH
HEET
6 La Street, Lawren MA 01841
ake
nce,
1-80
00-446-1158 / (978 620-2600 / Fax: (978) 689-0803
8)
:
Web
bsite: http://www.microsemi.com
Gort Road Business P
t
Park, Ennis, Co. C
Clare, Ireland
Tel: +353 (0) 65 6840
0044 Fax: +353 ( 65 6822298
(0)

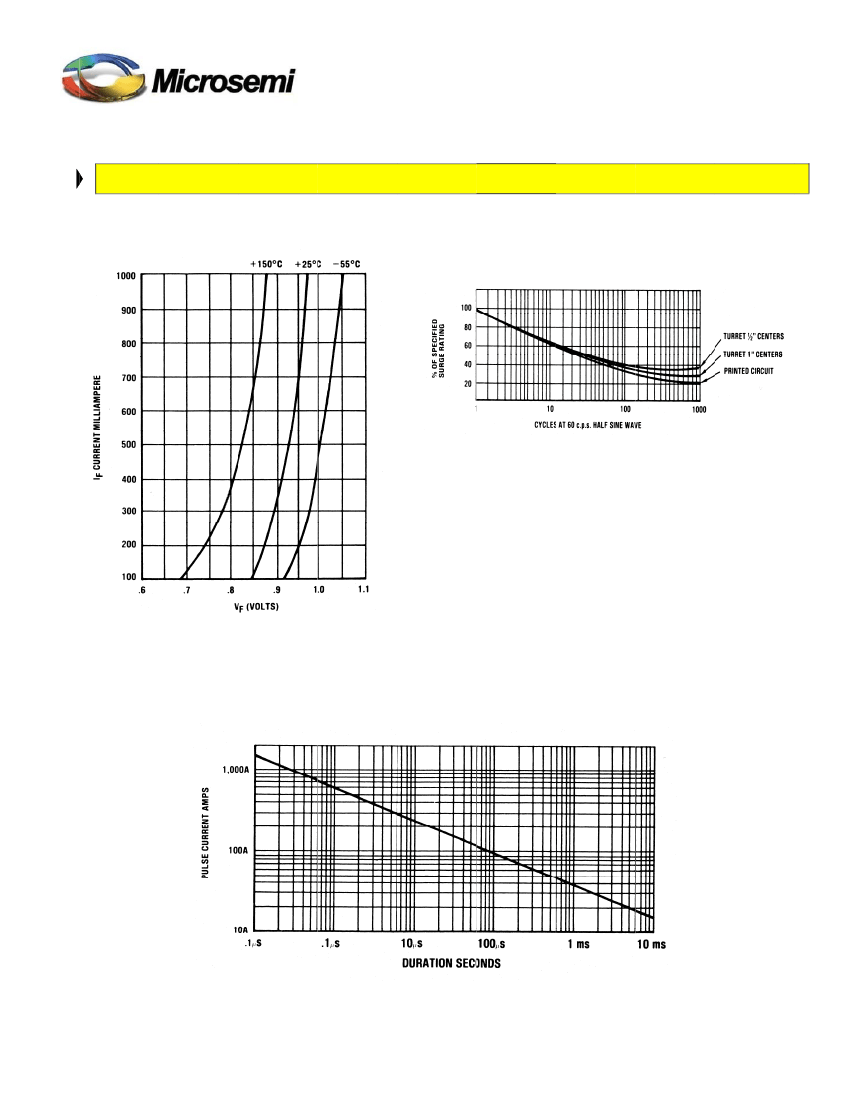

GRAPHS
FIGURE 1
TYPICAL FO
T
ORWARD CO
ONDUCTAN
NCE CURVE
FIGURE 2
AL
LLOWABLE PEAK SURG vs DURA
E
GE
ATION
FIGURE 3
SUR
RGE DURAT
TION vs PUL CURREN
LSE
NT
Square Pul Current vs Duration for Non-Repetit Pulse
lse
s
r
tive
T4-L
LDS-0190 Rev. 1 (110047)
.
Page 4 of 5
TECHNICAL DATA SHEET
6 Lake Street, Lawrence, MA 01841
1-800-446-1158 / (978) 620-2600 / Fax: (978) 689-0803
Website: http://www.microsemi.com
Gort Road Business Park, Ennis, Co. Clare, Ireland
Tel: +353 (0) 65 6840044 Fax: +353 (0) 65 6822298

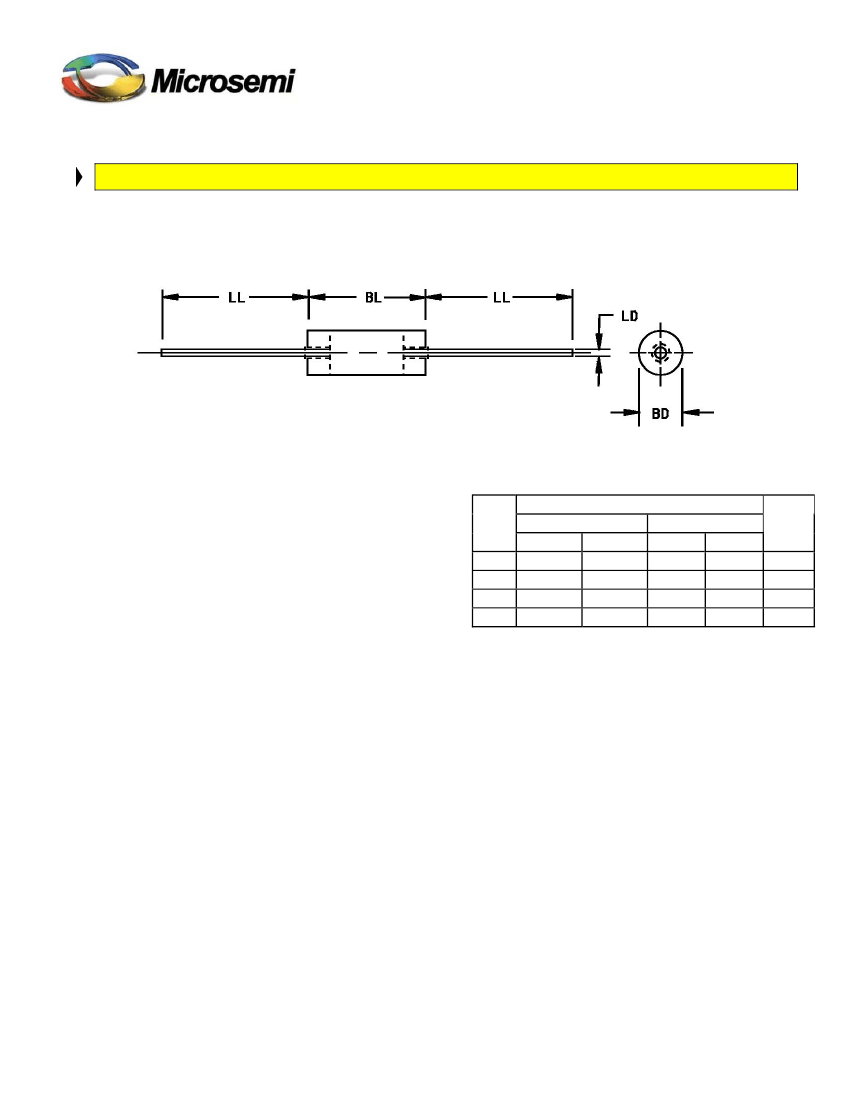

PACKAGE DIMENSIONS
NOTE:
1. Dimensions are in inches.
2. Millimeters are given for general information only.
3. Dimension BL shall include the entire body including slugs
and sections of the lead over which the diameter is
uncontrolled. This uncontrolled area is defined as the zone
between the edge of the diode body and extending .050 inch.
(1.27 mm) onto the leads.
Ltr
BD
BL
LD
LL
Dimensions
Inches
Millimeters
Min
Max
Min
Max
.060
.110
1.52
2.79
.125
.205
3.18
5.21
.025
.034
0.64
0.86
.600
1.500
15.24
38.10
Notes
4
3
3
T4-LDS-0190 Rev. 1 (110047)
Page 5 of 5
