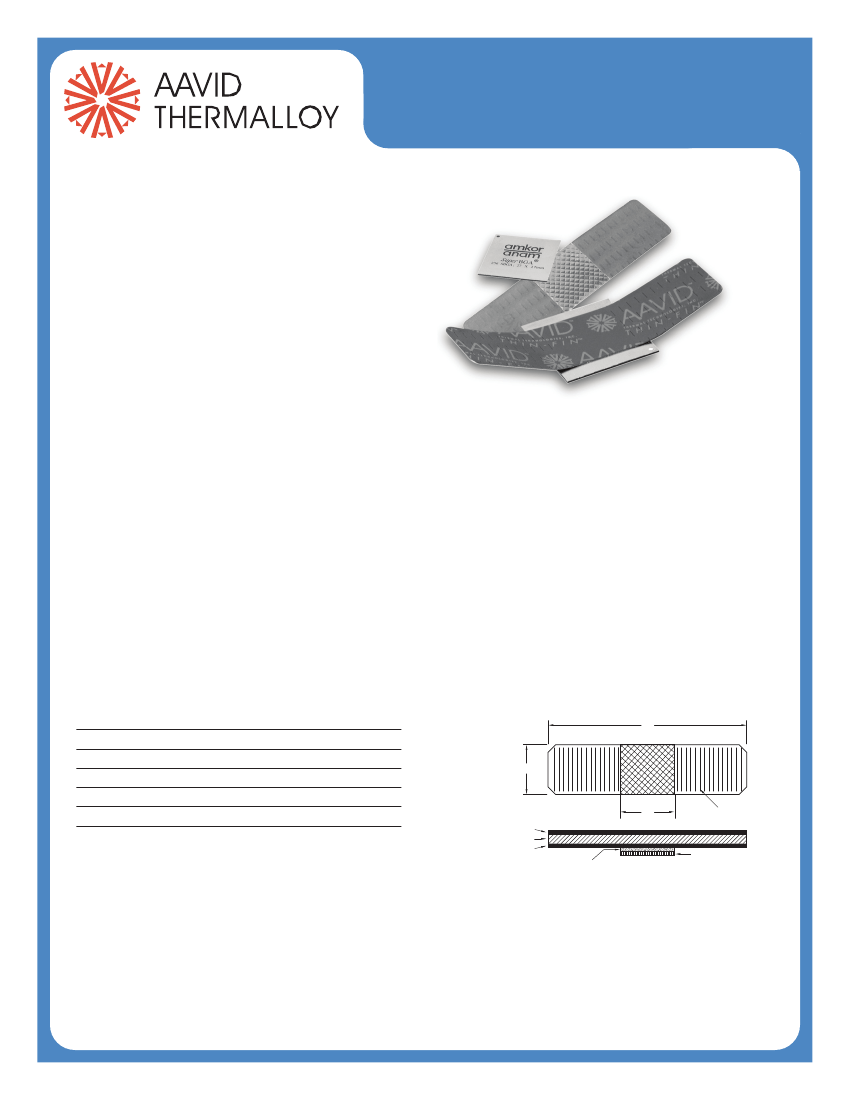

Thin-Fin™ Heat Sinks
For computers and custom applications
LOW PROFILE COPPER HEAT SINKS
IDEAL FOR PCI AND AGP CHIP SETS
When space is at a premium, Aavid’s Thin-fin heat sinks
reduce package case temperature by as much as 20ºC.
These flexible, copper spreaders attach to the electronic
package using pre-applied adhesive, providing an off-the-
shelf solution for PCI and AGP chip sets. A laminated
dielectric coating prevents shorting, making the Thin-Fin
ideal for BGA devices and multimedia applications.
FEATURES:
• Offer significant cooling with limited headroom
• Pre-applied adhesive for rapid assembly
• Dielectric coating prevents shorting
• Fits many IC package styles
APPLICATIONS:
• Graphics Processors
• FPGA’s
• Embedded Processors
• DSP’s
• Any device using a BGA, PGA,
or a QFP package
ORDERING INFORMATION:
Part Number
341600F00000G
341700F00000G
341800F00000G
341900F00000G*
342000F00000G
342100F00000G
“A”
50.8 (2.00)
76.2 (3.00)
76.2 (3.00)
76.2 (3.00)
101.6 (4.00)
101.6 (4.00)
“B”
12.7 (0.50)
12.7 (0.50)
19.1 (0.75)
25.4 (1.00)
25.4 (1.00)
38.1 (1.50)
“C”
12.7 (0.50)
12.7 (0.50)
19.1 (0.75)
25.4 (1.00)
25.4 (1.00)
38.1 (1.50)
0.0015 in. Black PVF
0.007 in. RA Copper
0.0015 in. Black PVF
B
A
C
Folding Scores
* Recommended for use in cooling microprocessor chip sets, such as PCI and AGP.
Notes: Dimensions are in mm (inches) Contact our Applications Engineering Department
for custom configurations
Release Liner
0.002 in. Thermattach PSA
FOR MORE INFORMATION, VISIT OUR WEB SITE:
WWW.AAVIDTHERMALLOY.COM
TEL:
(603) 224-9988
Thin-Fin™ Heat Sinks
For computers and custom applications
PRODUCT SPECIFICATIONS:
Properties
Color
Total thickness (including adhesive)
Weight
Insulator
Adhesive
Dielectric Strength
Value
Black
0.33 mm (0.013 inches)
0.17 g/cm
2
(0.039 oz/in
2
)
Polyvinylfluoride
Silicone PSA
>1600 Volts/mil (ASTM D149)
Adhesion Performance
Lap Shear (at room temperature)
Lap Shear (at 100º C)
90º Peel (at room temperature)
90º Peel (at 100º C)
414 kPa (960 oz/in
2
)
23 kPa (53 oz/in
2
)
441 g/cm (40 oz/in)
220 g/cm (20 oz/in)
Thin-fin heat sinks have passed the following tests: heat aging, high temperature and humidity,
temperature cycling, and temperature shock. Thin-fins meet UL 94V-0 flammability specification.

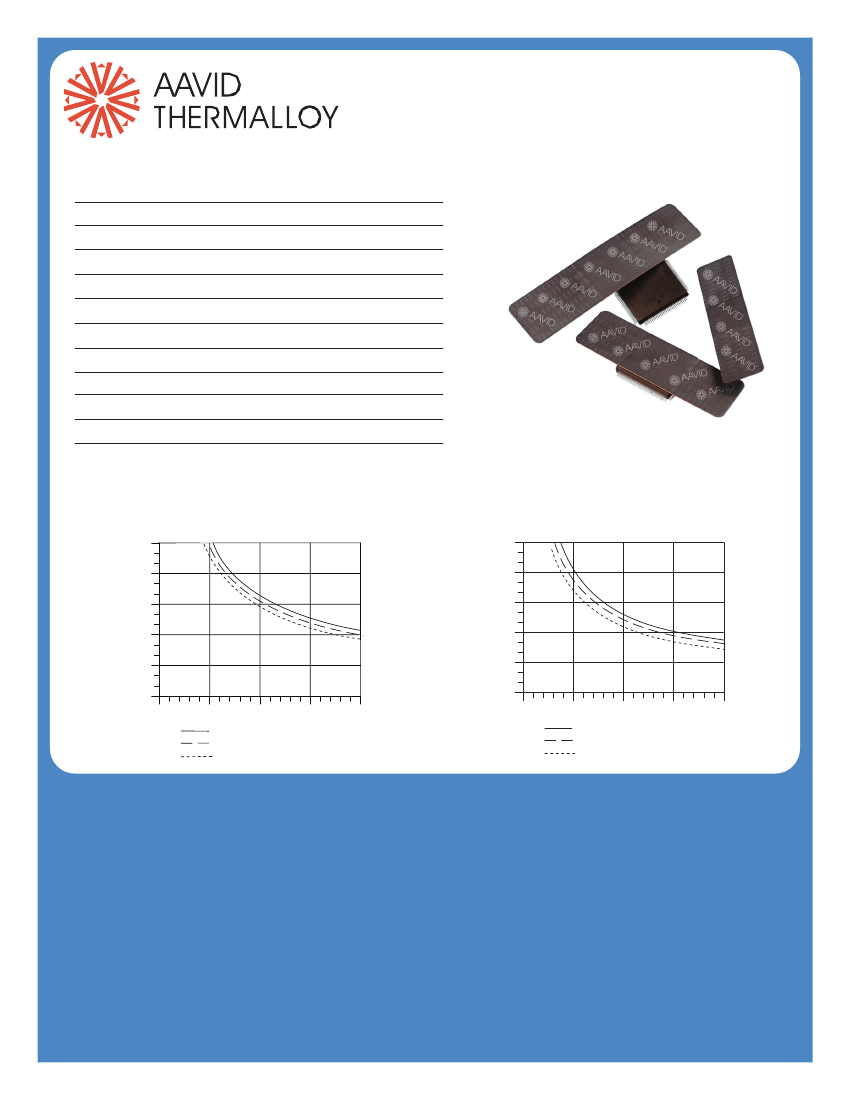

THERMAL PERFORMANCE:
25
25
Thermal Resistance From
Case to Ambient—°C/Watt
Thermal Resistance From
Case to Ambient—°C/Watt
20
15
10
5
0
0
3416
3417
3418
50
100
150
200
20
15
10
5
0
0
3419
3420
3421
50
100
150
200
Airflow (ft/min)
Airflow (ft/min)
