2GHz + 12dBm input power per tone, 1MHz tone spacing
65
dB
dB
dB
dBm
3GHz
4GHz
5GHz
1GHz + 12dBm input power per tone, 1MHz tone spacing
dB
dB
dB
dB
dB
dB
3GHz
4GHz
5GHz
0.3GHz
1GHz
2GHz
dB
dB
dB
dB
dB
dB
3GHz
4GHz
5GHz
0.3GHz
1GHz
2GHz
60
dB
dB
dB
0.3GHz
1GHz
2GHz
Unit
Typ
Max
Condition
Electrical Specifications, TA = 25°C, V
CRTL
= 0/+5 V
DC
,
V
DD
= +5V
DC
, 50Ω system.
Power Supply
Supply Current (I
DD
)
Control Current (I
CTL
, I
EN
)
Low Control Voltage (V
CTL
)
High Control Voltage (V
CTL
)
0
1.1
140
0.5
200
5
0.63
VDD
µA
µA
V
1.8V Logic compatible
V
V
DD
= 5.0V
V
CTL
= 5.0V
Notes: S-parameters have the PCB de-embedded. RF ports need to be at 0V DC. If > 0.5V is present on RF lines, blocking caps are
required.
RF Micro Devices Inc. 7628 Thorndike Road, Greensboro, NC 27409-9421
For sales or technical support, contact RFMD at +1.336.678.5570 or
customerservice@rfmd.com.
DS150403
The information in this publication is believed to be accurate. However, no responsibility is assumed by RF Micro Devices, Inc. ("RFMD") for its use, nor for any infringement of patents or other rights of
third parties resulting from its use. No license is granted by implication or otherwise under any patent or patent rights of RFMD. RFMD reserves the right to change component circuitry, recommended
application circuitry and specifications at any time without prior notice.
3 of 16
RFSW6024
Maximum Operating Power at 85°C, CW, > 300MHz
Input
RFC, RF1/2
RFC
RF1/2
RF1/2 (Simultaneous)
State
On
Both Off
Off
Both Off
VEN
Low
High
Low or High
High
Power
33dBm
1
Theta-J (°C/W)
97
2
31.3dBm
26dBm
27.8dBm
3
N/A
100
65
Notes:
1.
2.
3.
4.
Assuming load VSWR
< 3:1,
for high VSWR loads this value reduces to 30.5dBm
Applies to resistive loss from insertion loss not including mismatch loss
Total power in both loads being driving simultaneously
For < 300MHz, it is recommended to operate at least 4dB below 1dB compression point
Truth Tables
Control Input
VCTL
0
1
0
1
Signal Path State
RFC-RF1
Off
On
Off
Off
VEN
0
0
1
1
RFC-RF2
On
Off
Off
Off
“0” = 0V to 0.63V
“1” = 1.1V to V
DD
V
DD
= 2.5 to 5.5V, must be applied for all valid states
RF Micro Devices Inc. 7628 Thorndike Road, Greensboro, NC 27409-9421
For sales or technical support, contact RFMD at +1.336.678.5570 or
customerservice@rfmd.com.
DS150403
The information in this publication is believed to be accurate. However, no responsibility is assumed by RF Micro Devices, Inc. ("RFMD") for its use, nor for any infringement of patents or other rights of
third parties resulting from its use. No license is granted by implication or otherwise under any patent or patent rights of RFMD. RFMD reserves the right to change component circuitry, recommended
application circuitry and specifications at any time without prior notice.
4 of 16
RFSW6024

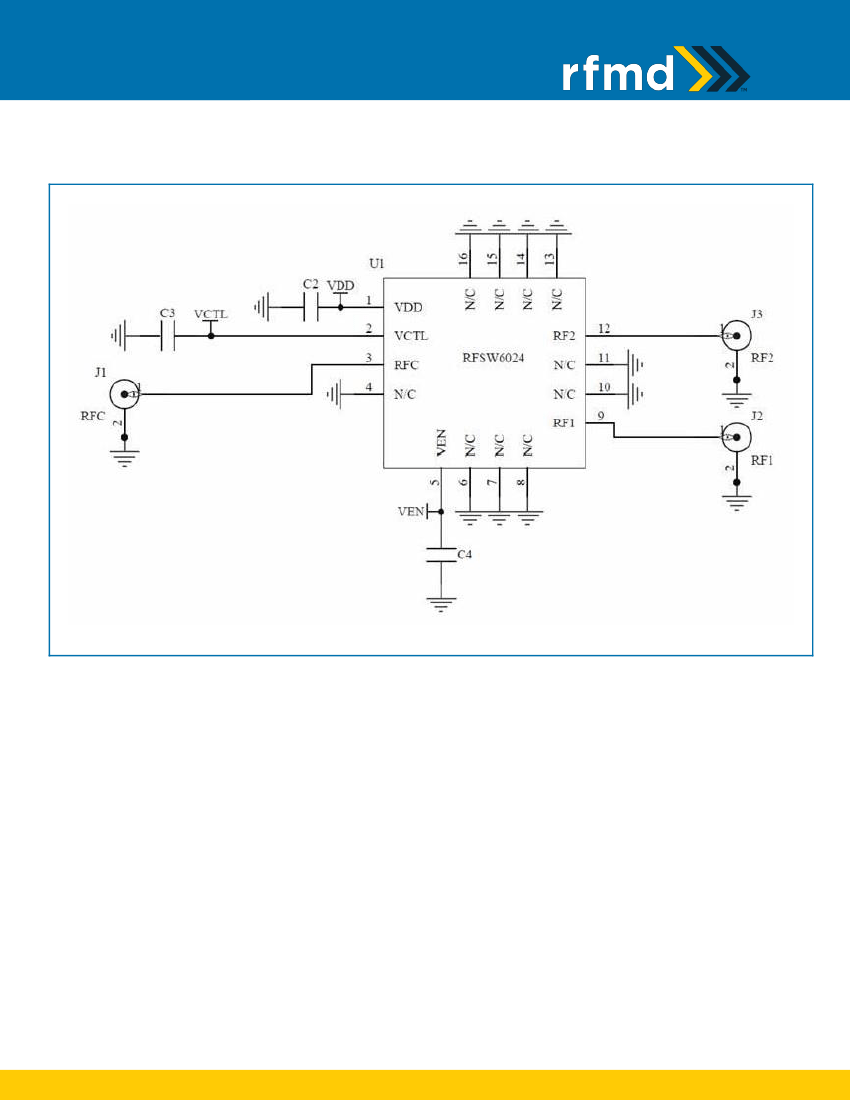

Application Schematic
