TEC-30-36-127: DescriptionThermoelectric ModulePeltier, Thermoelectric Cooler, 30x30mm, 3.6mm Height, 3.0A; CategoryThermal management products The thermoelectric The thermoelectric module; File Size2MB，22 Pages; ManufacturerWakefield-Vette; Websitehttp://www.wakefield-vette.com/; Environmental Compliance

Download Datasheet Parametric Compare View All

TEC-30-36-127 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	TEC-30-36-127	-	-	View	Buy Now

TEC-30-36-127 Overview

Thermoelectric ModulePeltier, Thermoelectric Cooler, 30x30mm, 3.6mm Height, 3.0A

TEC-30-36-127 Parametric

Parameter Name	Attribute value
Maker	Wakefield-Vette
Product Category	Thermoelectric module
Shipping restrictions	Mouser does not currently sell this product.
type	Thermoelectric Cooler
Qmax	29.8 W
ΔTmax	+ 75 C
Maximum current	3 A
maximum voltage	16.4 V
length	30 mm
width	30 mm
series	TEC
Maximum operating temperature	+ 90 C
Factory packaging quantity	100

Preview

Download Datasheet

View All

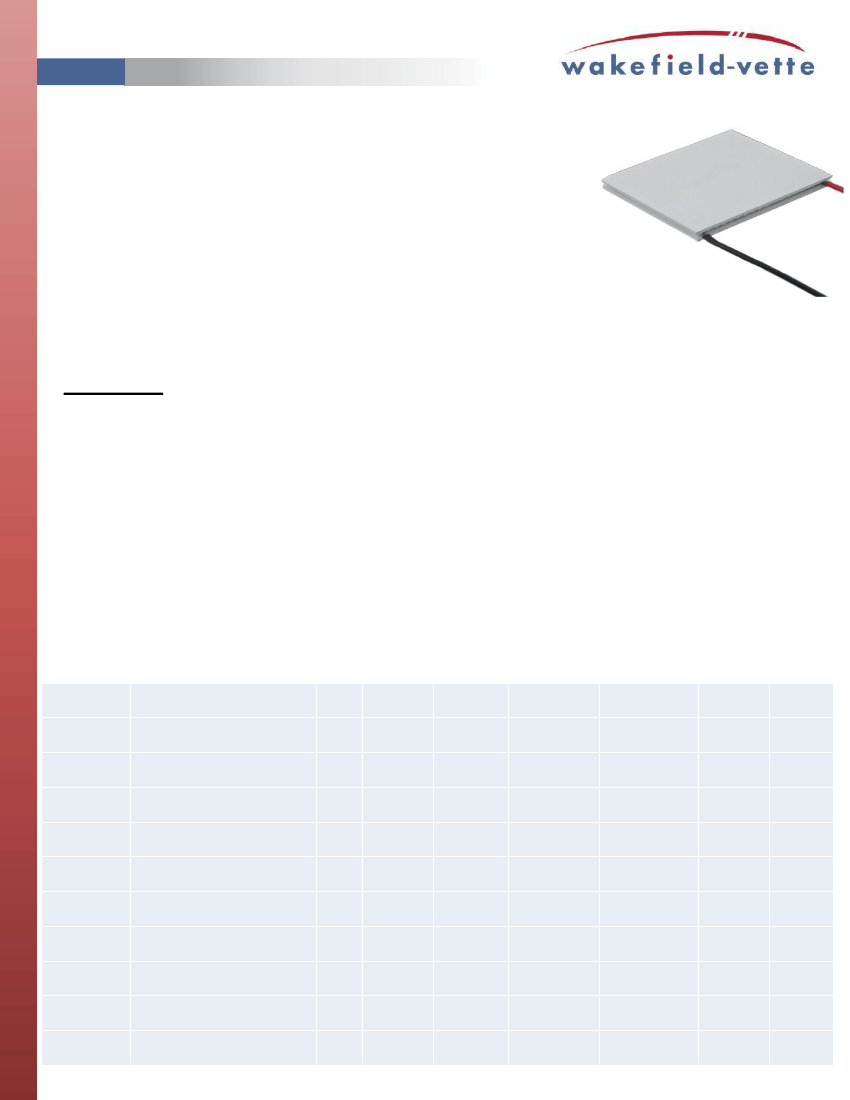

Thermoelectric Cooler Performance Specifications

TEC Series

Wakefield-Vette’s

Peltier, thermoelectric

coolers

can meet the requirement of higher current

and large cooling. It is often applied to

experimental, scientific and biomedical instruments,

laboratory equipment, industry and electrical

equipment and consumables. The ambient

temperature can arrive 100C, long-term working

temperature is recommended to be below 90C.

Features:

• All products are RoHS and REACH compliant, SGS ISO9001 verified

• Thermoelectric module material are UL certification

• Standard Wire is 150mm

• Thermoelectric module moisture protection standard is sealed by white

RTV silicone, but also support select other moisture protection style,

Such as translucent silicone, black epoxy.

• Thermoelectric module flatness tolerance support select 0.2mm,

0.13mm, 0.1mm.

WKV Part

Number

Description

Current Q max (W) V max (V) @

∆T max (°C)

max (A) @ 27°C

27°C

2.5

3.9

8.5

3.0

3.9

6.0

8.5

21.4

33.4

25.7

18.7

28.7

51.4

16.8

15.4

8.6

15.4

3.75

15.4

# of Couples

127

Outline

(L/W/)

30x30

40x40

30x30

40x40

20x20

30x30

Height

(mm)

3.2

4.7

3.3

3.6

4.7

3.8

3.3

TEC-30-40-127 PELTIER TEC 30X30 4MM 2.5A

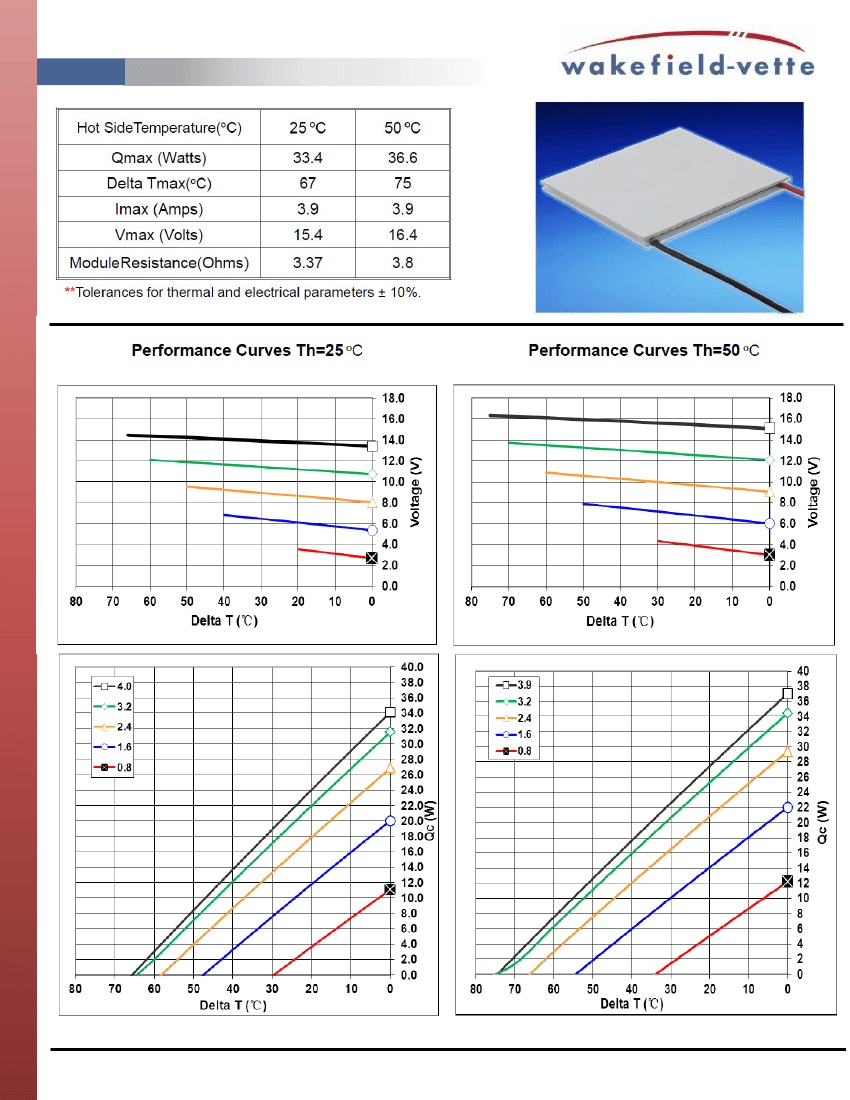

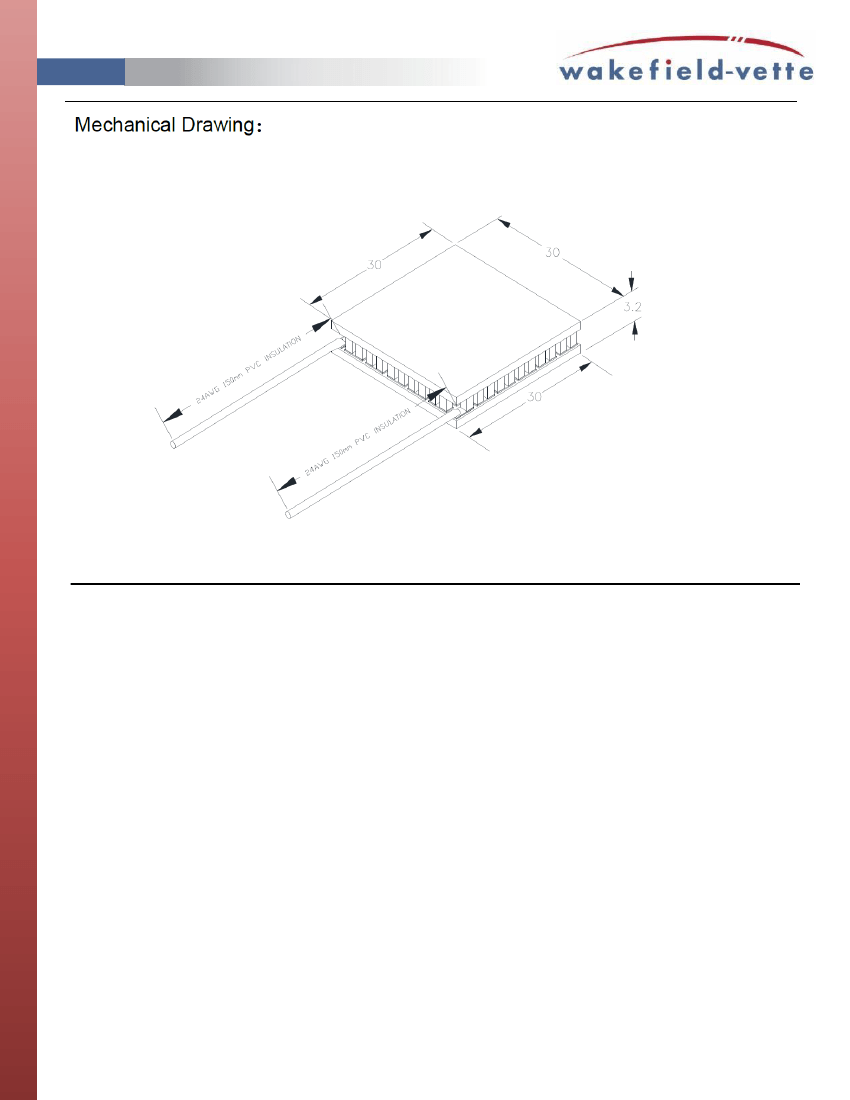

TEC-30-32-127 PELTIER TEC 30X30 3.2MM 3.9A

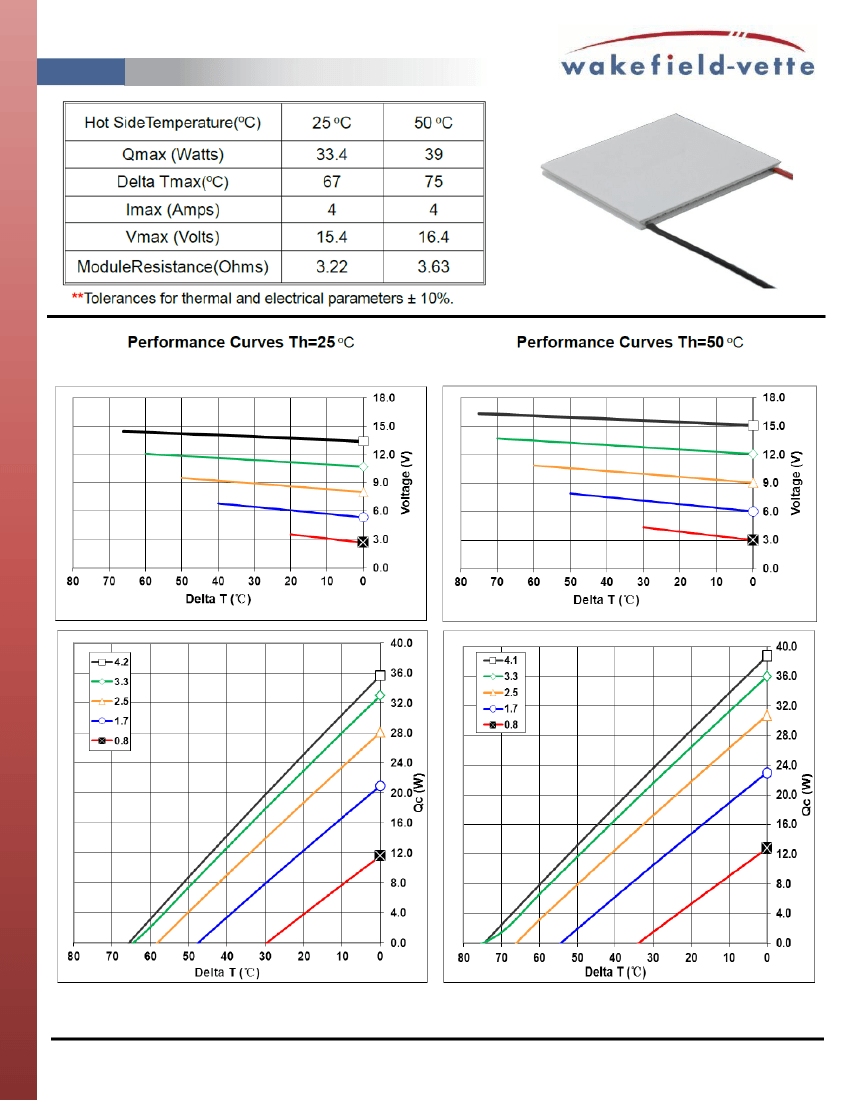

TEC-40-47-127 PELTIER TEC 40X40 4.7MM 3.9A

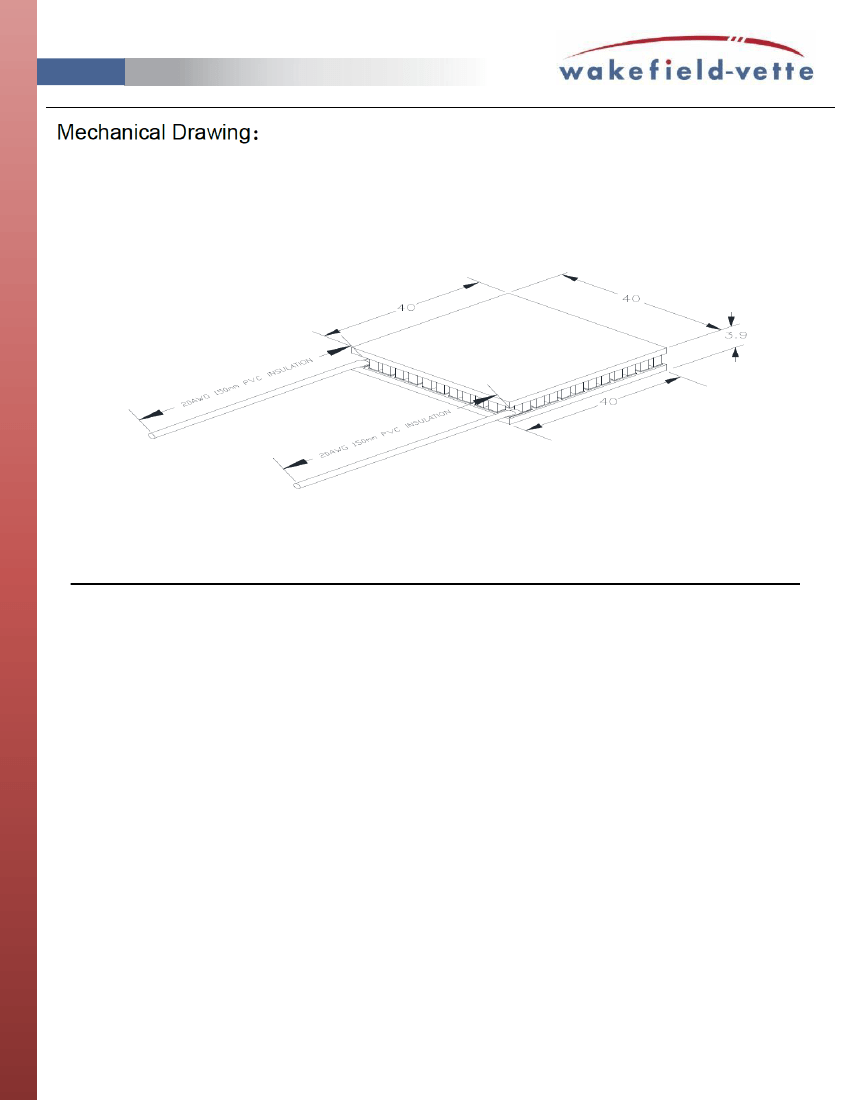

TEC-40-33-127 PELTIER TEC 40X40 3.3MM 8.5A

TEC-30-36-127 PELTIER TEC 30X30 3.6MM 3.0A

TEC-30-47-71 PELTIER TEC 30X30 4.7MM 3.9A

TEC-30-38-71 PELTIER TEC 30X30 3.8MM 6.0A

TEC-40-38-127 PELTIER TEC 40X40 3.8MM 6.0A

TEC-20-33-31 PELTIER TEC 20X20 3.3MM 8.5A

TEC-30-33-71 PELTIER TEC 30X30 3.3MM 8.5A

TEC-30-36-127 Related Products

	TEC-30-36-127	TEC-30-47-71	TEC-30-38-71	TEC-40-47-127	TEC-40-38-127	TEC-20-33-31	TEC-30-32-127	TEC-40-33-127	TEC-30-40-127	TEC-30-33-71
Description	Thermoelectric ModulePeltier, Thermoelectric Cooler, 30x30mm, 3.6mm Height, 3.0A	Thermoelectric module Peltier, Thermoelectric Cooler, 30x30mm, 4.7mm Height, 3.9A	Thermoelectric module Peltier, Thermoelectric Cooler, 30x30mm, 3.8mm Height, 6.0A	Thermoelectric module Peltier, Thermoelectric Cooler, 40x40mm, 4.7mm Height, 3.9A	Thermoelectric module Peltier, Thermoelectric Cooler, 40x40mm, 3.8mm Height, 6.0A	Thermoelectric module Peltier, Thermoelectric Cooler, 20x20mm, 3.3mm Height, 8.5A	Thermoelectric module Peltier, Thermoelectric Cooler, 30x30mm, 3.2mm Height, 3.9A	Thermoelectric module Peltier, Thermoelectric Cooler, 40x40mm, 3.3mm Height, 8.5A	Thermoelectric module Peltier, Thermoelectric Cooler, 30x30mm, 4mm Height, 2.5A	Thermoelectric module Peltier, Thermoelectric Cooler, 30x30mm, 3.3mm Height, 8.5A
Maker	Wakefield-Vette	Wakefield-Vette	Wakefield-Vette	Wakefield-Vette	Wakefield-Vette	Wakefield-Vette	Wakefield-Vette	Wakefield-Vette	Wakefield-Vette	Wakefield-Vette
Product Category	Thermoelectric module	Thermoelectric module	Thermoelectric module	Thermoelectric module	Thermoelectric module	Thermoelectric module	Thermoelectric module	Thermoelectric module	Thermoelectric module	Thermoelectric module
Shipping restrictions	Mouser does not currently sell this product.	Mouser does not currently sell this product.	Mouser does not currently sell this product.	Mouser does not currently sell this product.	Mouser does not currently sell this product.	Mouser does not currently sell this product.	Mouser does not currently sell this product.	Mouser does not currently sell this product.	Mouser does not currently sell this product.	Mouser does not currently sell this product.
type	Thermoelectric Cooler	Thermoelectric Cooler	Thermoelectric Cooler	Thermoelectric Cooler	Thermoelectric Cooler	Thermoelectric Cooler	Thermoelectric Cooler	Thermoelectric Cooler	Thermoelectric Cooler	Thermoelectric Cooler
Qmax	29.8 W	21.9 W	31.2 W	39 W	55 W	20.3 W	36.6 W	82 W	23.6 W	46 W
ΔTmax	+ 75 C	+ 75 C	+ 75 C	+ 75 C	+ 75 C	+ 75 C	+ 75 C	+ 75 C	+ 75 C	+ 75 C
Maximum current	3 A	4 A	6 A	4 A	6 A	8.5 A	3.9 A	8.5 A	2.5 A	8.5 A
maximum voltage	16.4 V	9.6 V	9.5 V	16.4 V	16.4 V	4.1 V	16.4 V	16.4 V	16.4 V	9.6 V
length	30 mm	30 mm	30 mm	40 mm	40 mm	20 mm	30 mm	40 mm	30 mm	30 mm
width	30 mm	30 mm	30 mm	40 mm	40 mm	20 mm	30 mm	40 mm	30 mm	30 mm
series	TEC	TEC	TEC	TEC	TEC	TEC	TEC	TEC	TEC	TEC
Maximum operating temperature	+ 90 C	+ 90 C	+ 90 C	+ 90 C	+ 90 C	+ 90 C	+ 90 C	+ 90 C	+ 90 C	+ 90 C
Factory packaging quantity	100	100	100	100	100	100	100	100	100	100
