322605C00000: DescriptionHeatsinkBoard Level Heatsink for TO-5; CategoryThermal management products Heat sinks; File Size253KB，4 Pages; ManufacturerAavid Thermalloy

Download Datasheet Parametric Compare View All

322605C00000 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	322605C00000	-	-	View	Buy Now

322605C00000 Overview

HeatsinkBoard Level Heatsink for TO-5

322605C00000 Parametric

Parameter Name	Attribute value
Maker	Aavid Thermalloy
Product Category	heat sink
RoHS	N
product	Heat Sinks
Installation style	Snap On
Heat sink material	Aluminum
Heat sink style	Cylindrical
Thermal resistance	40 C/W
high	6.35 mm
aim of design	TO-5
diameter	19.05 mm
series	3200
type	Push On
Factory packaging quantity	1000

Preview

Download Datasheet

View All

DATASHEET

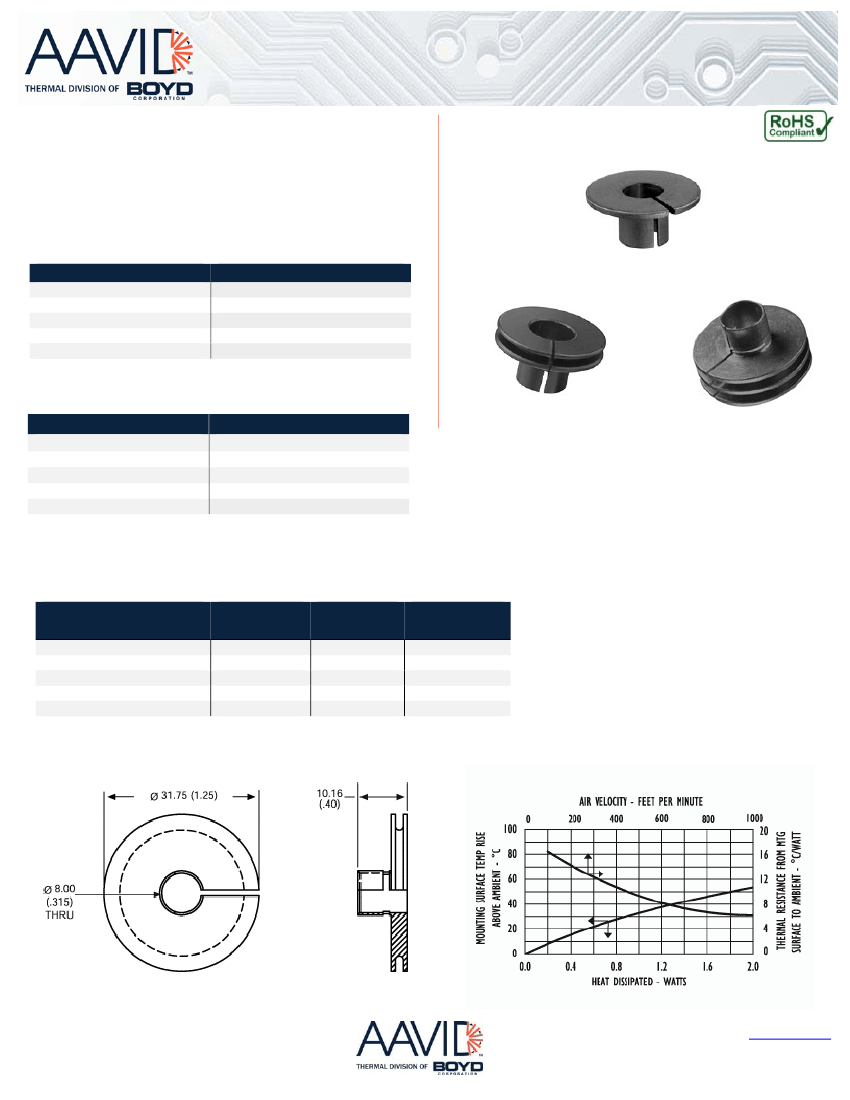

Board Level Cooling – Push On 3200

BOARD LEVEL COOLING – Push On 3200

Push On 3200 is a series of circular board level heat sinks designed to cool

TO‐5 and TO‐18 devices. Representative images only.

ORDERING INFORMATION

Part Number

2227BG

322400B00000G

322505B00000G

322605B00000G

322805B00000G

Device Type

TO‐5

TO‐18

TO‐5

HEAT SINK DETAILS

Property

Material

Finish

Device Attachment Options

Thermal Interface Material

Heat Sink Mounting Direction

Details

Aluminum

Black Anodize

Slide On

‐

Vertical

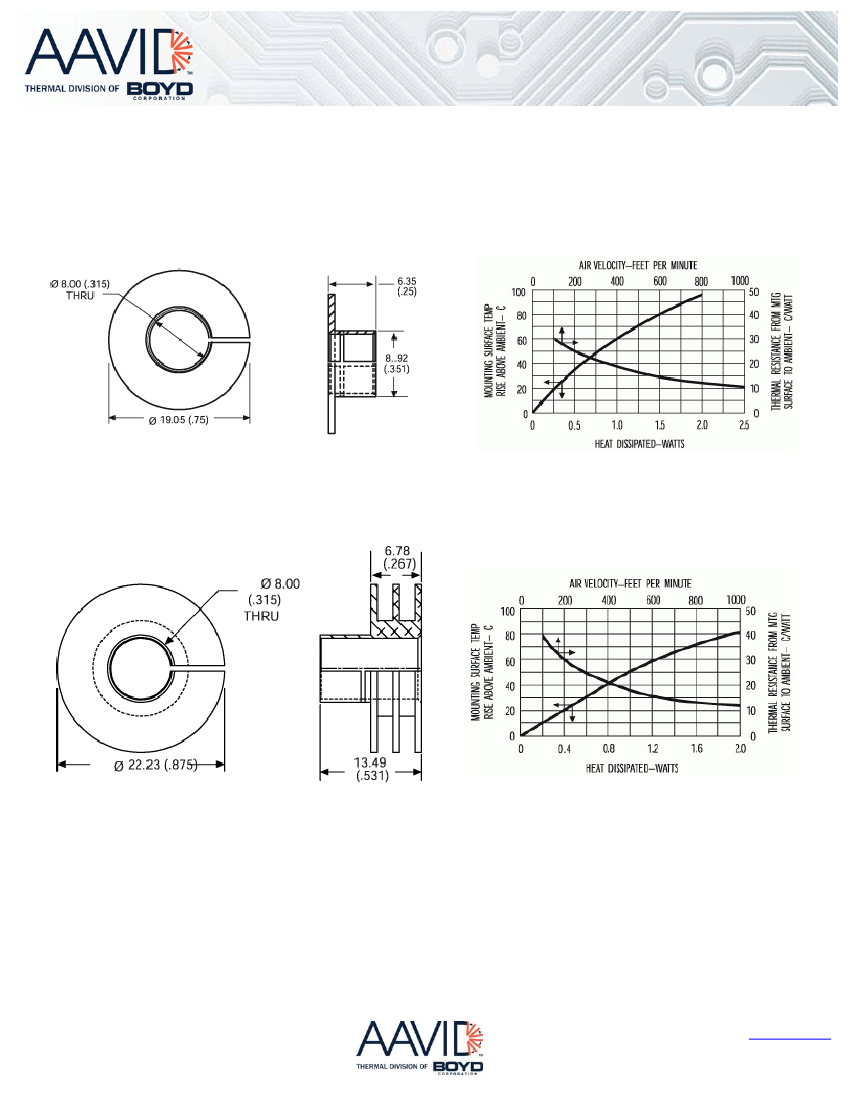

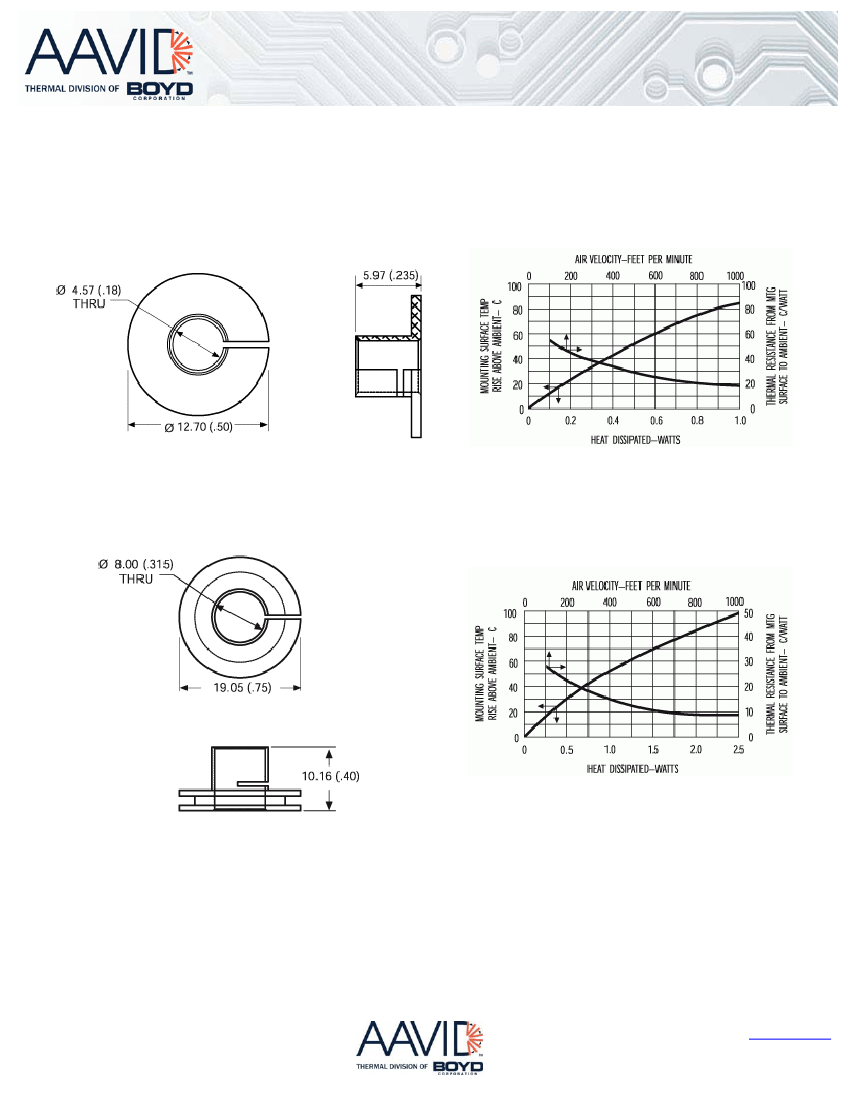

MECHANICAL & PERFORMANCE

Drawing dimensions are shown in mm, (in)

Part Number

2227BG

322400B00000G

322505B00000G

322605B00000G

322805B00000G

Heat Sink

Length

31.75

12.70

19.05

22.23

Heat Sink

Width

31.75

12.70

19.05

22.23

Heat Sink

Height

10.16

5.97

10.16

6.35

13.49

Part Number: 2227BG

USA: 1.855.322.2843

EUROPE: 39.051.764002

ASIA: 86.21.6115.2000 x8122

Board Level Cooling

www.aavid.com

322605C00000 Related Products

	322605C00000	2227BG
Description	HeatsinkBoard Level Heatsink for TO-5	Board Level Heatsink for TO-5, Black Anodized, 31.75mm
Thermal resistance	40 C/W	21 Ω
high	6.35 mm	10.16 mm
diameter	19.05 mm	31.75 mm
