EZ BLE
TM
ARDUINO EVALUATION BOARD
CYBLE 416045 EVAL
The EZ-BLE Arduino evaluation board (CYBLE-416045-EVAL) enables you
to evaluate and develop applications on the CYBLE-416045-02 EZ-BLE
Creator module. CYBLE-416045-EVAL can be used as a standalone
evaluation kit or can be combined with Arduino compatible shields.
The CYBLE-416045-02 is a fully integrated, fully certi ed, 14.0 mm x
18.5 mm x 2.00 mm, programmable, Bluetooth® Smar t module
designed to reduce your time-to-market.
For more information, visit:
www.cypress.com/bluetooth_modules
- EZ-BLE/EZ-BT
TM
Module home page
www.cypress.com/EZ-Serial
- EZ-Serial Firmware Platform
www.cypress.com/Creator
- PSoC Creator
TM
IDE
User De ned Switch (SW2)
Reset Switch (SW1)
Module SWD Header (J9)
P0.4-SW2 Jumper (J10)
Module-to-Arduino Header (J5)
Module-to-Arduino Header (J4)
USB Connector (J1)
P9.5-LED3/Blue Jumper (J12)
PSoC5 LP SWD Header (J3)
VDD Setting (J2)
VDD Jumper (J8)
Module-to-Arduino Header (J7)
Module-to-Arduino Header (J6)
P9.6-LED3/Green Jumper (J13)
P9.4-LED3/Red Jumper (J11)
CYBLE-416045-02 Module

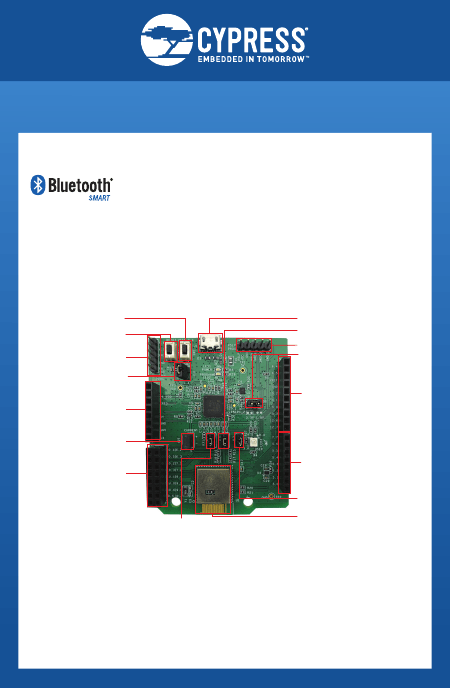

Figure 1: CYBLE-416045-EVAL Top View
To use the CYBLE-416045-EVAL:
1) Con gure the evaluation board headers and switches to the desired settings
2) Connect the evaluation board to a PC via a USB cable
3) Open the Creator IDE and create a project using the CYBLE-416045-02 MPN and program
and debug using PSoC Creator
The Arduino compatible headers (J4, J5, J6, and J7) are optional connections, which provide
additional I/O connections to the module and allow for other Arduino shields to be used
during development.
EZ BLE
TM
ARDUINO EVALUATION BOARD
CYBLE 416045 EVAL

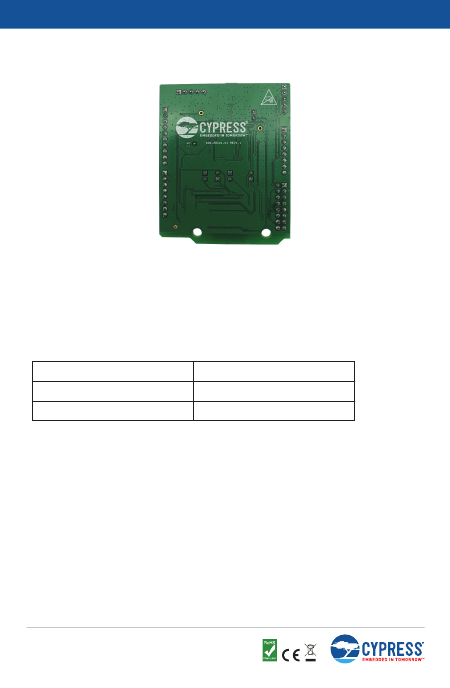

Figure 2: CYBLE-416045-EVAL Bottom View
SW1: Reset switch routed to the XRES connection on the module.
SW2: User-de ned switch routed to the P0.4 connection on the module via J10.
J1: Micro-USB connector.
J2: Con gures the VDD voltage input to the module as shown in the below table:
J2 Jumper Con guration
Short
Open
J3: PSoC5 LP SWD Program/Debug Interface.
VDD Voltage Level
3.3 V
1.8 V
J4/J5/J6/J7: Arduino-compatible headers used with an Arduino compatible shield.
J8: Module power supply current measurement header.
J9: CYBLE-416045-02 SWD Program/Debug Interface.
J10: Connects or disconnects P0.4 pad of CYBLE-416045-02 to SW2.
J11/12/13: Connects the P9.4, P9.5, and P9.6 pads to LED3 Red, Blue, and Green respectively.
The EZ-BLE CYBLE-416045-02 module is quali ed for the Bluetooth 5.0 speci cation and is
certi ed for the 2.4 GHz unlicensed frequency range in USA (FCC), Canada (ISED), Europe (CE),
and Japan (MIC).
Visit
www.cypress.com/support
for technical support.
© 2018 Cypress Semiconductor Corporation. All rights
reserved. All trademarks or registered trademarks referenced herein
are the properties of their respective owners. 002-24484 Rev.**
