MAX11103 Evaluation Kit
General Description
The MAX11103 evaluation kit (EV kit) is a fully assem-
bled and tested PCB that evaluates the MAX11103
2-channel, 12-bit, SPI™-compatible 3Msps analog-
to-digital converter (ADC). The EV kit also includes
Windows XP
®
, Windows Vista
®
, and Windows
®
7-com-
patible software that provides a simple graphical user
interface (GUI) for exercising the features of the device.
The EV kit comes installed with a MAX11103AUB+ in a
10-pin
FMAX
®
package with an exposed pad.
S
48MHz SPI Interface
S
Windows XP, Windows Vista, and Windows
Features
7-Compatible Software
Evaluates: MAX11103
S
Time Domain, Frequency Domain, and Histogram
Plotting in the EV Kit Software
S
Frequency, RMS, Min, Max, and Average DC
Calculations in the EV Kit Software
S
Collects Up to One Mega Samples
S
On-Board Input Buffers
S
USB-PC Connection
S
Proven PCB Layout
S
Fully Assembled and Tested
Ordering Information
PART
MAX11103EVKIT+
TYPE
EV Kit
+Denotes
lead(Pb)-free and RoHS compliant.
Component List
DESIGNATION
AIN1_AC,
AIN1_DC,
AIN2_AC,
AIN2_DC,
CHSEL, CS,
DOUT, REF,
SCLK
AIN1_AC_SMA,
AIN1_DC_SMA,
AIN2_AC_SMA,
AIN2_DC_SMA,
10MHZCLK
AVDD, OP+,
OVDD, VIN
BUTTON,
CPU_RESET,
RECONFIGURE
QTY
DESCRIPTION
DESIGNATION
C1, C3
9
White test points
C2, C4, C31,
C34, C36, C42,
C43, C47, C51,
C55–C72, C78,
C79, C80, C82,
C84, C86, C88,
C89, C90, C92,
C98, C99
C5–C29
C30, C35, C91,
C94, C95, C96,
CB1, CB2, CB3
C32
QTY
2
DESCRIPTION
1000pF
Q
10%, 50V X7R ceramic
capacitors (0603)
Murata GRM188R71H102K
39
0.1FF
Q10%,
25V X7R ceramic
capacitors (0603)
Murata GRM188R71E104K
5
50I SMA female jacks
4
Red test points
25
0.1FF
Q10%,
16V X7R ceramic
capacitors (0402)
Murata GRM155R71C104K
1FF
Q10%,
16V X7R ceramic
capacitors (0603)
Murata GRM188R71C105K
0.01FF
Q10%,
16V X7R ceramic
capacitor (0603)
Murata GRM188R71C103K
3
Pushbutton switches
9
SPI is a trademark of Motorola, Inc.
Windows, Windows XP, and Windows Vista are registered
trademarks of Microsoft Corp.
µMAX is a registered trademark of Maxim Integrated
Products, Inc.
1
_______________________________________________________________
Maxim Integrated Products
1
For pricing, delivery, and ordering information, please contact Maxim Direct at 1-888-629-4642,
or visit Maxim’s website at www.maxim-ic.com.
MAX11103 Evaluation Kit
Evaluates: MAX11103
Component List (continued)
DESIGNATION
C33, C38, C39,
C40, C97
C37, C41, C44,
C45, C46, C48,
C50, C52, C87,
C73, C93, CP2,
CP3
C49, C53, C74,
C100, C102,
C105, C106
C54, C101
QTY
5
DESCRIPTION
4.7FF
Q10%,
6.3V X5R ceramic
capacitors (0603)
Murata GRM188R60J475K
10FF
Q10%,
6.3V X5R ceramic
capacitors (0603)
Murata GRM188R60J106M
DESIGNATION
JU1–JU4,
JU10–JU16,
JU18, JU21
JU5–JU8, JU17,
JU19, JU20,
JU22, JU23
JUC1–JUC7
0
Not installed, ceramic capacitors
(0603)
Not installed, ceramic capacitors
(through hole)
18pF
Q5%,
50V C0G ceramic
capacitors (0603)
Murata GRM1885C1H180J
10FF
Q20%,
10V capacitors
(Tant B)
KEMET T491B106M010AT
4.7FF
Q20%,
25V capacitors
(Tant B)
AVX TAJB475M025R
10FF
Q10%,10V
X7R ceramic
capacitor (0805)
Murata GRM21BR71A106K
Not installed, ceramic capacitor
(0805)
10pF
Q5%,
50V C0G ceramic
capacitors (0603)
Murata GRM1885C1H100J
100FF
Q20%,
6.3V X5R ceramic
capacitor (1210)
Murata GRM32ER60J107M
Black test points
Not installed, dual-row, 32-pin
(2 x 16) header
USB type-B right-angle PC-mount
receptacle
Not installed, dual-row, 10-pin
(2 x 5) headers
L1
L3
LED1–LED4
OP-
R1, R2, R5, R6,
R7
R3, R4, R38,
R39, R40, R44,
R45, R47
R10, R33
R11–R21
R22–R25, R28,
R34, R35, R41
R26
R27
R29
R30, RC1–RC7
R31, R37, R46
R32
R36
R42, R43
RC8, RC9,
RC10
RL1–RL4
RN14–RN21
RN22
RN25
RSENSE1,
RSENSE2
QTY
13
DESCRIPTION
3-pin headers
13
9
2-pin headers
0
1
0
4
1
5
Not installed, headers—shorted
by PCB trace
Ferrite bead (0603)
TDK MMZ1608R301A
Not installed, inductor—shorted
by PCB trace
Red LEDs (0603)
Brown test point
100kI
Q5%
resistors (0603)
0
C75, C76
2
C77, C81
2
8
2
11
8
1
1
1
8
0
1
1
2
3
4
8
1
1
2
1kI
Q5%
resistors (through hole)
22I
Q5%
resistors (0603)
5.1kI
Q5%
resistors (0603)
10kI
Q1%
resistors (0603)
16.5kI
Q1%
resistor (0603)
4.42kI
Q1%
resistor (0603)
20kI
Q1%
resistor (0603)
10kI
Q5%
resistors (0603)
Not installed, resistors (0603)
12.1kI
Q1%
resistor (0603)
0I
Q5%
resistor (0603)
10I
Q1%
resistors (0603)
1kI
Q5%
resistors (0603)
120I
Q5%
resistors (0603)
22I, 8-pin SMT resistor networks
5.1kI, 8-pin SMT resistor network
10kI, 8-pin SMT resistor network
0.1I
Q1%
1/2W sensing resistors
(1206)
C83, C85
2
C103
1
C104
0
CC1–CC4
4
CP1
GND
J1
J2
JTAG1, JTAG2
1
9
0
1
0
2
______________________________________________________________________________________
MAX11103 Evaluation Kit
Evaluates: MAX11103
Component List (continued)
DESIGNATION
S1
QTY
1
DESCRIPTION
4-position SMT half-pitch DIP
switch
12-bit, 3Msps ADC
(10
FMAX-EP)
Maxim MAX11103AUB+
Altera Cyclone III FPGA
Altera EP3C25F324C8N
256Kx36 SSRAM (100 TQFP)
ISSI IS61LPS25636A-200TQLI
Not installed, 32Mx16 Flash
(64 EBGA)
Numonyx/Intel PC28F256P30BFA
EPCS16 (8 SO)
Altera EPCS16SI8N
Current-sense amplifiers
(8
FMAX)
Maxim MAX9929FAUA+
Op amps (5 SOT23)
Maxim MAX4430EUK+
DESIGNATION
U10, U11, U12
U13
U14
U15
U17
U18, U19
Y1
Y2
—
—
—
QTY
3
1
1
1
1
2
1
1
1
22
1
DESCRIPTION
LDOs (16 TSSOP-EP)
Maxim MAX1793EUE50+
LDO (6 SOT23)
Maxim MAX1983EUT+
SRAM (48 TSOP)
Cypress CY62167DV30LL-55ZXI
USB PHY (SOT617-1)
ST Ericsson ISP1504ABS
3V voltage reference (8 SO)
Maxim MAX6126AASA30+
Dual buffers (6 SC70)
50MHz oscillator
19.2MHz, 18pF SMD crystal
USB high-speed A-to-B cables,
6ft
Shunts
PCB: MAX11103 EVALUATION
KIT+
U1
1
U2
U5
1
1
U6
0
U7
1
U8, U20
2
U9, U16
2
Component Suppliers
SUPPLIER
Altera Corp.
AVX Corporation
KEMET Corp.
Murata Electronics North America, Inc.
TDK Corp.
PHONE
800-800-3753
843-946-0238
864-963-6300
770-436-1300
847-803-6100
WEBSITE
www.altera.com
www.avxcorp.com
www.kemet.com
www.murata-northamerica.com
www.component.tdk.com
Note:
Indicate that you are using the MAX11103 when contacting these component suppliers.
MAX11103 EV Kit Files
FILE
INSTALL.EXE
MAX11103.EXE
SLSUSB.DLL
SLSUSB.INF
SLSUSB.SYS
SLS_USB_Driver_Help_100.PDF
Application program
Software library file
USB device driver file
USB device driver file
USB driver installation file
DESCRIPTION
Installs the EV system files on your computer
_______________________________________________________________________________________
3
MAX11103 Evaluation Kit
Evaluates: MAX11103
Quick Start
•
•
•
•
MAX11103 EV kit
9)
Connect the USB cable from the PC to the
EV kit board. Follow the instructions on the
SLS_USB_Driver_Help_100.PDF file to manually
install the USB driver. Administrator privileges are
required to install the USB device driver on Windows.
Required Equipment
5.5V, 500mA DC power supply
Windows XP, Windows Vista, or Windows 7 PC with
a spare USB port
Function generator
10) Start the EV kit software by opening its icon in the
Windows
All Programs
menu. The EV kit software
main window appears, as shown in Figure 1.
11) The main window should display
Hardware
Connected
at the bottom-left corner
12) Check the
Remove DC
checkbox.
13) Press the
Start Conversion
button.
14) Verify that the
Frequency
displayed in the
Calculation
group box reads approximately 100000Hz.
Note:
In the following sections, software-related items
are identified by bolding. Text in
bold
refers to items
directly from the EV kit software. Text in
bold and under-
lined
refers to items from the Windows operating system.
The EV kit is fully assembled and tested. Follow the
steps below to verify board operation.
Caution: Do not
turn on the power supply until all connections are
completed.
1)
2)
Uncompress the 11103Rxx.ZIP file in a temporary
folder.
Install the EV kit software on your computer by run-
ning the INSTALL.EXE program inside the tempo-
rary folder. The program files are copied to your PC
and icons are created in the Windows
All Programs
menu. During software installation, some versions
of Windows may show a warning message indicat-
ing that this software is from an unknown publisher.
This is not an error condition and it is safe to pro-
ceed with installation. Administrator privileges are
required to install the software on Windows.
Verify that all jumpers are in their default positions,
as shown in Table 1.
Connect the positive terminal of the 5.5V power
supply to the VIN connector on the board. Connect
the negative terminal of the same power supply to
the GND connector on the board.
Set the signal source to generate a 100kHz, 1V
peak-to-peak sinusoidal wave with 2V offset.
Connect the positive terminal of the signal gen-
erator to the AIN1_DC or AIN1_DC_SMA connector.
Connect the negative terminal of the signal genera-
tor to the GND connector.
Turn on the power supply.
Turn on the function generator.
Procedure
Detailed Description of Software

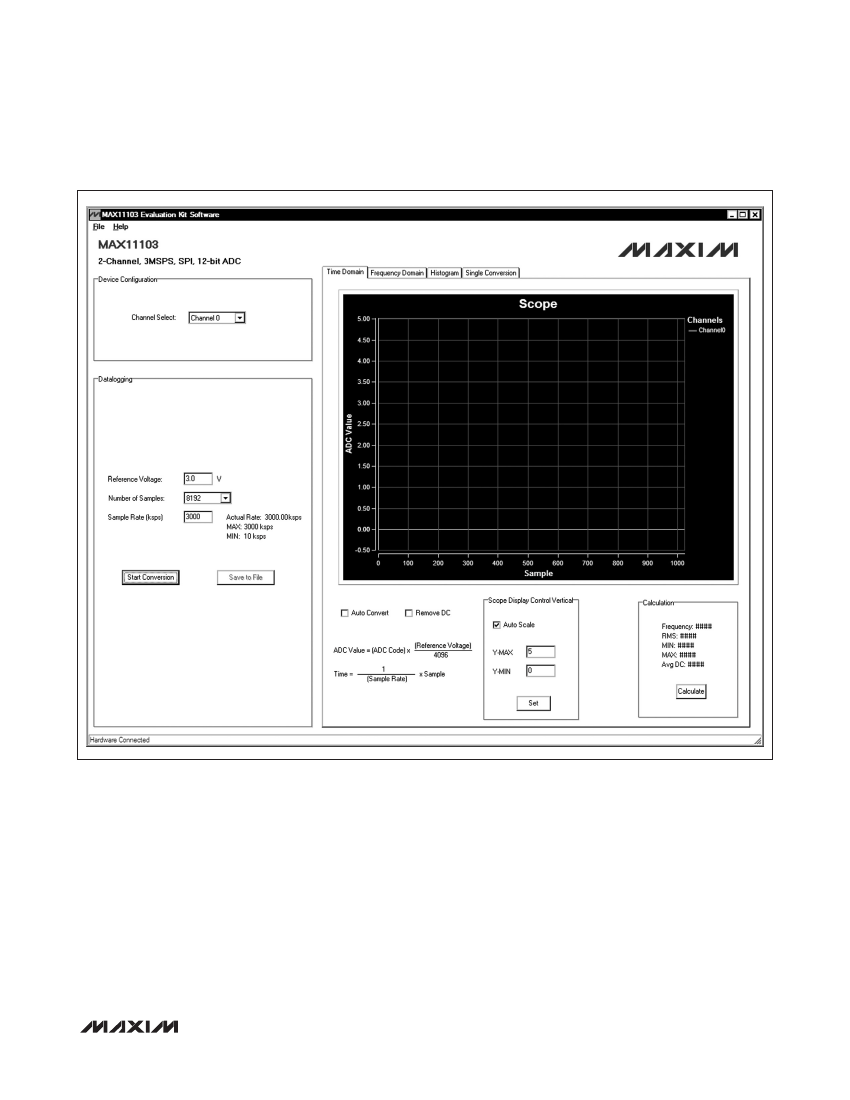

The main window of the evaluation software
(Figure 1) contains a
Device Configuration
group box,
a
Datalogging
group box, and four tab sheets to display
the sampled data.
Use the
Channel Select
drop-down list in the
Device
Configuration
group box to select the analog input
channel for analog-to-digital conversion.
In the
Datalogging
group box, the user can select
the desired number of conversions in the
Number of
Samples
drop-down list. Enter the desired sampling rate
in the
Sample Rate (ksps)
edit box. The actual sampling
rate is displayed at the right of the
Sample Rate (ksps)
edit box. Press the
Start Conversion
button to start
sampling. After sampling is finished, the user can save
the data to a file by pressing the
Save to File
button.
The
Save to File
button is not active until the sampling
is done.
Device Configuration
Data Logging
3)
4)
5)
6)
7)
8)
After the
Start Conversion
button in the
Datalogging
group box is pressed, the sampled data in the time
domain is plotted in the
Time Domain
tab sheet. The
sampled data in the frequency domain is plotted in the
Frequency Domain
tab sheet, and the histogram of the
sampled signal is plotted in the
Histogram
tab sheet.
Time Domain, Frequency Domain,
Histogram, and Single Conversion Tabs
4
______________________________________________________________________________________
MAX11103 Evaluation Kit
Evaluates: MAX11103
Figure 1. MAX11103 EV Kit Software Main Window
The
Single Conversion
tab sheet displays one sampled
data.
Check the
Auto Convert
checkbox to automatically
and repeatedly do the ADC conversions and update the
active tab sheet.
Time Domain Tab
In the
Time Domain
tab sheet (Figures 2a and 2b),
check the
Remove DC
check box to remove the DC
component of the sampled signal. In the
Scope Display
Control Vertical
group box, when the
Auto Scale
checkbox is checked, the software automatically scales
the vertical axis in the plot. If the
Auto Scale
checkbox is
unchecked, enter the appropriate values into the
Y-MAX
and
Y-MIN
edit boxes and press the
Set
button to set the
boundaries for the vertical axis. The software automati-
cally calculates the
Frequency, RMS, MIN, MAX,
and
Avg DC
of the sampled signal and displays the calcu-
lated values in the
Calculation
group box.
Frequency Domain Tab
The
Frequency Domain
tab sheet (Figure 3) displays
the FFT plot of the signal shown in the
Time Domain
tab
sheet.
_______________________________________________________________________________________
5
京公网安备 11010802033920号
EEWORLD
