19-5509; Rev 0; 9/10
MAX11200/MAX11206/MAX11209/MAX11210/
MAX11213 Evaluation Kits
General Description
The MAX11200, MAX11206, MAX11209, MAX11210,
and MAX11213 evaluation kits (EV kits) consist of
one MAX11200, MAX11206, MAX11209, MAX11210,
or MAX11213 evaluation board and software. The EV
kits are fully assembled and tested circuit boards that
evaluate the MAX11200 family of ultra-low-power, high-
resolution, serial output ADCs.
The EV kits include Windows XP
M
-, Windows Vista
M
-,
and Windows
M
7-compatible software that provides a
graphical user interface (GUI) for exercising the features
of the MAX11200 family of data converters. The EV kits are
connected to a PC through a USB A-to-B cable.
7-Compatible Software
S
USB-PC Connection (Cable Included)
S
USB Powered (No External Power Supply
Features
S
Windows XP-, Windows Vista-, and Windows
Evaluate: MAX11200/11206/11209/11210/11213
Required)
S
On-Board Isolated Power Supplies Rejecting
Power Line Noise
S
On-Board Optocouplers Isolating ADC from Other
Circuitry
S
Real-Time Data Acquisition through USB
S
Proven PCB Layout
Selector Guide
PART
MAX11200EEE+
MAX11206EEE+
MAX11209EEE+
MAX11210EEE+
MAX11213EEE+
RESOLUTION
24
20
18
24
16
PROGRAMMABLE
GAIN
N/A
1–128
1–128
1–16
1–128
PART
MAX11200EVKIT+
MAX11206EVKIT+
MAX11209EVKIT+
MAX11210EVKIT+
Ordering Information
TYPE
EV Kit
EV Kit
EV Kit
EV Kit
MAX11213EVKIT+
EV Kit
+Denotes
lead(Pb)-free and RoHS compliant.
Component List
DESIGNATION
C1
QTY
1
DESCRIPTION
10FF
Q20%,
6.3V X5R ceramic
capacitor (0603)
Murata GRM188R60J106M
0.01FF
Q10%,
16V X7R ceramic
capacitor (0603)
Murata GRM188R71C 103K
0.1FF
Q10%,
25V X7R ceramic
capacitors (0603)
Murata GRM188R71E104K
1000pF
Q10%,
50V X7R ceramic
capacitors (0603)
Murata GRM188R71H102K
4.7FF
Q10%,
10V X5R ceramic
capacitors (0805)
Murata GRM219R61A475K
DESIGNATION
C21, C24, C25,
C28
C22, C23, C26,
C27
C34–C37
D1–D4
D5
D6
D7
FB1
QTY
4
DESCRIPTION
1FF
Q10%,
16V X7R ceramic
capacitors (0603)
Murata GRM188R71C105K
18pF
Q5%,
50V C0G ceramic
capacitors (0603)
Murata GRM1885C1H180J
Not installed, ceramic capacitors
(0805)
30V, 1A Schottky diodes
(SOD123)
15V zener diode (DO35)
Green LED (0603)
Red LED (0603)
120 at 100MHz, 200mA ferrite
bead (0603)
Murata BLM18RK121SN1
C2
C3–C10, C13,
C14, C15, C17,
C18, C33
C11, C12
1
4
14
0
4
1
1
1
1
2
C16, C19, C20,
C29–C32
7
Windows, Windows XP, and Windows Vista are registered
trademarks of Microsoft Corp.
_______________________________________________________________
Maxim Integrated Products
1
For pricing, delivery, and ordering information, please contact Maxim Direct at 1-888-629-4642,
or visit Maxim’s website at www.maxim-ic.com.
MAX11200/MAX11206/MAX11209/MAX11210/
MAX11213 Evaluation Kits
Evaluate: MAX11200/11206/11209/11210/11213
Component List (continued)
DESIGNATION
J1
J2
J3
J4
JU1
JU2–JU5
JU6, JU7, JU10
JU8, JU9
R1
R2, R3, R4
R5–R8
R9
R10, R14
R11, R12
R13
R15
R16
R17
R18, R19
R20–R23
T1
TP1, TP3
TP2, TP4
TP5–TP13
U1
QTY
1
1
1
0
1
4
3
2
1
3
4
1
2
2
1
1
1
1
2
4
1
2
2
9
1
DESCRIPTION
12-position terminal block
BNC PC-mount connector
USB type-B right-angle
receptacle
Not installed, 10-pin (2 x 5)
header
4-pin header
3-pin headers
2-pin headers
12-pin (2 x 6) headers
100I
Q5%
resistor (0603)
180I
Q5%
resistors (0603)
330I
Q5%
resistors (0603)
47kI
Q5%
resistor (0603)
360I
Q5%
resistors (0603)
33.2I
Q1%
resistors (0603)
10kI
Q5%
resistor (0603)
10.5kI
Q1%
resistor (0603)
6.49kI
Q1%
resistor (0603)
100kI
Q5%
resistor (0603)
10kI
Q1%
resistors (0603)
0I
Q5%
resistors (0603)
198FH, 3W, 1:1:2.6:2.6-turn
400kHz transformer
HALO Electronics TGM-H281NF
Red multipurpose test points
Black multipurpose test points
Orange miniature test points
See the
EV Kit-Specific
Component List
4:1 analog multiplexer
(16 TSSOP)
Maxim MAX4782EUE+
High-precision, low-noise voltage
reference (8
FMAX
M
)
Maxim MAX6126A30+
Y4
—
—
—
*EP
= Exposed pad.
1
1
10
1
Y2
1
Y1
1
U13
1
U11
U12
1
1
U10
1
DESIGNATION
U4, U5, U6
U7
U8
U9
QTY
3
1
1
1
DESCRIPTION
High-speed optocouplers (8 DIP)
H-bridge driver (8 SO-EP*)
Maxim MAX256ASA+
Linear regulator (8 SO)
Maxim MAX1659ESA+
Linear regulator (8 SO)
Maxim MAX1658ESA+
USB peripheral controller
(24 TQFN-EP*)
Maxim MAX3420EETG+
Microcontroller (68 QFN-EP*)
Maxim MAXQ2000-RAX+
2.5V LDO regulator (5 SC70)
Maxim MAX8511EXK25+
Adjustable LDO regulator
(6 SOT23)
Maxim MAX8880EUT+
2.4576MHz clock oscillator
Hong Kong X’tals
C4L24576NSMI02601-0
2.048MHz clock oscillator
Hong Kong X’tals
C4L20480NSMI02601-0
12MHz crystal
Hong Kong X’tals
SSM12000N1HK188F0-0
20MHz crystal
Hong Kong X’tals
SSM20000NSMI02801-0
USB high-speed A-to-B cable
Shunts
PCB: MAX11200/11206/11209/1
1210/11213 EVALUATION KIT+
Y3
1
U2
1
U3
1
µMAX is a registered trademark of Maxim Integrated Products,
Inc.
2
______________________________________________________________________________________
MAX11200/MAX11206/MAX11209/MAX11210/
MAX11213 Evaluation Kits
EV Kit-Specific Component List
PART
MAX11200EVKIT+
MAX11206EVKIT+
MAX11209EVKIT+
MAX11210EVKIT+
MAX11213EVKIT+
U1
DESIGNATION
DESCRIPTION
24-bit single-channel ADC (16 QSOP)
Maxim MAX11200EEE+
20-bit single-channel ADC (16 QSOP)
Maxim MAX11206EEE+
18-bit single-channel ADC (16 QSOP)
Maxim MAX11209EEE+
24-bit single-channel ADC (16 QSOP)
Maxim MAX11210EEE+
16-bit single-channel ADC (16 QSOP)
Maxim MAX11213EEE+
Evaluate: MAX11200/11206/11209/11210/11213
Component Suppliers
SUPPLIER
HALO Electronics, Inc.
Hong Kong X’tals Ltd.
PHONE
650-903-3800
852-35112388
WEBSITE
www.haloelectronics.com
www.hongkongcrystal.com
Murata Electronics North America, Inc.
770-436-1300
www.murata-northamerica.com
Note:
Indicate that you are using the MAX11200, MAX11206, MAX11209, MAX11210, or MAX11213 when contacting these
component suppliers.
MAX11200/MAX11206/MAX11209/MAX11210/MAX11213 EV Kit Files
FILE
INSTALL.EXE
11200_06_09_10_13.EXE
UNINST.INI
Application program
Uninstalls the EV kit software
DESCRIPTION
Installs the EV kit files on your computer
Quick Start
•
•
•
MAX11200, MAX11206, MAX11209, MAX11210, or
MAX11213 EV kit (USB A-to-B cable included)
Windows XP, Windows Vista, or Windows 7 PC with
a spare USB port
High-precision digital voltmeter (DVM)
Recommended Equipment
The EV kits are fully assembled and tested. Follow
the steps below to verify board operation before
exercising the full features of the MAX11200 family of data
converters:
1)
2)
Verify that all the jumpers are set in their default
positions (see Table 3).
Procedure
Refer to the MAX11200/MAX11210, MAX11203/
MAX11213, MAX11206/MAX11207, and MAX11209/
MAX11211 IC data sheets while using this EV kit for
detailed descriptions of the device features.
Note:
In the following sections, software-related items
are identified by bolding. Text in
bold
refers to items
directly from the EV kit software. Text in
bold and under-
lined
refers to items from the Windows operating system.
Visit
www.maxim-ic.com/evkitsoftware
to down-
load the latest version of the EV kit software,
11200_06_09_10_13Rxx.ZIP.
Install the evaluation software on your computer
by running the INSTALL.EXE program. The pro-
gram files are copied and icons are created in the
Windows
Start | Programs
menu.
Connect the USB cable from the PC to the EV kit
board.
3
3)
4)
_______________________________________________________________________________________
MAX11200/MAX11206/MAX11209/MAX11210/
MAX11213 Evaluation Kits
Evaluate: MAX11200/11206/11209/11210/11213
5)
Verify that green LED D6 on the EV kit board
illuminates, indicating the isolated power supply is
good.
Verify that red LED D7 on the EV kit board
illuminates, indicating the microcontroller has
successfully finished the board self-test.
Start the EV kit software by opening its icon in the
Windows
Start | Programs
menu.
A
Device Select
window pops up. Select the device
variant installed on the EV kit board and press the
OK
button (Figure 1).
9)
6)
The software automatically configures the device
to perform a self-calibration and enables the use of
the self-calibration offset and self-calibration gain
values when computing the final offset and gain-
corrected data value (set the CTRL3 register to
0x18).
7)
8)
10) The EV kit software main window appears (Figure
2). Verify that
Hardware: Connected
is displayed
on the status bar at the bottom of the main window.
11) Press the
Start Conversion & Data Logging
button. The software switches to the
Data Analysis
tab (Figure 3), displaying the scope of the sampled
data.
Figure 1. MAX11200/MAX11206/MAX11209/MAX11210/MAX11213 EV Kit Software (Device Select Window)
4
______________________________________________________________________________________
MAX11200/MAX11206/MAX11209/MAX11210/
MAX11213 Evaluation Kits
Evaluate: MAX11200/11206/11209/11210/11213

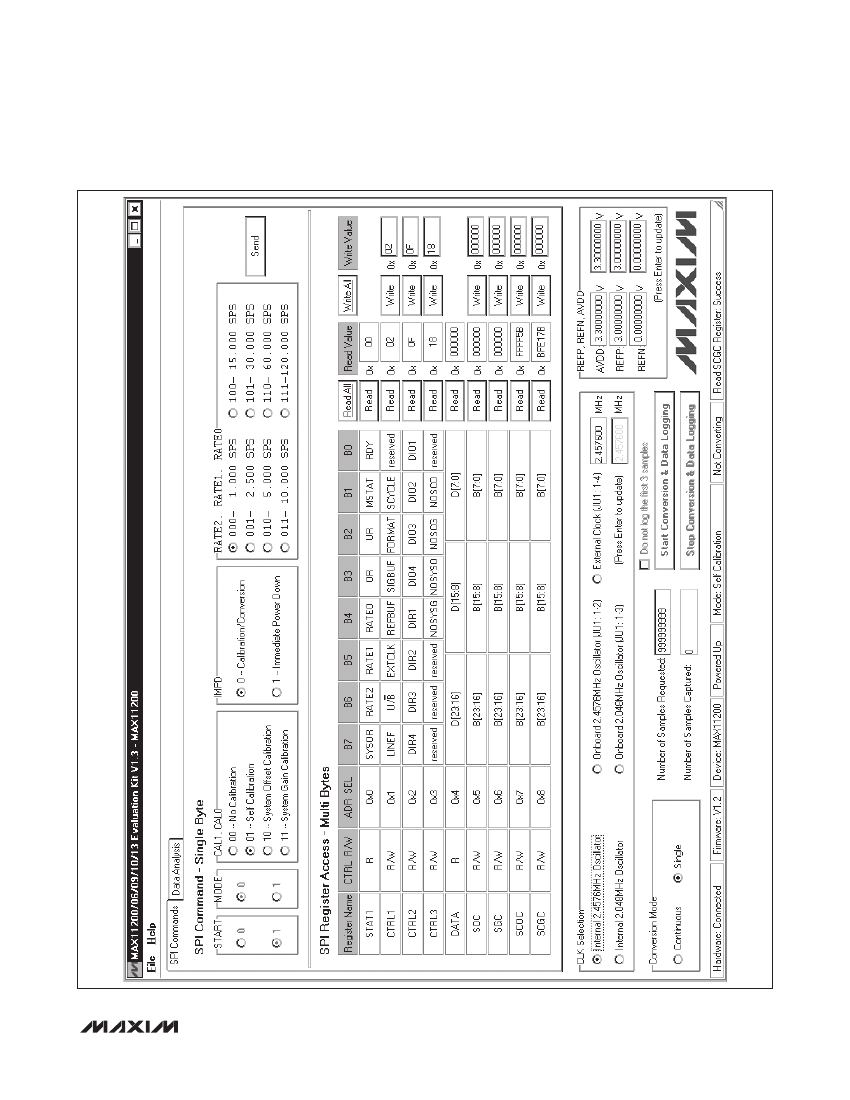

Figure 2. MAX11200/MAX11206/MAX11209/MAX11210/MAX11213 EV Kit Software (Main Window)
_______________________________________________________________________________________
5
