WISE-1540
NEW
M2.COM Mesh Network IoT Node
Features
ARM Cortex-M4 Core Processor
IEEE 802.15.4e standard with self-healing mesh network
99.999% Data Reliability and power optimization
Rich interface for sensor and I/O control
Support wide temperature -40 ~ 85 °C
SRRC
RoHS
COMPLIANT
2002/95/EC
Introduction

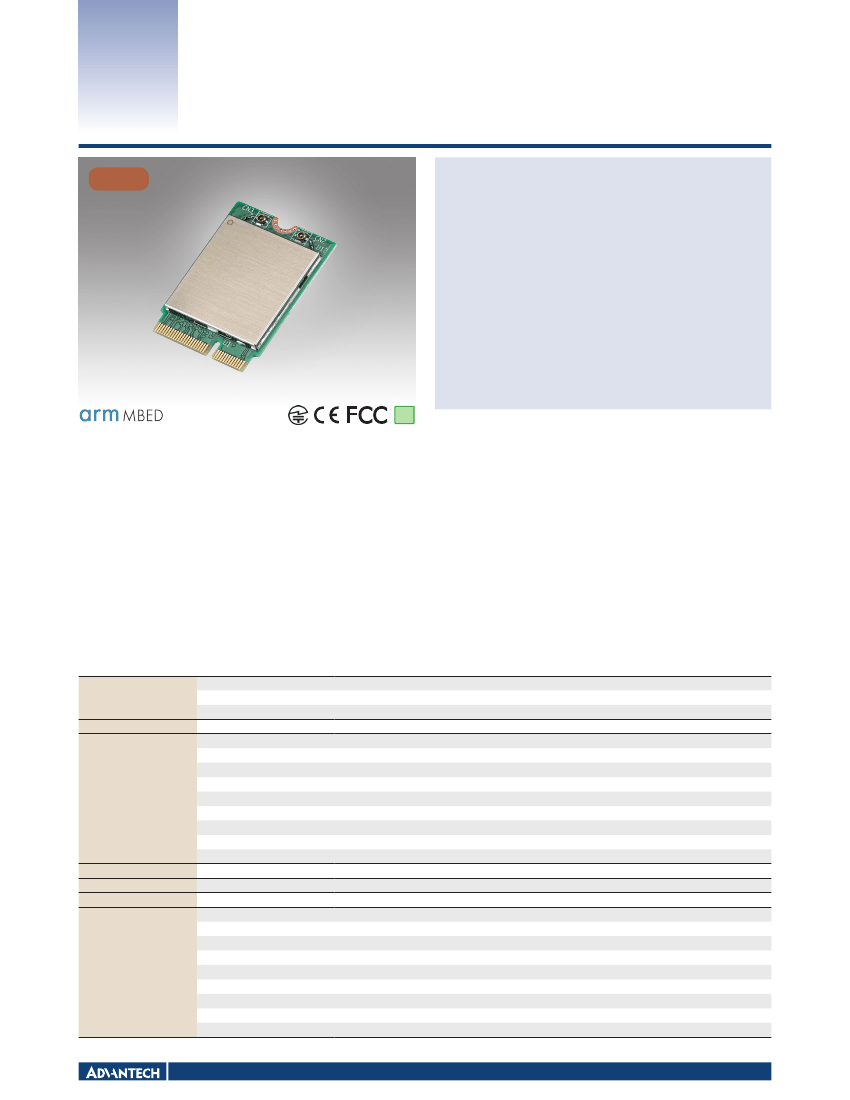

WISE-1540 is M2.COM standardized IoT Sensor Node integrated with ARM Cortex-M4 Processor and Dust’s time-synchronized SmartMesh networks. With time slotted channel
hopping (TSCH) link layer, all nodes are synchronized to within less than a millisecond. Time in the network is organized into time slots, which enables collision-free packet exchange
and per-transmission channel-hopping.
All nodes within SmartMesh networks could route, source or terminate data while providing years of battery powered operation. SmartMesh Networks are the great fit for Industry 4.0
Applications to deliver a highly reliable network in the most challenging RF environments such as Machine diagnostics, Factory Automation, Environment Monitoring and Production
Efficiency. In the SmartMesh network, every device has one or more parents which provide redundant paths to overcome communications interruption due to interference, physical
obstruction or multi-path fading. If a packet transmission fails on one path, the next retransmission may try on a different path and different RF channel. Developer can be easily to
extend the network coverage via SmartMesh.
Advantech WISE-1540 also provide multi-interfaces for sensor and I/O control. With Arm mbed embedded microprocessor operating system and add-on software stacks, it's
convenient to support IoT communication protocols including LWM2M, CoAP and MQTT via WISE-3310 Mesh IoT Gateway. Data can be quickly and easily acquired and transformed
into a different format to communicate with WISE-PaaS, Mbed Cloud or other cloud services. Developer can build their application backbone faster and focus on their applications,
value-added services.
Specifications
Processor System
Form Factor
Standard
Frequency Band
Channels
Topology
Transmit Power
Receiver Sensitivity
RF Data Rate
Function
Antenna connector
CPU/MCU
RAM
Flash
STM ARM Cortex-M4 Processor
64 KB
256 KB
M.2 TYPE 2230-D3-E
IEEE 802.15.4e
2.4000~2.4835 GHz
15
Self-Healing Mesh Network
Up to +8 dBm
Up to -93 dBm
250 kbps
End node
MHF4 connector
-
-
-
UART 1 (4-wire, support RTC/CTS)
-
1
-
8
1
1
4
1, device only
Wireless Network
Ethernet
Cellular
GPS
UART
CANbus
I
2
C
I
2
S
GPIO
PWM
SPI
ADC
USB
I/O Interface
All product specifications are subject to change without notice.
Last updated: 23-Aug-2017
WISE-1540
Block Diagram
Antenna
MHF4 Conn.
UART (4-wires)
I
2
C
SPI
Transceiver
LTC5800-IPM
UART
MCU
STM32L443RC
GPIO x 8
PWM
ADC x 4
USB
UART & SPI
UART & JTAG
FFC connector
FFC connector
Specifications Cont.
Programing Port
Debug Port
Watchdog Timer
LED
Button
Serial Port
Switch
SD Socket
USB Port
SIM Socket
Mini PCIe Socket
Power Supply Voltage
Power Consumption
Operational Temperature
Operating Humidity
Dimensions (W x D)
Mounting
Weight
-
1 develop and debug with WISE-ED22
-
-
-
-
-
-
-
-
-
3.3V
TBC
-40 ~ 85 °C
5% ~ 95% Relative Humidity, non-condensing
22 x 30 mm
-
3g
Mbed OS 5.4
CE/FCC/IC/TELEC/SRRC/RCM/NCC
Indicator and Button
Expansion
Power
Environment
Mechanical
Operating System
Certification
Ordering Information
Part No.
WISE-1540WMB-SDA10
Description
WISE-1540 M2.COM Mesh network IoT Node
Optional Accessories
Part No.
WISE-DB1500-0IA1E
1750008001-01
1750007622-01
1750007965-01
1700015038
9696ED2200E
1931000590
1700023619-01
1700025876-01
Description
M2.COM evaluation carrier board
Antenna 2.4G/5GHz 5dBi
Antenna 2.4Ghz 3.5dBi
Antenna Cable R/P SMA (M) to MHF4, 300mm
FPC Cable 10P-0.5mm 7.9cm
ASS'Y WISE-ED22 A101-1 M2.COM Daughter
Screw M2.5x5L F/S D=5.3 H=0.8 (1+) ST Ni
A cable USB-A 4P(M)/micro USB 5P(M) 1m
M cable USB-A 4P(M)/Plug-in 2P-5.0 90CM
Online Download
www.advantech.com/products
75 Pin M.2 Connector
