MAX6079 Evaluation Kit
Evaluates: MAX6079
General Description
The MAX6079 evaluation kit (EV kit) provides a
proven design to evaluate the MAX6079 low-noise
precision ceramic voltage reference. The output voltage
is set at 2.5V.
The EV kit comes installed with a MAX6079ALA25+ in
8-pin ceramic Leadless Chip Carrier (LCC) package.
Quick Start
Required Equipment
●
MAX6079 EV kit
●
Voltmeter
●
+5V DC power supply
Procedure
1)
Features
●
Configurable for Precision Current Source
●
Proven PCB Layout
●
Fully Assembled and Tested
Ordering Information
appears at end of data sheet.
The EV kit is fully assembled and tested. Follow the steps
below to verify board operation:
Set the DC power supply to +5V. Connect the positive
terminal to the IN test point and the negative terminal
to GNDF test point.
Connect the voltmeter between OUTF and GNDF
test point.
Turn on the DC power supply.
Verify that the voltmeter displays 2.5V.
2)
3)
4)

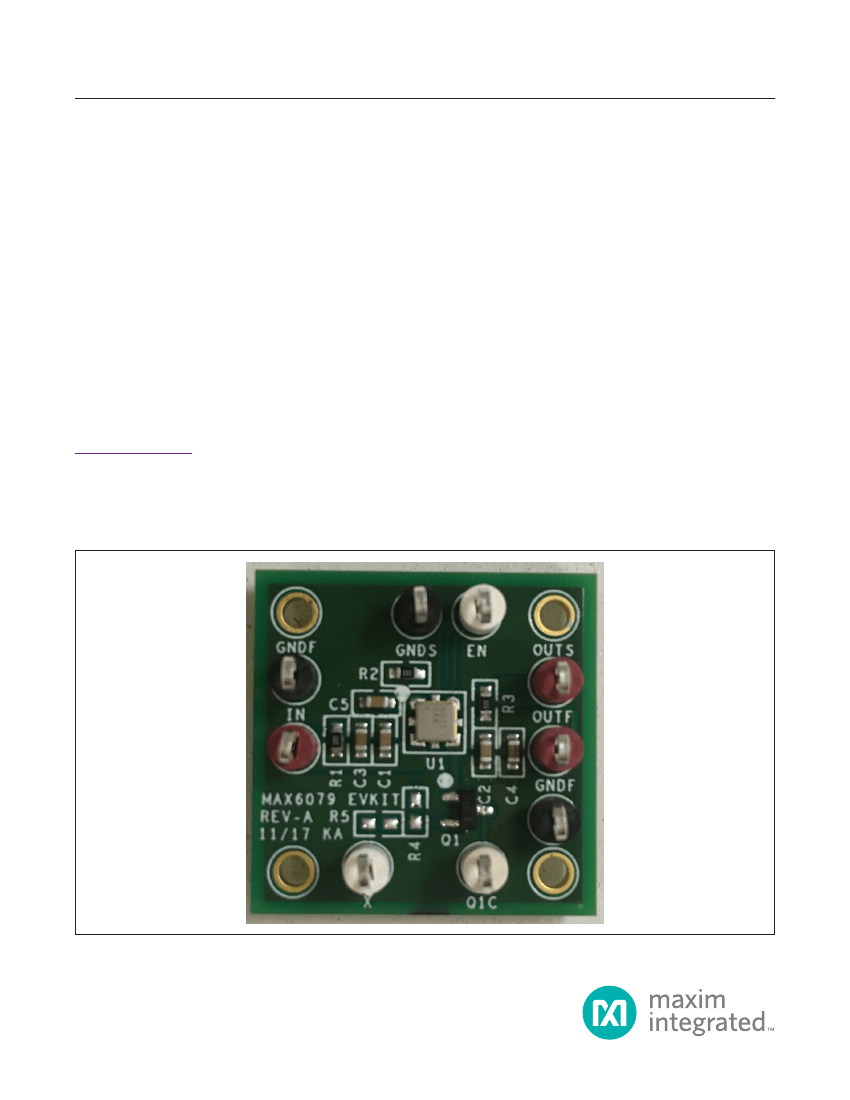

MAX6079 EV Kit Photo
319-100270; Rev 0; 10/18
MAX6079 Evaluation Kit
Evaluates: MAX6079
General Description of Hardware
Precision Current Source
The MAX6079 EV kit demonstrates the MAX6079, a very
low noise and low-drift voltage reference in a small 8-pin
LCC package. The EV kit requires a +2.8V to +5.5V input
supply voltage at the IN pin for normal operation.
EN
To use the EV kit as a precision current source, remove
the resistor at R3, install a 0Ω resistor at location R4, and
connect the X test point to GNDF. Install an appropriate
resistor at location R5 to determine the current by using
the following equation.
I
SOURCE
=
V
OUT
R5
Drive the EN pin high to enable the MAX6079. Drive the
EN pin low to disable the device.
Ordering Information
PART
MAX6079EVKIT#
#Denotes RoHS compliant.
TYPE
EV Kit
MAX6079 EV Kit Bill of Materials
ITEM
1
REF_DES
C1, C2,
C5
QTY
3
MFG PART #
C0603C104K5RAC;
C1608X7R1H104K
C0603C105K4RAC;
GRM188R71C105KA12;
C1608X7R1C105K;
EMK107B7105KA
MANUFACTURER
KEMET; TDK
VALUE
0.1µF
DESCRIPTION
CAPACITOR; SMT (0603); CERAMIC CHIP; 0.1µF; 50V;
TOL = 10%; TG = -55°C TO +125°C; TC = X7R;
2
C3, C4
2
KEMET/MURATA/
TDK/TAIYO YUDEN
1µF
CAPACITOR; SMT (0603); CERAMIC CHIP; 1µF; 16V;
TOL = 10%; MODEL =; TG = -55°C TO +125°C; TC = X7R
3
X, EN, Q1C
3
5007
KEYSTONE
N/A
TEST POINT; PIN DIA = 0.125IN; TOTAL LENGTH = 0.35IN;
BOARD HOLE = 0.063IN; WHITE;
PHOSPHOR BRONZE WIRE SILVER PLATE FINISH;
TEST POINT; PIN DIA = 0.125IN; TOTAL LENGTH = 0.35IN;
BOARD HOLE = 0.063IN; BLACK;
PHOSPHOR BRONZE WIRE SILVER PLATE FINISH;
TEST POINT; PIN DIA = 0.125IN; TOTAL LENGTH = 0.35IN;
BOARD HOLE = 0.063IN;
RED; PHOSPHOR BRONZE WIRE SILVER PLATE FINISH;
TRANSISTOR, NPN, SOT-23, PD = 0.225W,
IC = 0.2A, VCEO = 40V
RESISTOR; 0603; 100KΩ; 1%; 100PPM; 0.1W; THICK FILM
RESISTOR; 0603; 0Ω; 0%; JUMPER; 0.10W; THICK FILM
EVKIT PART-IC; PACKAGE CODE: L8-1;
PACKAGE OUTLINE DRAWING: 21-100203;
PACKAGE LAND PATTERN: 90-100085
PCB:MAX6079
PACKAGE OUTLINE 0603 RESISTOR
4
TP1, TP2,
GNDS
3
5006
KEYSTONE
N/A
5
IN, OUTF,
OUTS
Q1
R1
R2, R3
3
5005
KEYSTONE
N/A
6
7
8
1
1
2
MMBT3904
ERJ3EKF1003
CRCW06030000ZS;
MCR03EZPJ000; ERJ-3GEY0R00
MAX6079ALA25+
MAX6079
N/A
ON SEMICONDUCTOR
PANASONIC
VISHAY DALE/ROHM/
PANASONIC
MAXIM
MAXIM
N/A
MMBT3904
100K
0
9
10
11
TOTAL
U1
PCB
R4, R5
DNP
1
1
0
20
MAX6079ALA25+
PCB
OPEN

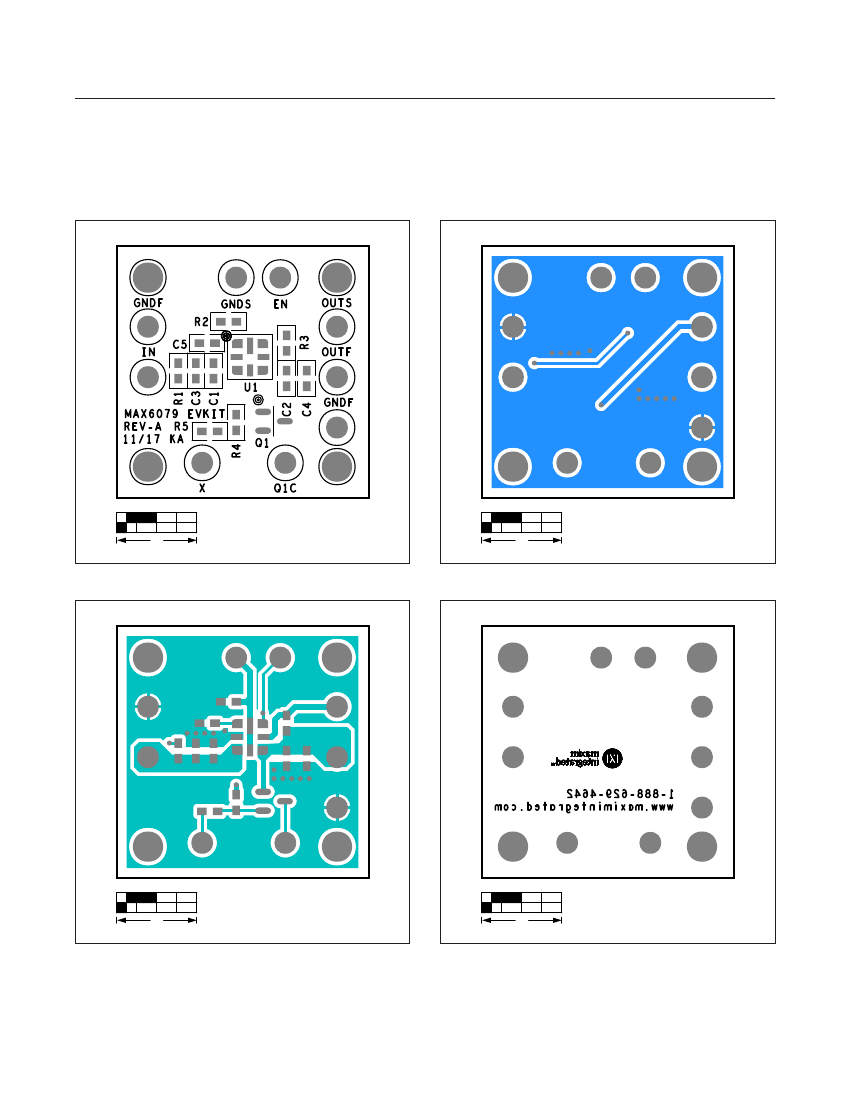

www.maximintegrated.com
Maxim Integrated
│
2
MAX6079 Evaluation Kit
Evaluates: MAX6079
Revision History
REVISION
NUMBER
0
REVISION
DATE
10/18
Initial release
DESCRIPTION
PAGES
CHANGED
—
For pricing, delivery, and ordering information, please contact Maxim Direct at 1-888-629-4642, or visit Maxim Integrated’s website at www.maximintegrated.com.
Maxim Integrated cannot assume responsibility for use of any circuitry other than circuitry entirely embodied in a Maxim Integrated product. No circuit patent licenses
are implied. Maxim Integrated reserves the right to change the circuitry and specifications without notice at any time.
Maxim Integrated and the Maxim Integrated logo are trademarks of Maxim Integrated Products, Inc.
© 2018 Maxim Integrated Products, Inc.
│
