VCNL4030X01
www.vishay.com
Vishay Semiconductors
Fully Integrated Proximity and Ambient Light Sensor With
Infrared Emitter, I
2
C Interface, and Interrupt Function
(with multiple slave addresses)
FEATURES
•
•
•
•

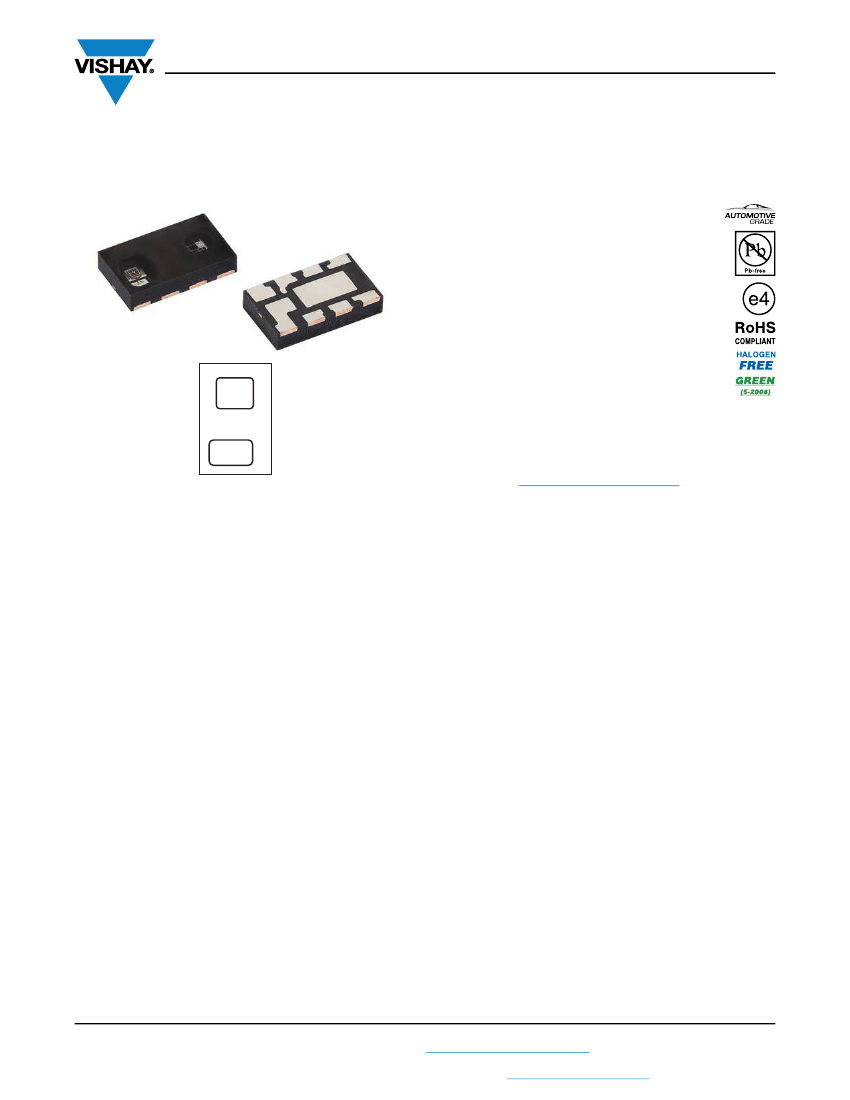

Package type: surface-mount
Dimensions (L x W x H in mm): 4.0 x 2.36 x 0.75
AEC-Q101 qualified
Integrated modules: infrared emitter (IRED),
ambient light sensor (ALS), proximity sensor
(PS), and signal conditioning IC
Operates ALS and PS in parallel structure
Filtron
TM
technology adoption for robust
background light cancellation
Low power consumption I
2
C (SMBus
compatible) interface
Orderable in four different slave addresses
Output type: I
2
C bus (ALS / PS)
Operation voltage: 2.5 V to 3.6 V
Floor life: 168 h, MSL 3, according to J-STD-020
Material categorization: for definitions of compliance
please see
www.vishay.com/doc?99912
•
•
•
V
DD
SCL
GND
IR anode
1
2
3
4
8
7
6
5
SDA
INT
LDR
IR cathode
•
•
•
•
•
DESCRIPTION
VCNL4030X01 integrates a proximity sensor (PS), ambient
light sensor (ALS), and a high power IRED into one small
package. It incorporates photodiodes, amplifiers, and
analog to digital converting circuits into a single chip by
CMOS process. The 16-bit high resolution ALS for excellent
sensing capabilities with sufficient selections to fulfill most
applications whether dark or high transparency lens design.
Both ALS and PS offer a programmable interrupt with
individual high and low thresholds offers the power savings
on the microcontroller.
The proximity sensor features an intelligent cancellation
scheme, so that cross talk is eliminated effectively. The
proximity’s smart persistence feature prevents the
misjudgment of proximity sensing with a fast response time.
Active force mode, one time trigger by one instruction, offers
more design flexibility to fulfill different kinds of applications
with more power savings.
The adoption of patented Filtron
TM
technology achieves the
closest ambient light spectral sensitivity to real human eye
responses and offers the best background light cancellation
capability (including sunlight) without utilizing the
microcontrollers’ resources. VCNL4030X01 provides an
excellent temperature compensation capability for keeping
the output stable over temperature. ALS and PS functions
are easily operated via the simple command format of I
2
C
(SMBus compatible) interface protocol. Operating voltage
ranges from 2.5 V to 3.6 V. VCNL4030X01 is packaged in a
lead-free 8-pin QFN package, which offers the best
market-proven reliability quality.
PROXIMITY FUNCTION
•
•
•
•
•
Immunity to red glow (940 nm IRED)
Programmable IRED sink current
Intelligent cancellation to reduce cross talk phenomenon
Smart persistence scheme to reduce PS response time
Selectable for 12- / 16-bit PS output data
AMBIENT LIGHT FUNCTION
•
•
•
•
High accuracy of ALS ± 10 %
Fluorescent light flicker immunity
Spectrum close to real human eye responses
Selectable maximum detection range (262 / 524 / 1048 /
2096 / 4192) lux with highest sensitivity 0.004 lux/step
INTERRUPT
• Programmable interrupt function for ALS and PS with
upper and lower thresholds
• Adjustable persistence to prevent false triggers for ALS
and PS
APPLICATIONS
• Proximity sensor for
- Mobile devices (e.g. smart phones, tablets) for touch
screen locking, power saving etc.
- Automotive for presence detection
• Integrated ambient light function for display / keypad
contrast control and dimming of mobile devices
• Collision detection in robots and toys
• Proximity / optical switch for consumer, computing,
automotive and industrial devices, and displays (like
notebooks, tablet PCs, and automotive touch panels)
• Dimming control for consumer, computing, industrial, and
automotive displays
Rev. 1.0, 16-Aug-2018
Document Number: 84250
1
For technical questions, contact:
sensorstechsupport@vishay.com
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT
www.vishay.com/doc?91000
VCNL4030X01
www.vishay.com
Vishay Semiconductors
BASIC CHARACTERISTICS
(T
amb
= 25 °C, unless otherwise specified)
PARAMETER
Supply voltage
Supply current
I
2
C supply voltage
ALS shut down
PS shut down
Logic high
I
2
C signal input
Logic low
Logic high
Logic low
Peak sensitivity wavelength of
ALS
Peak sensitivity wavelength of PS
Full ALS counts
Full PS counts
ALS sensing tolerance
Detectable
intensity
ALS dark offset
PS detection range
Operating temperature range
LED_Anode voltage
IRED driving current
(3)
TEST CONDITION
SYMBOL
V
DD
MIN.
2.5
-
-
1.8
-
-
1.55
-
1.4
-
-
-
-
-
-
-
-
0
0
TYP.
-
300
0.2
-
200
260
-
-
-
-
550
850
-
-
-
0.004
4192
-
-
-
-
200
MAX.
3.6
-
-
5.0
-
-
-
0.4
-
0.4
-
-
65 535
4096 / 65 535
± 10
-
-
3
300
+105
5.0
-
UNIT
V
μA
μA
V
μA
μA
V
Excluded LED driving
Light condition = dark, V
DD
= 3.3 V
I
DD
I
DD
(SD)
V
PULL UP
ALS disable, PS enable
ALS enable, PS disable
V
DD
= 3.3 V
I
ALSSD
I
PSSD
V
IH
V
IL
V
IH
V
IL
λ
p
λ
p
V
DD
= 2.6 V
V
nm
nm
steps
steps
%
lx
steps
mm
°C
V
mA
16-bit resolution
12-bit / 16-bit resolution
White LED light source
Minimum
Maximum
ALS_IT = 800 ms, 1 step
(1)(2)
ALS_IT = 50 ms, 65 535 step
(1)(2)
ALS_IT = 50 ms, normal sensitivity
(1)
Kodak gray card
T
amb
-40
-
-
Notes
(1)
Test condition: V
DD
= 3.3 V, temperature: 25 °C
(2)
Maximum detection range to ambient light can be determined by ALS refresh time adjustment. Refer to table “ALS Resolution and Maximum
Detection Range”
(3)
Programmable between 50 mA and 200 mA; based on IRED on / off duty ratio = 1/40, 1/80, 1/160, and 1/320
