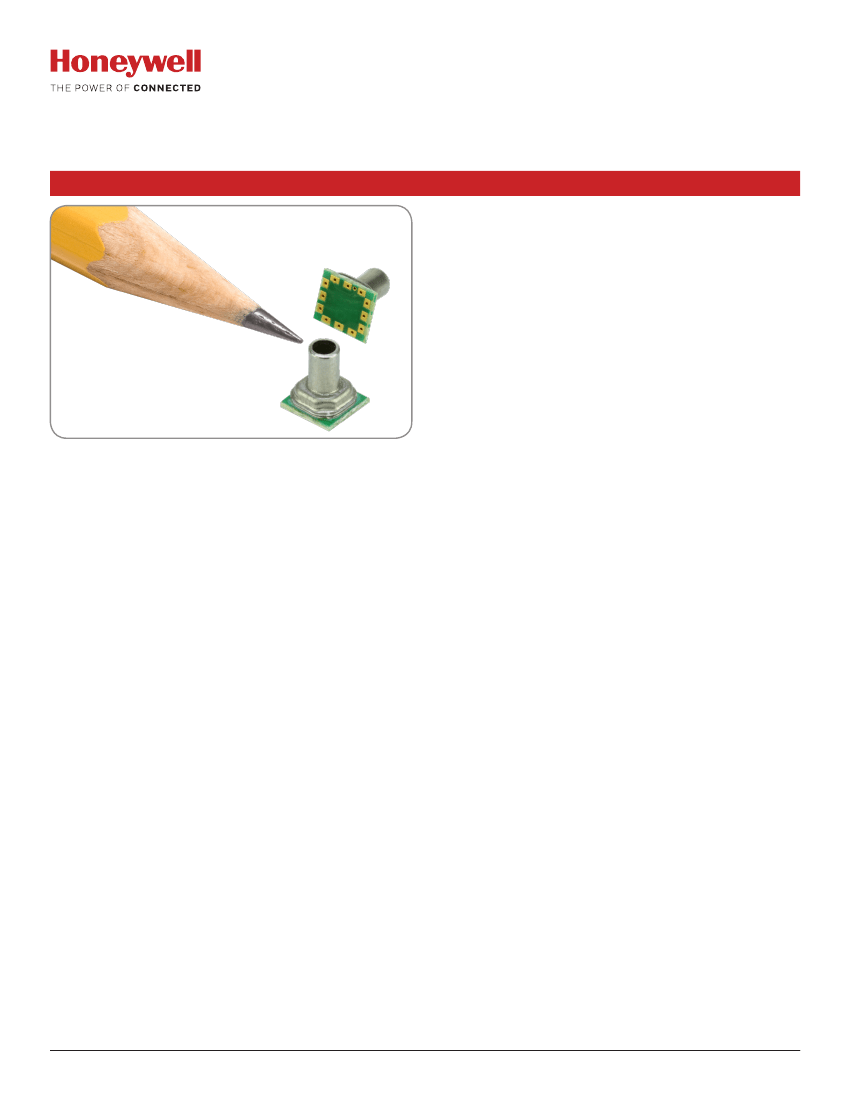

MicroPressure Board Mount Pressure Sensors
FEATURES
•
•
•
•
•
•
•
•
•
•
•
•
•
•
MPR Series—Compact, High Accuracy, Compensated/Amplified
32332628
Datasheet
Issue D
DESCRIPTION
The MPR Series is a very small piezoresistive silicon pressure
sensor offering a digital output for reading pressure over the
specified full scale pressure span and temperature range. It
is calibrated and compensated over a specific temperature
range for sensor offset, sensitivity, temperature effects,
and non-linearity using an on-board Application Specific
Integrated Circuit (ASIC). This product is designed to meet
the requirements of higher volume medical (consumer and
non-consumer) devices, commercial appliance, and industrial/
HVAC applications.
5 mm x 5 mm [0.20 in x 0.20 in] package footprint
Calibrated and compensated
60 mbar to 2.5 bar | 6 kPa to 250 kPa | 1 psi to 30 psi
24-bit digital I
2
C or SPI-compatible output
IoT (Internet of Things) ready interface
Low power consumption (<10 mW typ.), energy efficient
Stainless steel pressure port
Compatible with a variety of liquid media
Absolute and gage pressure types
Total Error Band after customer auto-zero: As low as ±1.5 %FSS
Compensated temperature range: 0ºC to 50ºC [32ºF to 122ºF]
REACH and RoHS compliant
Meets IPC/JEDEC J-STD-020D.1 Moisture Sensitivity Level 1
Select sensors available on breakout board for easy evaluation
and testing
DIFFERENTIATION
• Application-specific design addresses various application
needs and challenges.
• Digital output: Plug and play feature enables ease of
implementation and system level connectivity.
• Total Error Band: Provides true performance over the
compensated temperature range, which minimizes the
need to test and calibrate every sensor, thereby potentially
reducing manufacturing cost; improves sensor accuracy and
offers ease of sensor interchangeability due to minimal part-
to-part variation. (See Figure 1.)
VALUE TO CUSTOMERS
• Very small form factor: Enables portability by addressing
weight, size, and space restrictions; occupies less area on the
PCB.
• Wide pressure ranges simplify use.
• Enhances performance: Output accelerates performance
through reduced conversion requirements and direct
interface to microprocessors.
• Value solution: Cost-effective, higher volume solution with
configurable options.
• Meets IPC/JEDEC J-STD-020D.1 Moisture Sensitivity Level
1 requirements: Allows avoidance of thermal and mechanical
damage during solder reflow attachment and/or repair that
lesser rated sensors may incur; allows unlimited floor life
when stored as specified (simplifying storage and reducing
scrap); eliminates lengthy bakes prior to reflow, and allows
for lean manufacturing due to stability and usability shortly
after reflow.
• Low power/energy efficient: Reduces system power
requirements and enables extended battery life.
POTENTIAL APPLICATIONS
• Consumer medical: Non-invasive blood pressure monitoring,
negative-pressure wound therapy, breast pumps, mobile
oxygen concentrators, airflow monitors, CPAP water tanks,
and medical wearables
• Non-consumer medical: Invasive blood pressure monitors,
ambulatory blood pressure measurement
• Industrial: Air braking systems, gas and water meters
• Consumer: Coffee machines, humidifiers, air beds, washing
machines, dishwashers
PORTFOLIO
The MPR Series joins an extensive line of board mount
pressure sensors for potential use in medical, industrial, and
consumer applications.
Sensing and Internet of Things
MicroPressure Board Mount Pressure Sensors,
MPR Series
Table of Contents
General Specifications
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-4
Product Nomenclature and Order Guide
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
Pressure Range Specifications:
60 mbar to 2.5 bar . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
6 kPa to 250 kPa . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
1 psi to 30 psi . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
1.0
2.0
3.0
4.0
5.0
General Information
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Pinout and Functionality
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Start-Up Timing
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Power Supply Requirement
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Reference Circuit Design
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
5.1 I
2
C and SPI Circuit Diagrams . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
5.2 Bypass Capacitor Use . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
6.0
I
2
C Communications
6.1 I
2
C Bus Configuration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
6.2 I
2
C Data Transfer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
6.3 I
2
C Sensor Address . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
6.4 I
2
C Pressure Reading . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
6.5 I
2
C Status Byte . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
6.6 I
2
C Communications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
6.6.1 Output Measurement Command . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
6.6.2 I
2
C Slave Address of 0x18 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
6.7 I
2
C Timing and Level Parameters . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
7.0
SPI Communications
7.1 SPI Definition . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
7.2 SPI Data Transfer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
7.3 SPI Pressure Reading . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
7.4 SPI Status Byte . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
7.5 SPI Communications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
7.6 SPI Timing and Level Parameters . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
8.0
MPR Series Digital Output Pressure Calculation
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16 .
Product Dimensions
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .17
Recommended PCB Pad Layout.
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .17
Product Tape and Reel Dimensions
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
Recommended Pick and Place Geometry
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
Recommended Tubing
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
Additional Information
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . back page
2
sensing.honeywell.com
MicroPressure Board Mount Pressure Sensors,
MPR Series
Figure 1. TEB Components for the MPR Series
Total Error Band (TEB) is a single specification that includes
the major sources of sensor error. TEB should not be
confused with accuracy, which is actually a component of
TEB. TEB is the worst error that the sensor could experience.
Honeywell uses the TEB specification in its datasheet
because it is the most comprehensive measurement of
a sensor’s true accuracy. Honeywell also provides the
accuracy specification in order to provide a common
comparison with competitors’ literature that does not use
the TEB specification.
Many competitors do not use TEB—they simply specify
the accuracy of their device. Their accuracy specification,
however, may exclude certain parameters. On their
datasheet, the errors are listed individually. When combined,
the total error (or what would be TEB) could be significant.
Sources of Error
Offset
Full Scale Span
Pressure Non-Linearity
Pressure Hysteresis
Pressure Non-Repeatability
Thermal Effect on Offset
Thermal Effect on Span
Thermal Hysteresis
Accuracy
BFSL
Total
Error
Band
Table 1. Absolute Maximum Ratings
1
Characteristic
Supply voltage (V
supply
)
Voltage on any pin
ESD susceptibility (human body model)
Storage temperature
Soldering peak reflow temperature and time
1
Min.
-0.3
-0.3
—
-40 [-40]
Max.
3.6
V
supply
+ 0.3
4
85 [185]
15 s max. at 250°C [482°F]
Unit
Vdc
V
kV
°C [°F]
Absolute maximum ratings are the extreme limits the device will withstand without damage.
Table 2. Environmental Specifications
Characteristic
Humidity:
external surfaces
internal surfaces
Vibration
Shock
Solder reflow
Table 3. Wetted Materials
Component
Port
Adhesives
Electronic components
Material
304 stainless steel
epoxy
not exposed (protected by gel)
Parameter
0 %RH to 95 %RH, non-condensing
0 %RH to 100 %RH, condensing
10 g, 10 Hz to 2 kHz
50 g, 6 ms duration
J-STD-020-D.1 Moisture Sensitivity Level 1 (unlimited shelf life when stored at <30°C/85 %RH)
Sensing and Internet of Things
3
MicroPressure Board Mount Pressure Sensors,
MPR Series
Table 4. Sensor Pressure Types
Pressure Type
Absolute
Gage
Description
Output is proportional to the difference between applied pressure and a built-in vacuum reference.
Output is proportional to the difference between applied pressure and atmospheric (ambient) pressure.
Table 5. Operating Specifications
Characteristic
Supply voltage (V
supply
):
1, 2
Supply current at 3.3 Vdc:
standby mode
active mode
Power consumption
Operating temperature range
3
Compensated temperature range
4
Startup time (power up to data ready)
Data rate
I
2
C/SPI voltage level:
low
high
Pull up on MISO, SCLK, SS, MOSI
Accuracy
5
Resolution:
transfer function A
transfer function B
transfer function C
1
Min.
1.8
—
—
—
-40 [-40]
0 [32]
—
—
—
80
1
—
14.0
13.5
14.0
Typ.
3.3
0.0005
1.7
10
—
—
—
200
—
—
—
—
—
—
—
Max.
3.6
—
—
—
85 [185]
50 [122]
2.5
—
20
—
—
±0.25
—
—
—
Unit
Vdc
mA
mW
°C [°F]
°C [°F]
ms
samples per second
%V
supply
kOhm
%FSS BFSL
6
bits
Ratiometricity of the sensor (the ability of the device output to scale to the supply voltage):
Achieved within the specified
operating voltage.
2
The sensor is not reverse polarity protected. Incorrect application of supply voltage or ground to the wrong pin may cause
electrical failure.
3
Operating temperature range:
The temperature range over which the sensor will produce an output proportional to pressure.
4
Compensated temperature range:
The temperature range over which the sensor will produce an output proportional to pressure
within the specified performance limits (Total Error Band).
5
Accuracy:
The maximum deviation in output from a Best Fit Straight Line (BFSL) fitted to the output measured over the pressure
range. Includes all errors due to pressure non-linearity, pressure hysteresis, and non-repeatability.
6
Full Scale Span (FSS):
The algebraic difference between the output signal measured at the maximum (Pmax.) and minimum
(Pmin.) limits of the pressure range. (See Figure 2 for pressure ranges.)
4
sensing.honeywell.com
MicroPressure Board Mount Pressure Sensors,
MPR Series

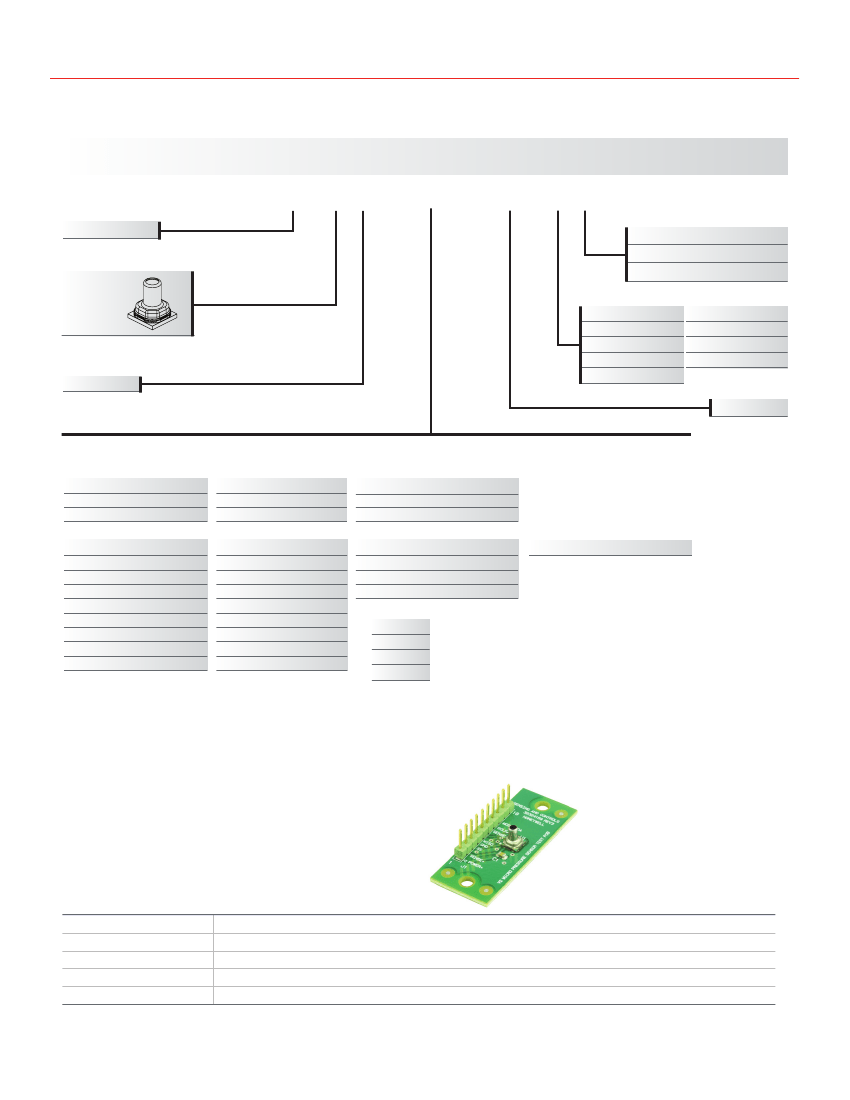

Figure 2. Product Nomenclature
For example,
MPRLS0025PA00001A
defines an MPR Series pressure sensor, long port, silicone gel, 0 psi to 25 psi absolute pressure
range, I
2
C, address 0x18, 10% to 90% of 2
24
counts transfer function, no breakout board.
Product Series
MPR
MPR L S 0025PA 0000 1 A
Transfer Function
2
A
B
C
S
0
1
2
3
SPI
I
2
C, Address 0x08
I
2
C, Address 0x18
I
2
C, Address 0x28
I
2
C, Address 0x38
10% to 90% of 2
24
counts
2.5% to 22.5% of 2
24
counts
20% to 80% of 2
24
counts
Pressure Port
L
Long
Output Type
4
5
6
7
I
2
C, Address 0x48
I
2
C, Address 0x58
I
2
C, Address 0x68
I
2
C, Address 0x78
Gel
S
Silicone gel
Low Pressure
0000
Pressure Range, Unit and Reference
1
Absolute
0001BA
01.6BA
02.5BA
0060MG
0100MG
0160MG
0250MG
0400MG
0600MG
0001BG
01.6BG
02.5BG
0 bar to 1 bar
0 bar to 1.6 bar
0 bar to 2.5 bar
Absolute
0100KA
0160KA
0250KA
0006KG
0010KG
0016KG
0025KG
0040KG
0060KG
0100KG
0160KG
0250KG
0 kPa to 100 kPa
0 kPa to 160 kPa
0 kPa to 250 kPa
Absolute
0015PA
0025PA
0030PA
0001PG
0005PG
0015PG
0030PG
0 psi to 15 psi
0 psi to 25 psi
0 psi to 30 psi
Gage
0 mbar to 60 mbar
0 mbar to 100 mbar
0 mbar to 160 mbar
0 mbar to 250 mbar
0 bar to 400 mbar
0 bar to 600 mbar
0 bar to 1 bar
0 bar to 1.6 bar
0 bar to 2.5 bar
Gage
0 kPa to 6 kPa
0 kPa to 10 kPa
0 kPa to 16 kPa
0 kPa to 25 kPa
0 kPa to 40 kPa
0 kPa to 60 kPa
0 kPa to 100 kPa
0 kPa to 160 kPa
0 kPa to 250 kPa
Gage
0 psi to 1 psi
0 psi to 5 psi
0 psi to 15 psi
0 psi to 30 psi
Gage
0300YG
0 mmHg to 300 mmHg
N
G
H
C
inH
2
0
MPa
HPa
cmH
2
0
Other calibration
units may be
specified
.
1
The MPR Series is available in a number of configurations. Contact Honeywell or your authorized distributor for a current list of
available configurations. For applications above 250,000 units per year, additional configurations are available.
Transfer Function varies by Pressure Range selection, see Tables 6-8 for allowed values.
2
MPR Series Sensor Mounted on a Breakout Board
Breakout boards, designed for use with the Honeywell
SEK002 Sensor Evaluation Kit, are available with the
sensor already mounted.
Order using the catalog listings in the table below.
MPR Series mounted on a
breakout board.
Catalog Listing
MPRLS0025PA00001AB
MPRLS0015PA0000SAB
MPRLS0001PG0000SAB
MPRLS0300YG00001BB
Description
Breakout board with 0 psi to 25 psi absolute sensor, long port, with gel, I
2
C = 0x18, transfer function A
Breakout board with 0 psi to 15 psi absolute sensor, long port, with gel, SPI, transfer function A
Breakout board with 0 psi to 1 psi gage sensor, long port, with gel, SPI, transfer function A
Breakout board with 0 mmHg to 300 mmHg gage sensor, long port, with gel, I
2
C = 0x18, transfer function B
Sensing and Internet of Things
5
京公网安备 11010802033920号
EEWORLD
