EVAL6494L datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Embedded solution> Engineering tools> Power management IC development tools> EVAL6494L

EVAL6494L: DescriptionPower management IC development toolDemonstration board for L6494L gate driver; CategoryEmbedded solution Engineering tools Power management IC development tools; File Size488KB，8 Pages; ManufacturerSTMicroelectronics; Websitehttp://www.st.com/; Environmental Compliance

Download Datasheet Parametric View All

EVAL6494L Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	EVAL6494L	-	-	View	Buy Now

EVAL6494L Overview

Power management IC development toolDemonstration board for L6494L gate driver

EVAL6494L Parametric

Parameter Name	Attribute value
Maker	STMicroelectronics
Product Category	Power Management IC Development Tools
product	Evaluation Boards
type	Gate Drivers
Tools for assessment	L6494L
Input voltage	3.3 V, 5 V
Output current	2.5 A
series	EVAL6494L
Factory packaging quantity	1

Preview

Download Datasheet

View All

EVAL6494L

Demonstration board for L6494L gate driver

Data brief

Description

The L6494L is a high voltage device

manufactured with the BCD6 “OFF-LINE”

technology. It is a single-chip half-bridge gate

driver for N-channel power MOSFETs or IGBTs.

Both device outputs can sink 2.5 A and source 2

A, making the L6494L particularly suited for

medium and high capacity power

MOSFETs\IGBTs.

The integrated bootstrap diode as well as all of

the integrated features of this driver make the

application's PCB design simpler and more

compact, and help reducing the overall bill of

material.

Features



Driver current capability: 2 A source, 2.5 A sink



Integrated bootstrap diode



Single input and shutdown pin



Adjustable deadtime



3.3 V, 5 V TTL/CMOS inputs with hysteresis



UVLO on both high-side and low-side sections



dV/dt immunity: 50 V/ns in full temperature

range



Compact and simplified layout



Bill of material reduction



Flexible, easy and fast design

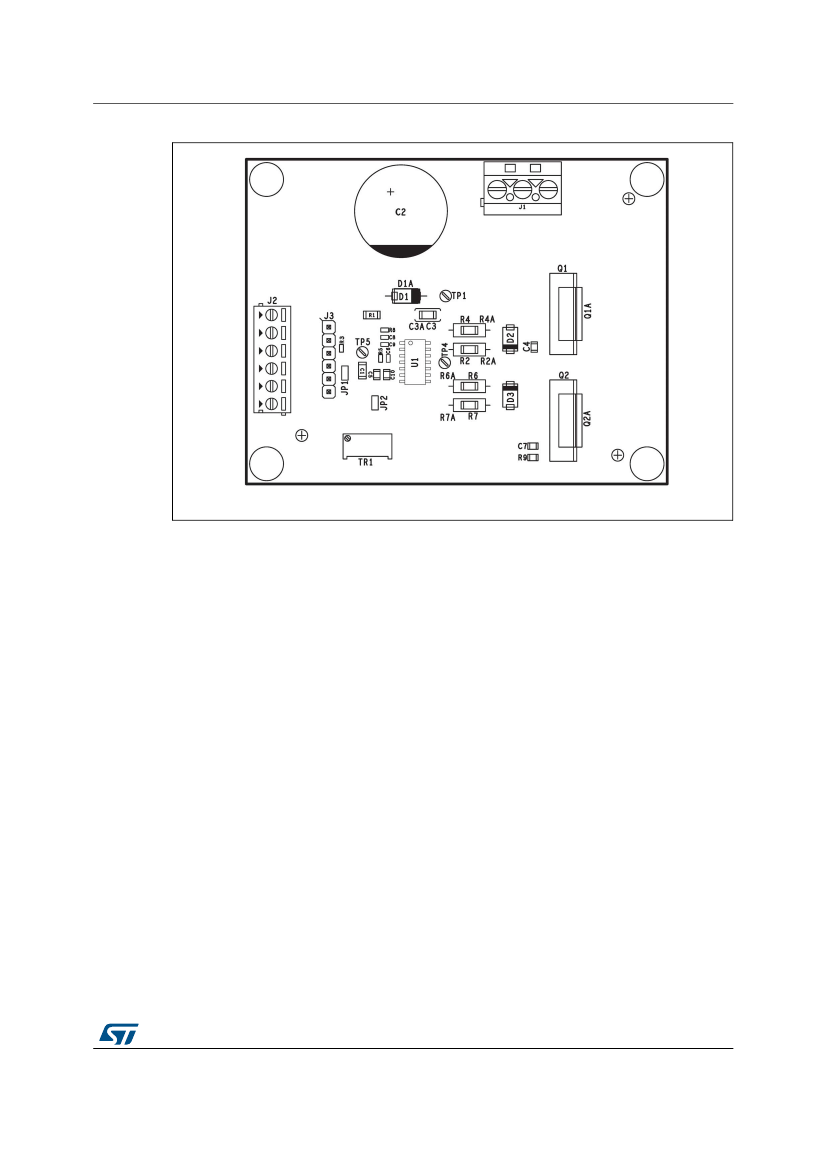

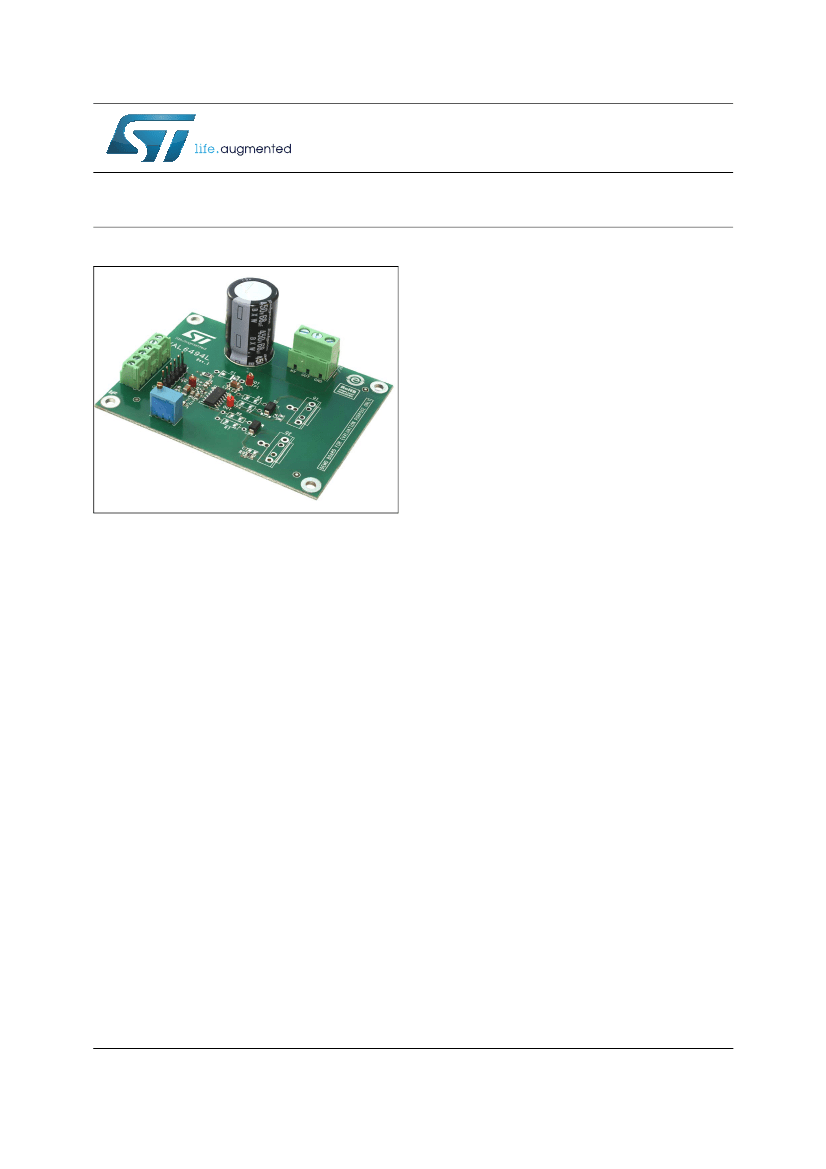

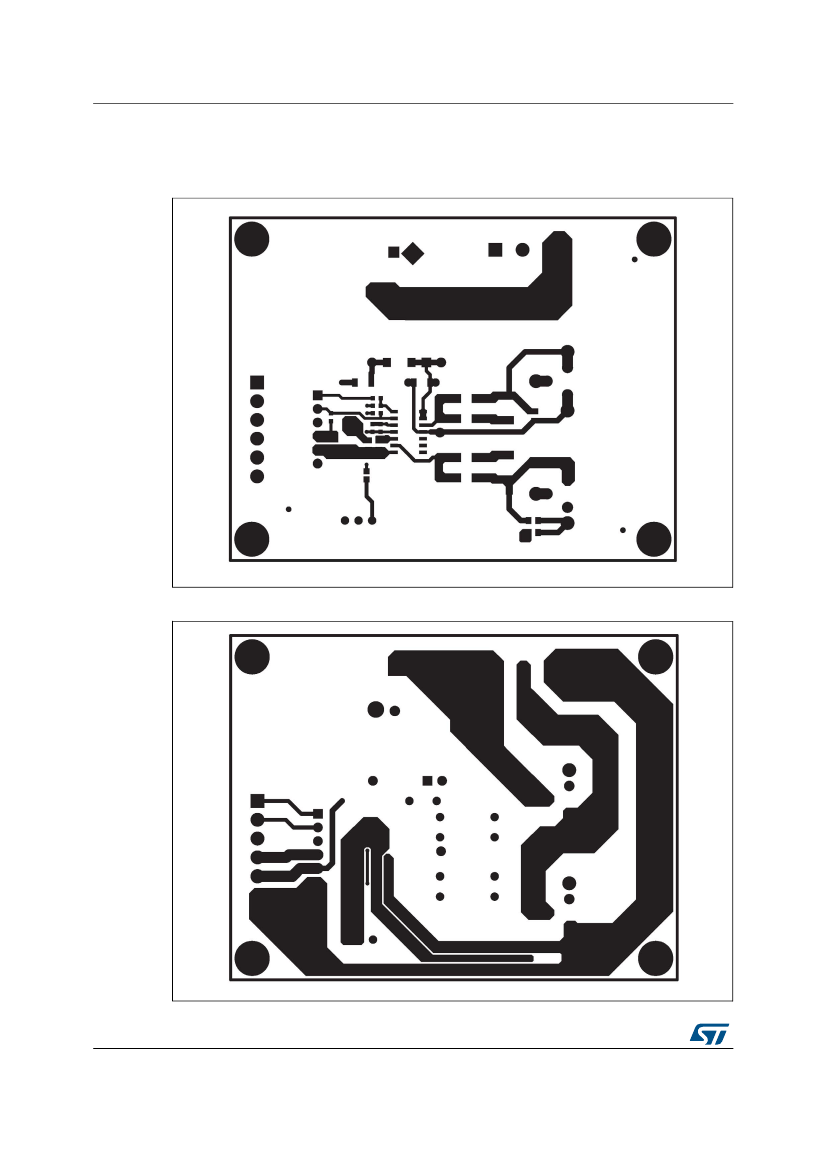

The EVAL6494L board allows evaluating all of the

L6494L features while driving a power switch in

the TO-220 or TO-247 package.

The board allows easily to select and modify the

values of relevant external components in order to

ease driver performance evaluation under

different applicative conditions and fine pre-tuning

of final application components.

November 2017

DocID031198 Rev 1

1/7

www.st.com

For further information contact your local STMicroelectronics sales office.
