ThingMagic M1-Mini
Smallest Embedded HF RFID Reader

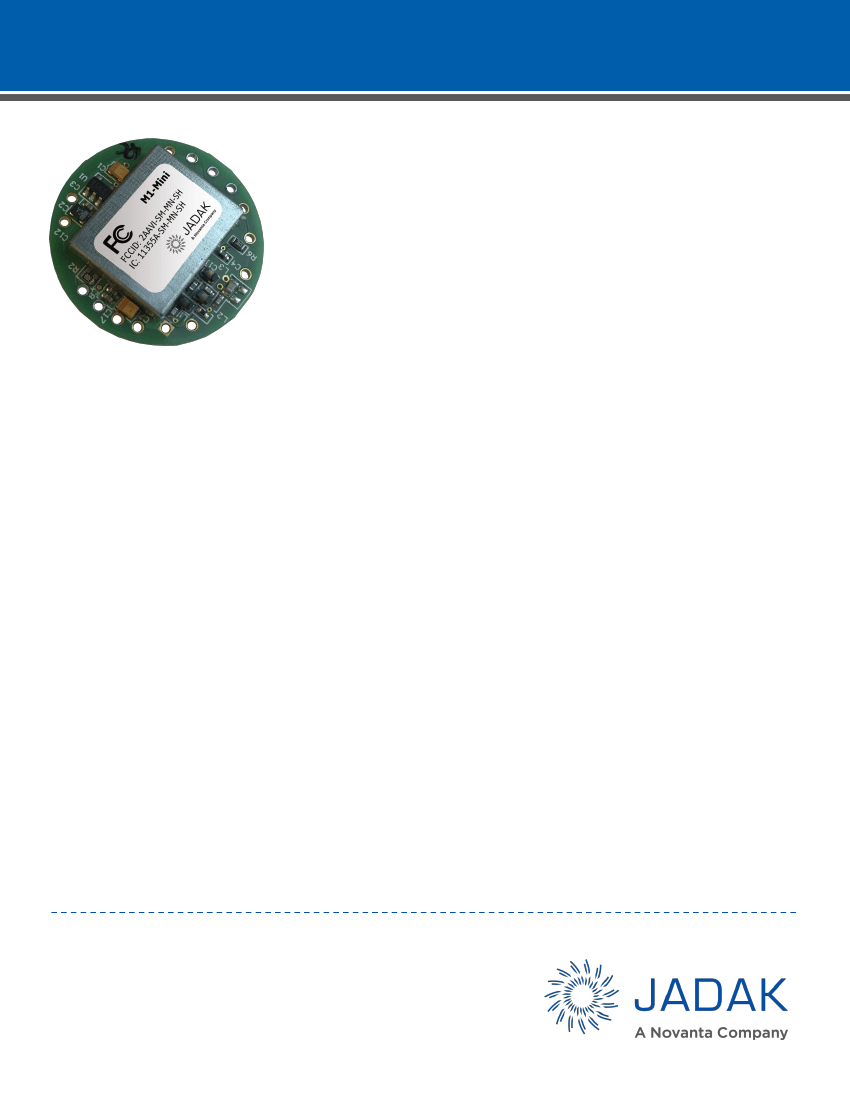

ThingMagic M1-Mini is the world’s smallest, self-contained, multi-
protocol embedded HF RFID reader. Designed to enable any
device with RFID reader technology, this low power, high
performance 13.56 MHz Original Equipment Manufacturer
(OEM) module is capable of reading to transponders based on
ISO 15693 and ISO 14443A
2
air interface protocols. It also writes
to ISO 15693 tags.
Diameter: 25.4mm Height: 3 mm nom
Features & Benefits:
• Smallest HF Reader on Market
• Easy to Embed in Devices for
Fast Integration
• Certifications:
➢
FCC Modular – USA
➢
IC – Canada
➢
R&TTE – EU-RED
• Reads Wide Variety of Tags
• Configurable Power Scheme
• Simple and Intuitive API
• Low Power Consumption
ThingMagic M1-Mini features an on-board antenna and the
ability to attach a standard 50-ohm external antenna for
improved read-range. With three available interface options,
ThingMagic M1-Mini provides communication to embedded host
systems. Its on-board power regulator circuit allows operation
from 3.2-6V. The power management intelligence allows current
to be set as low as 50
μA
(Sleep Mode), making it ideal for use in
battery operated devices. Further power efficiency is gained by
use of the Start-Up command. Software adjustable baud rates
from 4,800 to 57,600 bits per second offer choices to
accommodate host processor requirements.
With the variety of host interfaces, supply voltages, and
configurable parameters, the ThingMagic M1-Mini is easy to
embed.
Applications
•
•
•
•
Medical Equipment for Healthcare and Pharmaceutical
Industries
Industrial Equipment
Kiosks and Vending Machines
Mobile Devices, including Printers, Handhelds, and
Sensor Networks
ThingMagic M1-Mini
Ordering Information
Shielded Module with TTL Firmware
Shielded Module with I2C Firmware
Shielded Module with SPI Firmware
Shielded Module with External Antenna Support
Shielded Module Evaluation Kit
Transponder Support
1
Product Name
Tag-It
I•Code SL2
My-d
LRI512
EM 4135
PicoTag
3
Mifare
2
Mifare Ultralight
2
GemWave
Tag-It HF
I•Code SL1
AT88RF319
1
Firmware
SM-MN-SH
SM-MN-SH-I2C
SM-MN-SH-SPI
SM-MN-EX-SH
EV-MN-SH
Manufacturer
Texas Instruments
Philips
Infineon
ST Microelectronics
EM Microelectronics
Inside Contactless
Philips Infineon
Philips
TagSys
Texas Instruments
Philips
Atmel
Memory (bits)
HF-I 2K
1K
2.5k,10K
0.5K
2.2K
2K 16K
1K 4K (byte)
0.5K
ID only
0.25K
0.5K
32K
Protocol
ISO15693
ISO15693
ISO15693
ISO15693
ISO15693
Proprietary
ISO14443A
ISO14443A
Proprietary
Proprietary
Proprietary
ECMA-319
Version Dependent /
2
Tag ID Only /
3
No Anti-Collision
Frequency
13.56 MHz +/- 7 kHz
Antenna
Internal or external 50 ohm port
Physical
Diameter: 25.4mm
Height: 3 mm nom
Host Communication
Interfaces/ Data Rates
UART (TTL): 4800-57600 bps
I2C up to 400 kHz
SPI up to 3MHz
Effective Range
Internal Antenna, 48 mm x 76 mm
ISO15693 transponder: 5.0 cm
Internal Antenna, 38 mm x 22.5 mm
ISO 15693 transponder: 3.5 cm
(Individual results may vary with
environment)
Current Consumption
Transponder
Communication Rate
Sleep Mode- 60
μA
Idle Mode- 15mA
Scan Mode- 60mA
26 kbps ISO 15693
106 kbps ISO 14443A
Supply Voltage
3.2 - 6V
Certifications
ETSI EN 300-330 (RED 2014/53/EU), R&TTE
FCC 15.225 Full Modular Certification
IC (Industry Canada)
