Wireless Pulse Counter - Single Input
General Description
The ALTA wireless pulse counter can be connected to
the pulse output of a system (water meter, power meter,
etc.) to count the number of actuations within a given time
frame.
• Counts the number of pulses in given time frame, or
aggregates pulses in an ongoing accumulation.
•
3 filter settings: No filter, 4 Hz filter, and 40 Hz filter.
• Capable of counting passive (open/closed switch) and
active (Up to +15 VDC) pulses.
• Capable of counting the positive edge, negative edge,
or both edges of a pulse.
Features of Monnit ALTA Sensors
•
•
•
•
•
•
Wireless range of 1,200+ feet through 12+ walls *
Frequency-Hopping Spread Spectrum (FHSS)
Improved interference immunity
Improved power management for longer battery life **
(12+ years on AA batteries)
Encrypt-RF® Security (Diffie-Hellman Key Exchange
+ AES-128 CBC for sensor data messages)
Onboard data memory stores up to 512 readings
per sensor:
- 10-minute heartbeats = 3.5 days
- 2-hour heartbeats = 42 days
Over-the-air updates (future proof)
Free iMonnit basic online wireless sensor monitoring
and notification system to configure sensors, view
data and set alerts via SMS text and email
Principle of Operation
The ALTA wireless pulse counter is an electronic counter
capable of counting passive(open/closed switch) or active
(Up to +15 VDC) pulses. The counter includes 3 software
configurable low pass filter settings (No filter, 40 Hz filter,
or 4 Hz filter). The pulse counter filters pulses with pulse
widths greater than those designated in the technical
specifcations. For example, if the 4Hz filter is set, the
pulse counter will count a pulse if the pulse width is longer
than 250 ms, if the pulse width is shorter than 250 ms it
will be completely or partially filtered (See the Technical
Specification table for detailed filtering information). The
sensor can be set to send an alert through the iMonnit
Online Sensor Monitoring and Notification System when
a given number of pulses have been reached within a set
time frame. Alerts from the iMonnit system are sent as they
happen (in real time) via SMS text or email.
•
•
*
Actual range may vary depending on environment.
**
Battery life is determined by sensor reporting
frequency and other variables. Other power options
are also available.
Wireless Range Comparison
Wireless Range Comparison
Monnit ALTA
Monnit
Example Applications
•
•
•
•
•
•
Water, gas and air flow meters
Door access counter
Turn style counting
Forklift seat switches
Button or switch integration
Production line tracking
Wifi
Other Wireless Platforms
• Many additional applications
Bluetooth
PAGE 1

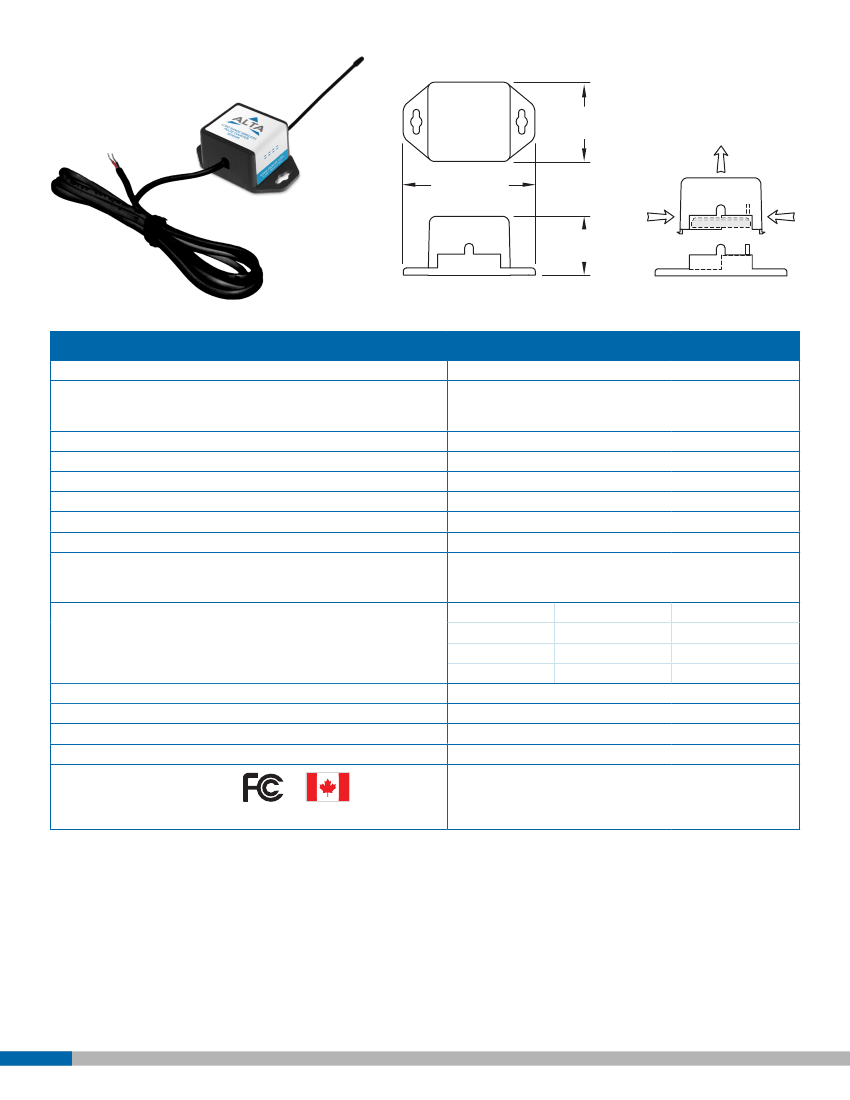

PinchPower™
Enclosures
1.125 in
(28.575 mm)
Pinch and Pull
To Change Battery
2.0 in
(50.8 mm)
CR2032 BATTERY
0.875 in
(22.225 mm)
ALTA Commercial Coin Cell Wireless Pulse Counter | Technical Specifications
Supply voltage
Current consumption
2.0–3.8 VDC *
0.2 µA (sleep mode), 0.7 µA (RTC sleep), 570 µA (MCU idle),
2.5 mA (MCU active), 5.5 mA (radio RX mode), 22.6 mA
(radio TX mode)
-7°C to +60°C (20°F to +140°F) **
+10°C to +50°C (+50°F to +122°F)
4294967296 (32 bit number)
0 to 15 Volts DC
High impedance (2-wire), 3 ft length
Positive and/or negative edge pulses
Open collector NPN switches (passive)
Mechanical switches (passive)
0–15V driven source (active)***
Max Pulse Rate
No Filter
4 Hz Filter
40 Hz Filter
Integrated memory
Wireless range
Security
Weight
Certifications
~ 2 KHz
~ 4 Hz
~ 40 Hz
Min Pulse Width*****
~ 0.5 ms
~ 250 ms
~ 25 ms
Operating temperature range (board circuitry and coin cell)
Optimal battery temperature range (coin cell)
Maximum count
Input voltage
Detection wires
Counter operation
Compatibility
Max input pulse rate/min pulse width with passive input ****
Up to 512 sensor messages
1,200+ ft non-line-of-sight
Encrypt-RF® (256-bit key exchange and AES-128 CTR)
0.7 ounces
Industry
Canada
900 MHz product; FCC ID: ZTL-G2SC1 and IC: 9794A-
G2SC1. 868 and 433 MHz product tested and found to
comply with: EN 300 220-2 V3.1.1 (2017-02), EN 300 220-2
V3.1.1 (2017-02) and EN 60950
*
**
***
****
*****
Hardware cannot withstand negative voltage. Take care when connecting a power device.
At temperatures above 100°C, it is possible for the board circuitry to lose programmed memory.
Low Pulse: 0 Volts to 0.2 * VBatt, High Pulse: 0.8 * VBatt to 15 Volts.
High pulse count rates can impact battery life. AA battery powered sensors are recommended if counting pulses faster than 1x per second.
Input pulse rate must be less than specified Max Pulse Rate and input pulse width must be greater than specified Min Pulse Width to ensure
the input pulse is counted.
PAGE 2

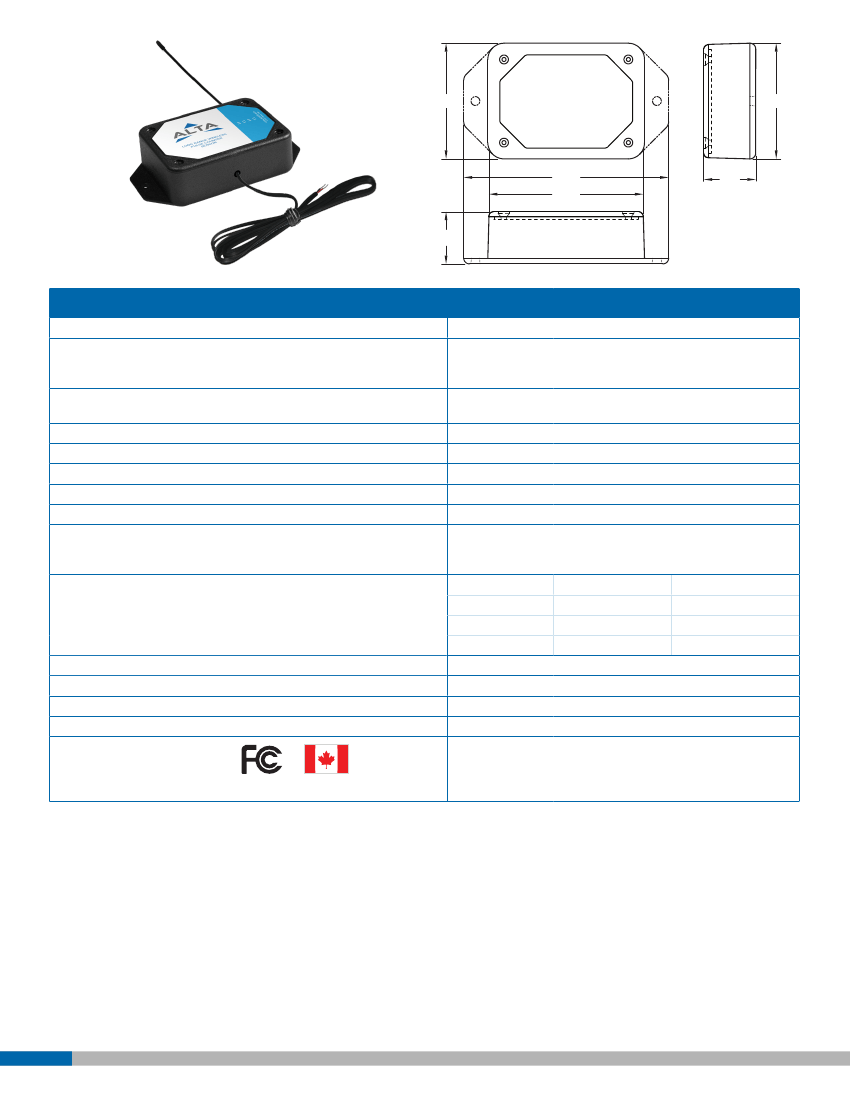

2.470
2.470
4.375
3.295
1.111
1.111
ALTA Commercial AA Wireless Pulse Counter | Technical Specifications
Supply voltage
Current consumption
2.0–3.8 VDC (3.0–3.8 VDC using power supply) *
0.2 µA (sleep mode), 0.7 µA (RTC sleep), 570 µA (MCU idle),
2.5 mA (MCU active), 5.5 mA (radio RX mode),
22.6 mA (radio TX mode)
-18°C to 55°C (0°F to 130°F) using alkaline
-40°C to 85°C (-40°F to 185°F) using lithium **
+10°C to +50°C (+50°F to +122°F)
4294967296 (32 bit number)
0 to 15 Volts DC
High impedance (2-wire), 3 ft length
Positive and/or negative edge pulses
Open collector NPN switches (passive)
Mechanical switches (passive)
0–15V driven source (active)***
Max Pulse Rate
No Filter
4 Hz Filter
40 Hz Filter
Integrated memory
Wireless range
Security
Weight
Certifications
~ 2 KHz
~ 4 Hz
~ 40 Hz
Min Pulse Width*****
~ 0.5 ms
~ 250 ms
~ 25 ms
Operating temperature range (board circuitry and batteries)
Optimal battery temperature range (AA)
Maximum count
Input voltage
Detection wires
Counter operation
Compatibility
Max input pulse rate/min pulse width with passive input ****
Up to 512 sensor messages
1,200+ ft non-line-of-sight
Encrypt-RF® (256-bit key exchange and AES-128 CTR)
0.7 ounces
Industry
Canada
900 MHz product; FCC ID: ZTL-G2SC1 and IC: 9794A-
G2SC1. 868 and 433 MHz product tested and found to
comply with: EN 300 220-2 V3.1.1 (2017-02), EN 300 220-2
V3.1.1 (2017-02) and EN 60950
*
**
***
****
*****
Hardware cannot withstand negative voltage. Take care when connecting a power device.
At temperatures above 100°C, it is possible for the board circuitry to lose programmed memory.
Low Pulse: 0 Volts to 0.2 * VBatt, High Pulse: 0.8 * VBatt to 15 Volts.
High pulse count rates can impact battery life. AA battery powered sensors are recommended if counting pulses faster than 1x per second.
Input pulse rate must be less than specified Max Pulse Rate and input pulse width must be greater than specified Min Pulse Width to ensure
the input pulse is counted.
Power Options
The standard version of this sensor is powered by two replaceable 1.5 V AA sized batteries (included with purchase). This sensor is
also available with a line power option. The line powered version of this sensor has a barrel power connector allowing it to be powered
by a standard 3.0–3.6 V power supply. The line powered version also uses two standard 1.5 V AA batteries as backup for uninterrupted
operation in the event of line power outage. Power options must be selected at time of purchase, as the internal hardware of the sensor
must be changed to support the selected power requirements.
PAGE 3

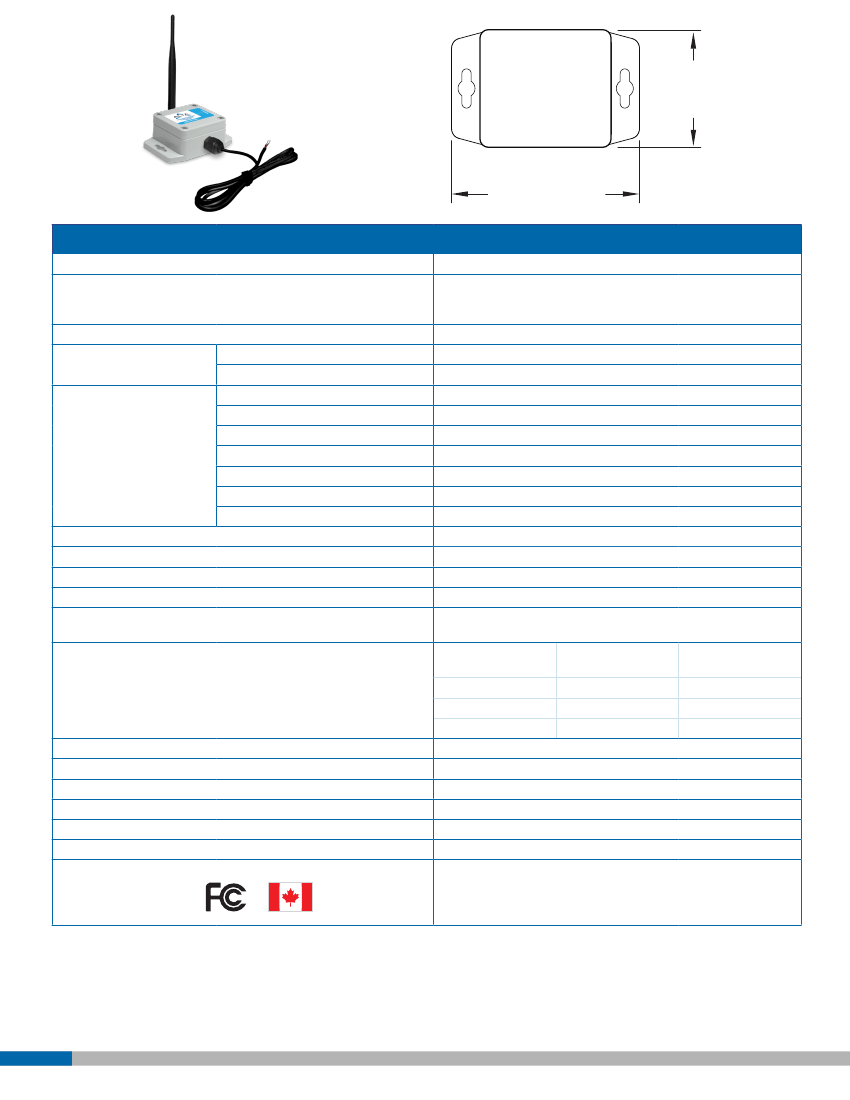

Industrial
Wireless
Sensor
2.316 in
(58.84 mm)
3.701 in
(94.0 mm)
Height:
1.378 in
(35.0 mm)
ALTA Industrial Wireless Pulse Counter | Technical Specifications
Supply voltage
Current consumption
2.0–3.8 VDC (3.0–3.8 VDC using power supply) *
0.2 µA (sleep mode), 0.7 µA (RTC sleep), 570 µA (MCU idle),
2.5 mA (MCU active), 5.5 mA (radio RX mode),
22.6 mA (radio TX mode)
-40°C to +85°C (-40°F to +185°F)
-40° to +85°C (-40° to +185°F)
1500 mAh
5VDC/30mA (53mm x 30mm)
0° to 45°C (32° to 113°F)
-20° to 60°C (-4° to 140°F)
600 mAh/>2000 charge cycles (80% of initial capacity)
Optimized for high and low-light operation ***
5% **
Minimum of 10,000 LUX **
4294967296 (32 bit number)
0 to 15 Volts DC
High impedance (2-wire), 3 ft length
Positive and/or negative edge pulses
Open collector NPN switches (passive), mechanical switches
(passive), 0–15V driven source (active) ****
Max Pulse Rate
No Filter
4 Hz Filter
40 Hz Filter
Integrated memory
Wireless range
Security
Weight
Enclosure rating
UL rating
Certifications
~ 2 KHz
~ 4 Hz
~ 40 Hz
Min Pulse
Width******
~ 0.5 ms
~ 250 ms
~ 25 ms
Max temperature range
Capacity
Optional solar feature
Solar panel
Charging temperature range
Max temperature range
Included rechargeable battery
Solar efficiency
Charging efficiency
Luminous sustainability
Maximum count
Input voltage
Detection wires
Counter operation
Compatibility
Max input pulse rate/min pulse width with passive input *****
Operating temperature range (board circuitry and battery)
Included battery
Up to 512 sensor messages
1,200+ ft non-line-of-sight
Encrypt-RF® (256-bit key exchange and AES-128 CTR)
4.7 ounces
NEMA 1, 2, 4, 4x, 12 and 13 rated, sealed and weather proof
UL Listed to UL508-4x specifications (File E194432)
900 MHz product; FCC ID: ZTL-G2SC1 and IC: 9794A-G2SC1.
868 and 433 MHz product tested and found to comply with: EN
300 220-2 V3.1.1 (2017-02), EN 300 220-2 V3.1.1 (2017-02)
and EN 60950
Industry
Canada
*
Hardware cannot withstand negative voltage. Take care when connecting a power device.
** Solar feature’s energy harvesting circuitry works indoors with low light.
***
Light present 25% of day yields 125% of operating power to support 10-minute heartbeats.
****
Low Pulse: 0 Volts to 0.2 * VBatt, High Pulse: 0.8 * VBatt to 15 Volts.
*****
High pulse count rates can impact battery life. AA battery powered sensors are recommended if counting pulses faster than 1x per second.
******
Input pulse rate must be less than specified Max Pulse Rate and input pulse width must be greater than specified Min Pulse Width to ensure
the input pulse is counted.
PAGE 4
Commercial Grade Sensors
Monnit commercial grade sensors are designed for applications in ordinary environments (normal room temperature,
humidity and atmospheric pressure). Do not use these sensors under the following conditions as these factors can
deteriorate the product characteristics and cause failures and burnout.
•
Corrosive gas or deoxidizing gas: chlorine gas, hydrogen sulfide gas, ammonia gas, sulfuric acid gas, nitric oxides
gas, etc.
•
Volatile or flammable gas
• Dusty conditions
• Low-pressure or high-pressure environments
• Wet or excessively humid locations
• Places with salt water, oils chemical liquids or organic solvents
• Where there are excessively strong vibrations
•
Other places where similar hazardous conditions exist
Use these products within the specified temperature range. Higher temperature may cause deterioration of the
characteristics or the material quality.
Industrial Grade Sensors | Type 1, 2, 4, 4X, 12 and 13 NEMA Rated Enclosure
Monnit’s Industrial sensors are enclosed in reliable, weatherproof NEMA-rated enclosures. Our NEMA-rated enclosures
are constructed for both indoor or outdoor use and protect the sensor circuitry against the ingress of solid foreign objects
like dust as well as the damaging effects of water (rain, sleet, snow, splashing water, and hose-directed water).
•
•
•
•
•
Safe from falling dirt
Protects against wind-blown dust
Protects against rain, sleet, snow, splashing water, and hose-directed water
Increased level of corrosion resistance
Will remain undamaged by ice formation on the enclosure
For more information about our products or to place an order, please contact
our sales department at 801-561-5555.
Visit us on the web at
www.monnit.com.
Monnit Corporation
3400 South West Temple
Salt Lake City, UT 84115
801-561-5555
www.monnit.com
Monnit, iMonnit, ALTA, PinchPower, Encrypt-RF and all other trademarks are property of Monnit, Corp.
© 2018 Monnit Corp. All Rights Reserved.
ADS-A029-1D (7/18)
