3-1445085-0 datasheet, PDF - EEWORLD Datasheet

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > The connector> The connector> 3-1445085-0

Preview

3-1445085-0: Descriptionpin and socket connector micro mnl hdr assy s/row au lf; CategoryThe connector The connector; File Size184KB，2 Pages; ManufacturerTE Connectivity; Websitehttp://www.te.com; Environmental Compliance

Download Datasheet Parametric View All

3-1445085-0 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	3-1445085-0	-	-	View	Buy Now

3-1445085-0 Overview

pin and socket connector micro mnl hdr assy s/row au lf

3-1445085-0 Parametric

Parameter Name	Attribute value
Brand Name	AMP
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	TE Connectivity
package instruction	ROHS COMPLIANT
Reach Compliance Code	compliant
ECCN code	EAR99
Other features	MATE-N-LOK, POLARIZED
Board mount options	SPLIT BOARD LOCK
body width	0.223 inch
subject depth	0.364 inch
body length	1.344 inch
Body/casing type	PLUG
Connector type	POWER CONNECTOR
Contact to complete cooperation	NOT SPECIFIED
Contact point gender	MALE
Contact material	NOT SPECIFIED
contact mode	RECTANGULAR
Contact style	SQ PIN-SKT
DIN compliance	NO
Dielectric withstand voltage	1500VAC V
Durability	30 Cycles
empty shell	NO
Filter function	NO
IEC compliance	NO
maximum insertion force	6.672 N
Insulation resistance	1000000000 Ω
Insulator color	BLACK
insulator material	NYLON
MIL compliance	NO
Plug contact pitch	0.118 inch
Plug information	1-1445022-0
Mixed contacts	NO
Installation option 1	LOCKING
Installation option 2	FRICTION LOCK
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	1
Number of rows loaded	1
Maximum operating temperature	105 °C
Minimum operating temperature	-40 °C
Options	GENERAL PURPOSE
PCB contact pattern	RECTANGULAR
Plating thickness	15u inch
polarization key	POLARIZED HOUSING
Rated current (signal)	5 A
Guideline	CSA,UL,VDE
reliability	COMMERCIAL
Shell material	NYLON
Terminal length	0.125 inch
Terminal pitch	2.9972 mm
Termination type	SOLDER
Total number of contacts	10
UL Flammability Code	94V-0
Base Number Matches	1

Preview

Download Datasheet

View All

4

THIS DRAWING IS UNPUBLISHED.

RELEASED FOR PUBLICATION

BY -

20

3

2

REVISIONS

P

LTR

DESCRIPTION

1

DATE

DWN

APVD

C

COPYRIGHT

20

A2

DIM W # 0.39

1.30

9.24

REF

REVISED PER ECR-16-011494

23JUN2017

NK

CX

D

3.18

REF

CIRCUIT 1

3.86

CONTACT

HOLDDOWN

1

MATERIAL:

CONTACTS - BRASS

HOUSING - UL 94V-O RATED HIGH TEMP NYLON, COLOR BLACK.

HOLDDOWNS: - PHOSPHOR BRONZE.

D

2

PLATING:

0.51

CONTACTS - 0.38µm MINIMUM GOLD ON MATING END,

2.54µm MINIMUM TIN LEAD ON SOLDER TAILS, BOTH OVER

1.27µm MINIMUM NICKEL.

HOLDDOWNS: 2.54µm MINIMUM TIN-LEAD OVER 1.27µm MINIMUM

NICKEL.

4

HOUSING

5

RECOMMENDED PC BOARD THICKNESS OF 1.57.

PLATING:

CONTACTS - 0.38µm MINIMUM GOLD ON MATING END,

2.54µm MINIMUM MATTE TIN ON SOLDER TAILS, BOTH OVER

1.27µm MINIMUM NICKEL.

HOLDDOWNS: 2.54µm MINIMUM MATTE TIN OVER 1.27µm MINIMUM

NICKEL.

C

5

3.00

REF

DIM T

REF

5

SUPERSEDED BY 3-1445085-2

SUPERSEDED BY 3-1445085-1

DIM Z

3.00

TYP

2.41

0.13

2 PLC

0.13

BOARD EDGE

SUPERSEDED BY 3-1445085-0

SUPERSEDED BY 2-1445085-9

SUPERSEDED BY 2-1445085-8

SUPERSEDED BY 2-1445085-7

SUPERSEDED BY 2-1445085-6

2.20

MIN

SUPERSEDED BY 2-1445085-5

SUPERSEDED BY 2-1445085-4

SUPERSEDED BY 2-1445085-3

1.02

TYP

DIM V

+0.20

0

2.20

MIN

SUPERSEDED BY 2-1445085-2

5

2

FINISH

33.00

30.00

27.00

24.00

21.00

18.00

15.00

12.00

9.00

6.00

3.00

33.00

30.00

27.00

24.00

21.00

18.00

15.00

12.00

9.00

6.00

3.00

DIM Z

37.43

34.43

31.43

28.43

25.43

22.43

19.43

16.43

13.43

10.43

7.43

37.43

34.43

31.43

28.43

25.43

22.43

19.43

16.43

13.43

10.43

7.43

DIM V

DWN

CHK

33.00

30.00

27.00

24.00

21.00

18.00

15.00

12.00

9.00

6.00

3.00

33.00

30.00

27.00

24.00

21.00

18.00

15.00

12.00

9.00

6.00

3.00

DIM T

10OCT2000

NAME

40.14

37.14

34.14

31.14

28.14

25.14

22.14

19.14

16.14

13.14

10.14

40.14

37.14

34.14

31.14

28.14

25.14

22.14

19.14

16.14

13.14

10.14

DIM W

12

11

10

9

8

7

6

5

4

3

2

12

11

10

9

8

7

6

5

4

3

2

NO. OF

POSN

3-1445085-2

3-1445085-1

3-1445085-0

2-1445085-9

2-1445085-8

2-1445085-7

2-1445085-6

2-1445085-5

2-1445085-4

2-1445085-3

2-1445085-2

1-1445085-2

1-1445085-1

1-1445085-0

1445085-9

1445085-8

1445085-7

1445085-6

1445085-5

1445085-4

1445085-3

1445085-2

PART NUMBER

TE Connectivity

B

2.15

0.13

THIS DRAWING IS A CONTROLLED DOCUMENT.

DIMENSIONS:

TOLERANCES UNLESS

OTHERWISE SPECIFIED:

A

PCB LAYOUT COMPONENT SIDE

4

mm

MATERIAL

0 PLC

1 PLC

2 PLC

3 PLC

4 PLC

ANGLES

FINISH

-

0.20

-

17-APR-2001

K. WHITAKER

APVD

17-APR-2001

C. JONES

PRODUCT SPEC

APPLICATION SPEC

J.ROOT

A

TM

-

WEIGHT

-

1

1471-9 (3/13)

SEE TABLE

-

CUSTOMER DRAWING

A2

00779

SIZE

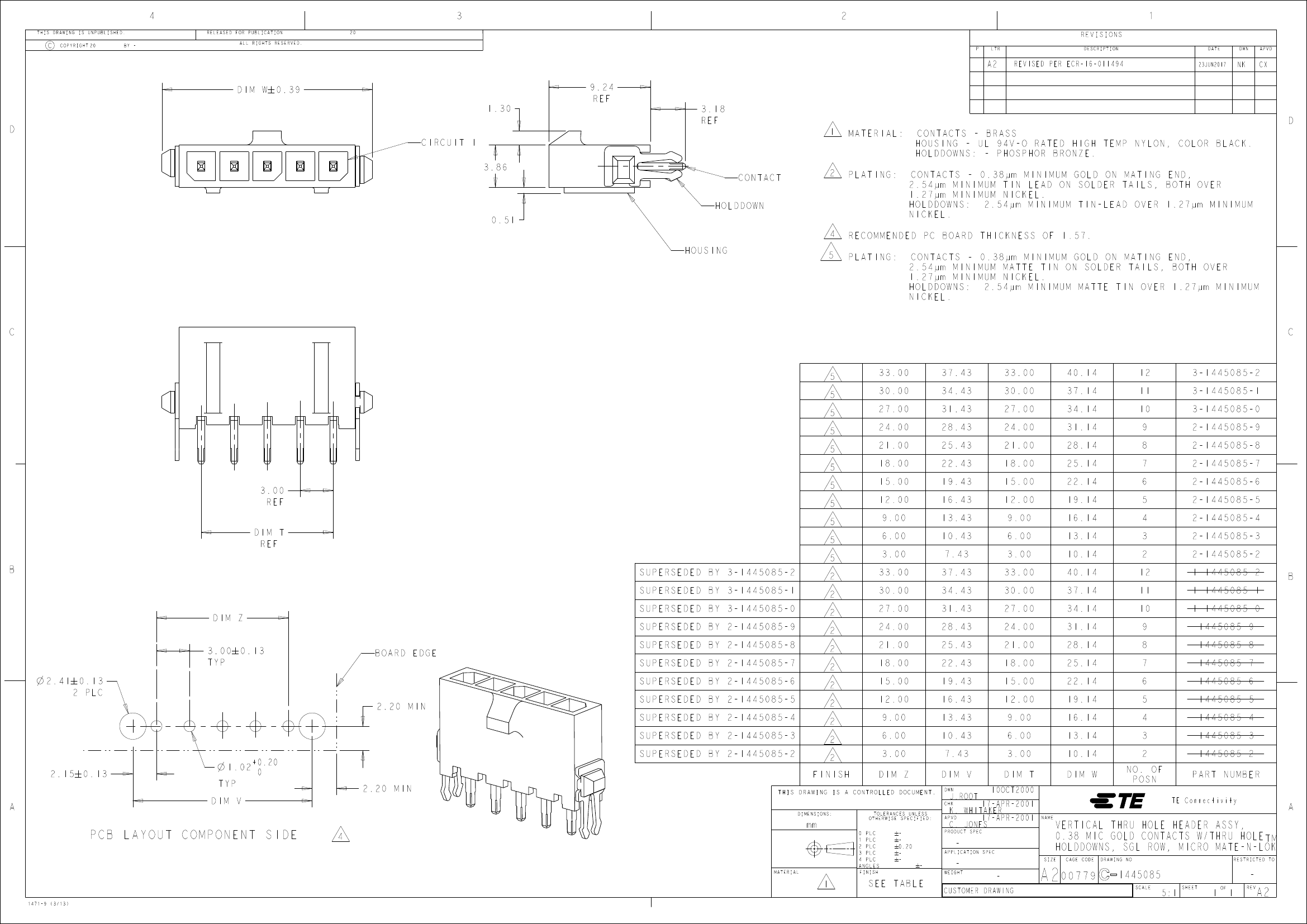

VERTICAL THRU HOLE HEADER ASSY,

0.38 MIC GOLD CONTACTS W/THRU HOLE

HOLDDOWNS, SGL ROW, MICRO MATE-N-LOK

CAGE CODE

DRAWING NO

RESTRICTED TO

1445085

SCALE

5:1

SHEET

1

OF

1

REV

-

A2
