33_N-SMA-50-1/113_UE datasheet, PDF

Datasheet> All Categories > The connector> The connector> 33_N-SMA-50-1/113_UE

33_N-SMA-50-1/113_UE: DescriptionRF Adapters - Between Series; CategoryThe connector The connector; File Size117KB，1 Pages; ManufacturerHUBER+SUHNER; Environmental Compliance

Download Datasheet Parametric View All

33_N-SMA-50-1/113_UE Overview

RF Adapters - Between Series

33_N-SMA-50-1/113_UE Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
package instruction	ROHS COMPLIANT
Reach Compliance Code	compliant
Adapter type	N-SMA
Other features	STANDARDS: MIL-STD-348A/304; IEC 60169-16; VSWR MAX AT 12.4 GHZ
Body/casing type	PLUG-JACK
Characteristic impedance	50 Ω
Connector type	RF CONNECTOR ADAPTER
Contact to complete cooperation	GOLD
Contact completed and terminated	Gold (Au)
Contact point gender	MALE-FEMALE
Contact material	BERYLLIUM COPPER
Contact style	COAX
Coupling type	THREADED
DIN compliance	NO
Durability	500 Cycles
Filter function	NO
IEC compliance	YES
insulator material	PFA/PTFE
JESD-609 code	e4
MIL compliance	YES
Installation method	STRAIGHT
Maximum operating frequency	18 GHz
Maximum operating temperature	165 °C
Minimum operating temperature	-65 °C
Options	GENERAL PURPOSE
Panel mounting	NO
voltage standing wave ratio	1.24
Base Number Matches	1

Preview

Download Datasheet

View All

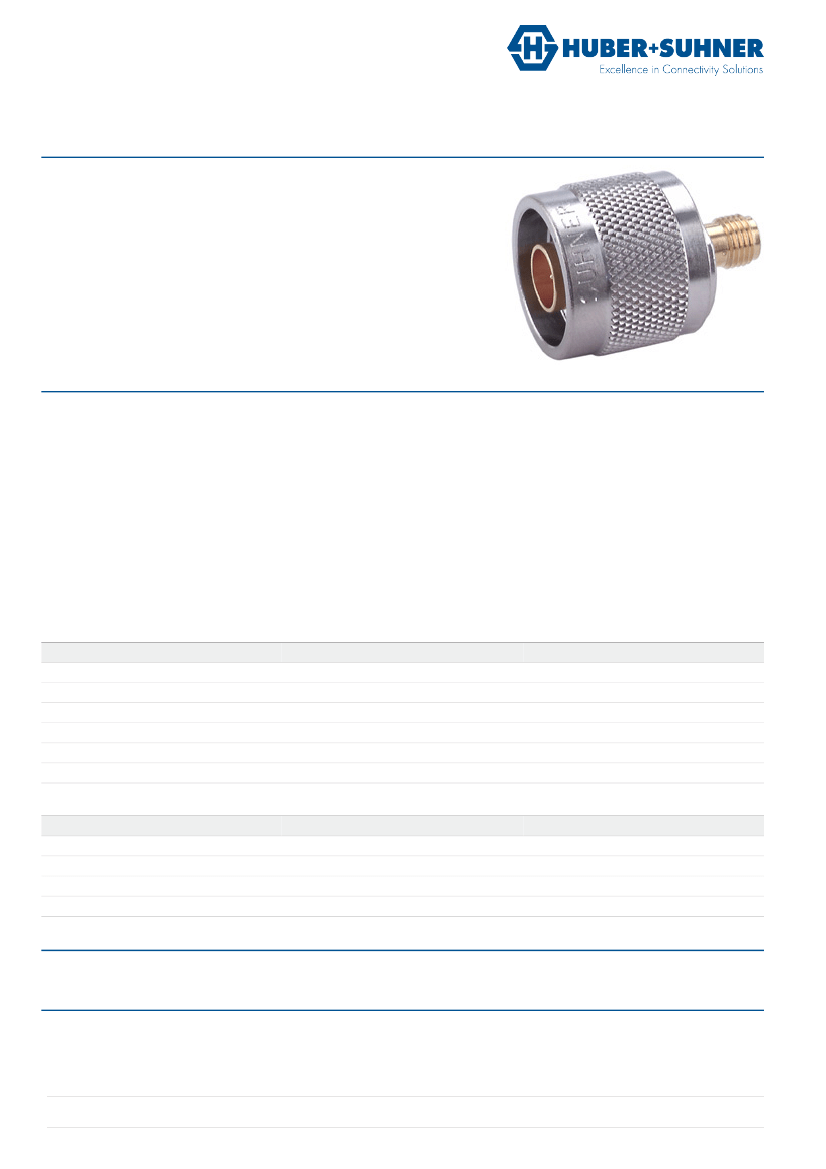

Data Sheet

Between Series Adaptor

33_N-SMA-50-1/113_U

Description

Adaptor plug/jack

N plug (male) / SMA jack (female)

Interface standards

Series N - IEC 61169-16_MIL-STD-348A/304_CECC 22210

Series SMA - IEC 60169-15_MIL-STD-348A/310_CECC 22110

Technical Data

Electrical Data

Impedance

Interface frequency max.

VSWR

50 Ω

18 GHz

DC - 12.4 GHz

≤ 1.05 + 0.015 f (GHz)

Mechanical Data

Number of matings

Weight

500

0.0301 kg

Environmental Data

Operating temperature

2011/65/EU (RoHS)

-65 °C to 165 °C

compliant

Material Data

Interface - N plug (male)

Piece Parts

Centre contact

Outer contact

Body

Insulator

Coupling nut

Gasket

Material

Copper Beryllium Alloy

Brass

PFA / PTFE

Brass

VMQ (Silicone rubber)

SUCOPLATE (R) Plating

Surface Plating

Gold Plating (without Nickel underplating)

SUCOPLATE (R) Plating

Interface - SMA jack (female)

Piece Parts

Centre contact

Outer contact

Body

Insulator

Material

Copper Beryllium Alloy

PFA / PTFE

Surface Plating

Gold Plating (without Nickel underplating)
