233-312NFG6-176AN1 datasheet, PDF

Datasheet> All Categories > The connector> Modular connectors/Ethernet connector> 233-312NFG6-176AN1

233-312NFG6-176AN1: DescriptionModular connector/Ethernet connector Cat 6A interface for D38999 type shell, Aluminum/cadmium olive drag, plug; CategoryThe connector Modular connectors/Ethernet connector; File Size344KB，2 Pages; ManufacturerGlenair; Websitehttp://www.glenair.com/

Download Datasheet Parametric View All

233-312NFG6-176AN1 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	233-312NFG6-176AN1	-	-	View	Buy Now

233-312NFG6-176AN1 Overview

Modular connector/Ethernet connector Cat 6A interface for D38999 type shell, Aluminum/cadmium olive drag, plug

233-312NFG6-176AN1 Parametric

Parameter Name	Attribute value
Maker	Glenair
Product Category	Modular Connector/Ethernet Connector
product	Modular Plug
USOC code	RJ45
Number of ports	1 Port
performance category	Cat 6a
shield	Shielded
IP rating	IP68
series	233-312
Type	Plug
Shell material	Aluminum
Installation angle	Straight

Preview

Download Datasheet

View All

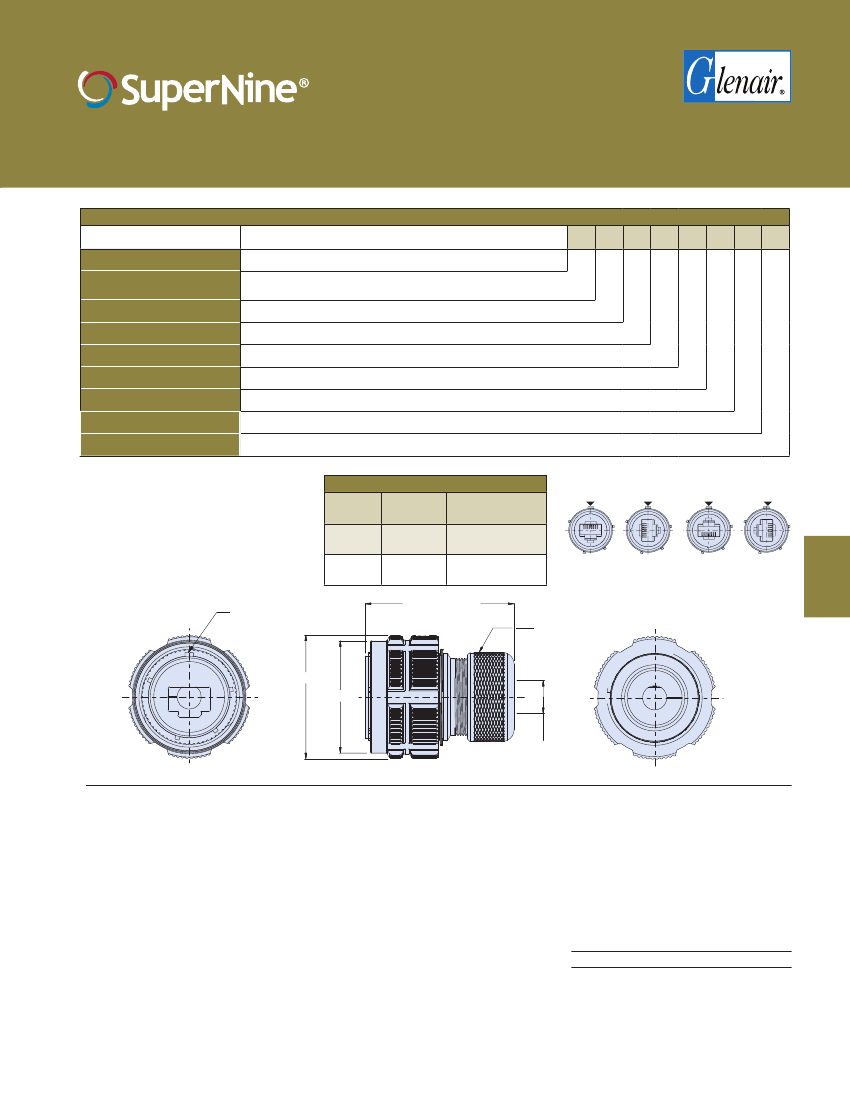

SERIES 23

233-312 Plug with accessory threads

MIL-DTL-38999 Series III

Sample Part Number

Series / Basic Part No.

Material/Finish

Connector Style

Plug Options

Shell Size

RJ45 Category

Alternate Polarization

RJ45 Orientation

Shrink Boot

Part Number Development

RJ45 CAT 6A connector

233-312

= Cat 6A interface for D38999 type shell

= Aluminum/cadmium olive drag

= Aluminum/electroless nickel

= Plug

(-) = CAT 6A (28 AWG)

and

= Cat 6A

A, B, C, D, E, N

= Normal; Per MIL-DTL-38999

1, 2, 3, 4

Omit for none

Dimensions

Shell Size

ØA Max

1.406 (35.71)

1.516 (38.51)

ØB

1.276 (32.41)

1.268 (32.21)

1.382 (35.10)

1.374 (34.90)

= CAT 6A (22-24 AWG)

NF G6

= Aluminum/nickel PTFE

= Aluminum/zinc-nickel

RJ45 Orientation Options (Plug Face)

Master Key

Code 1

Code 2

Code 3

Code 4

G6 - Plug

MASTER KEY

1.900 (48.26) MAX

See Note 8

ØA MAX

ØB

See Note 4

NOTES

1. Material/finish:

• Barrel, coupling nut: see part number

development. Composite coupling

nut no plating required.

• Insulators: high grade rigid dielectric/

N.A.

• Seals: silicone based elastomer

• Hardware: stainless steel/passivated

2. RJ45 plug specifications:

• RJ45 plug cable maintains shield

continuity

• RoHS compliant

Electrical

• current rating: 1 amp

• D.W.V.: 1000V DC/min

• I.R.: 500 Mega ohms minimum @

1000V DC

• Operating temperature range: -20°C

to +85°C

3. Meets IP68 in mated condition

4. Design accommodates cable outside

diameter 0.187 (4.750) to 0.312 (7.925)

5. Design accommodates CAT 6A RJ45

modular plugs:

(-) = CAT 6A, 28 AWG

A = CAT 6A, 22-24 AWG

6. See assembly instructions AI233-312

for cable termination and connector

assembly. Assembly instructions to be

kitted with each shipment

7. CAT 6A modular plugs packaged loose

for each plug connector.

8. Recommended torque value for

different cable outside diameter.

Cable OD (in) .187/.225 .225/.275 .275/.312

Torque (in/lbs) 20.6

18.3

12.6

Dimensions in Inches (millimeters) are subject to change without notice.

E-9

Rev. 12.10.18
