207-D542-NX/PX datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Mechanical and electronic products> I/O module> 207-D542-NX/PX

207-D542-NX/PX: DescriptionI/O 模块 64-Ch. DI and 32-Ch. DO Slave Module with Pluggable Terminal NPN/PNP type; CategoryMechanical and electronic products I/O module; File Size488KB，2 Pages; ManufacturerIBASE; Environmental Compliance

Download Datasheet Parametric Compare View All

207-D542-NX/PX Overview

I/O 模块 64-Ch. DI and 32-Ch. DO Slave Module with Pluggable Terminal NPN/PNP type

207-D542-NX/PX Parametric

Parameter Name	Attribute value
Maker	IBASE
Product Category	I/O module
product	DC Input/Output Modules
Input voltage	24 V
Input Current	5 mA
The output voltage	24 V
Output current	100 mA
Output type	DC
Termination type	Plug In
series	207-D5xx
Maximum operating temperature	+ 60 C
Minimum operating temperature	0 C

Preview

Download Datasheet

View All

207-D5xx Series

EtherCAT

Digital Slave

96-Ch. Digital input / output NPN/PNP type

Features

● 96-Ch. DI/O slave module with NPN/PNP type

● Max. 100Mbps transfer rate

● Easy installation with RJ45 phone jack and LED

diagnostic

● Pluggable terminal block with spring plug connectors

● DIP switch for address setting

● DIN rail mounting (L-122 x W-65 x H-104 mm)

EtherCAT

Digital

Slave

EtherCAT

Analog Slave

Specifications

Serial interface

Distributed Clock

Cable type

Surge protection

Transmission speed

I/O isolation voltage

Input types

Input impedance

Input current

Output type

Switch capacity

Response time

Over current

protection

Power input

Power consumption

Working temperature

Ordering Information

207-D560-NX/PX

207-D542-NN/PP

207-D533-NN/PP

SCB-1BB-06A/10A

/20A/30A/50A/A0A

Fast Ethernet, Full-Duplex

1ms

CAT5 UTP / STP Ethernet cable

10KV

100Mbps

3750Vrms

NPN / PNP type

5.6KΩ / 0.5W

±5mA(Max)

NPN: open collector Darlington;

PNP: MOSFET-P;

Intergral suppression on diodes for inductive loads

Each output Ch. is 100mA at 24VDC

On to Off, about 50μs;

Off to On, about 10μs

1A (Max) for each port (8-Ch.)

24VDC±10%

6W typical

0 to 60°C

96-Ch. Digital Input (DI) with NPN/PNP type

64-Ch. Digital Input (DI) and 32-Ch. Digital Output (DO)

with PNP type

48-Ch. Digital Input (DI) and 48-Ch. Digital Output (DO)

with PNP type

CAT5 LAN cable, 0.6M/1M/2M/3M/5M/10M

EtherCAT

Motion Slave

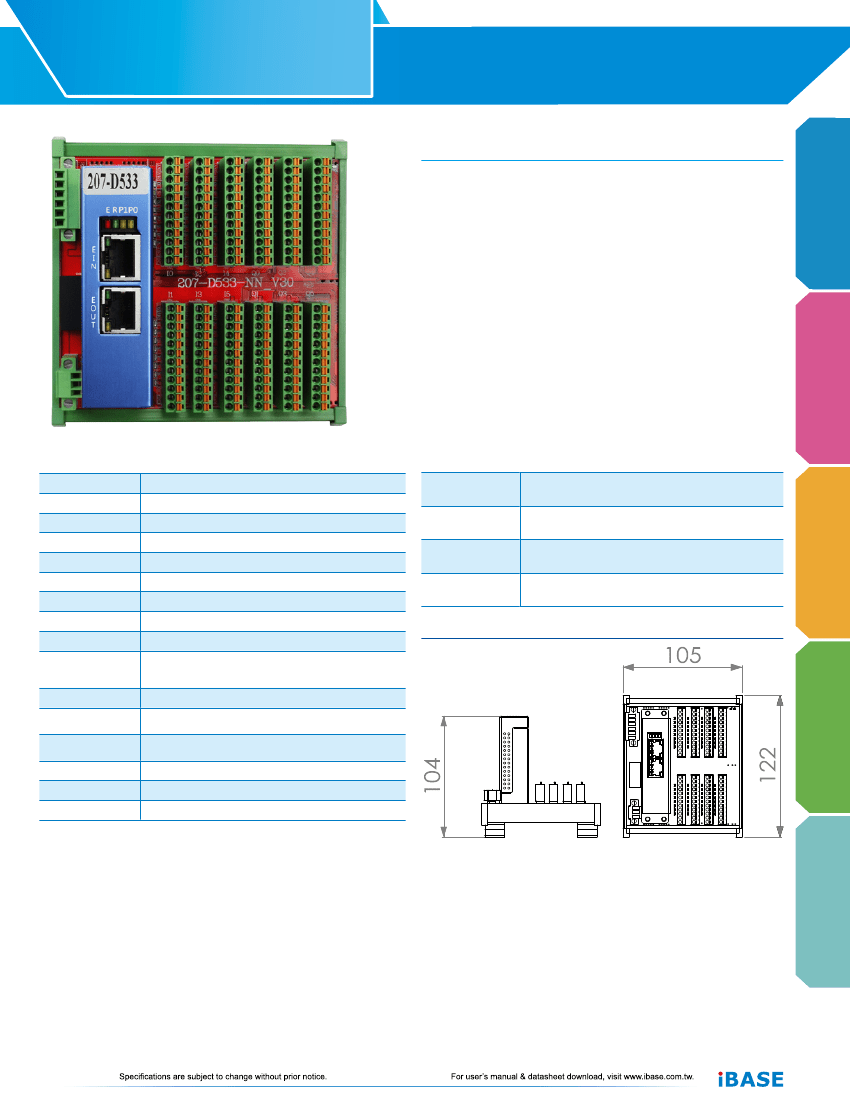

Dimensions and Drawing

EtherCAT

1-10

Microstep Driver

EtherCAT

Start-KIT

Remarks: 1.

ODM/OEM is available.

207-D542-NX/PX Related Products

	207-D542-NX/PX	207-D533-NX/PX	207-D560-NX/PX
Description	I/O 模块 64-Ch. DI and 32-Ch. DO Slave Module with Pluggable Terminal NPN/PNP type	I/O 模块 48-Ch. DI and 48-Ch. DO Slave Module with Pluggable Terminal NPN/PNP type	I/O 模块 96-Ch. DI/O Slave Module with Pluggable Terminal NPN/PNP type
Maker	IBASE	IBASE	IBASE
Product Category	I/O module	I/O module	I/O module
product	DC Input/Output Modules	DC Input/Output Modules	DC Input Modules
Input voltage	24 V	24 V	24 V
Input Current	5 mA	5 mA	5 mA
The output voltage	24 V	24 V	24 V
Output current	100 mA	100 mA	100 mA
Output type	DC	DC	DC
series	207-D5xx	207-D5xx	207-D5xx
Maximum operating temperature	+ 60 C	+ 60 C	+ 60 C
Minimum operating temperature	0 C	0 C	0 C
