TVP06B221CA-HF

Description
ESD suppressor/TVS diode TVS DIODE 185VWM 328VC SMB
CategoryCircuit protection    ESD suppressor/TVS diode
File Size133KB,6 Pages
ManufacturerComchip Technology
Websitehttp://www.comchiptech.com/
Environmental Compliance
Download Datasheet Parametric View All

TVP06B221CA-HF Online Shopping

Suppliers Part Number Price MOQ In stock
TVP06B221CA-HF - - View Buy Now

TVP06B221CA-HF Overview

ESD suppressor/TVS diode TVS DIODE 185VWM 328VC SMB

TVP06B221CA-HF Parametric

Parameter NameAttribute value
MakerComchip Technology
Product CategoryESD Suppressor/TVS Diode
Shipping restrictionsMouser does not currently sell this product.
Vesd - Electrostatic discharge voltage contact-
Vesd - Electrostatic discharge voltage air gap-
polarityBidirectional
Number of channels1 Channel
Termination typeSMD/SMT
Breakdown voltage209 V
Operating Voltage185 V
clamping voltage328 V
Ipp - peak pulse current1.83 A
Package/boxDO-214AA-2 (SMB)
Pd-power dissipation5 W
Minimum operating temperature- 55 C
Maximum operating temperature+ 150 C

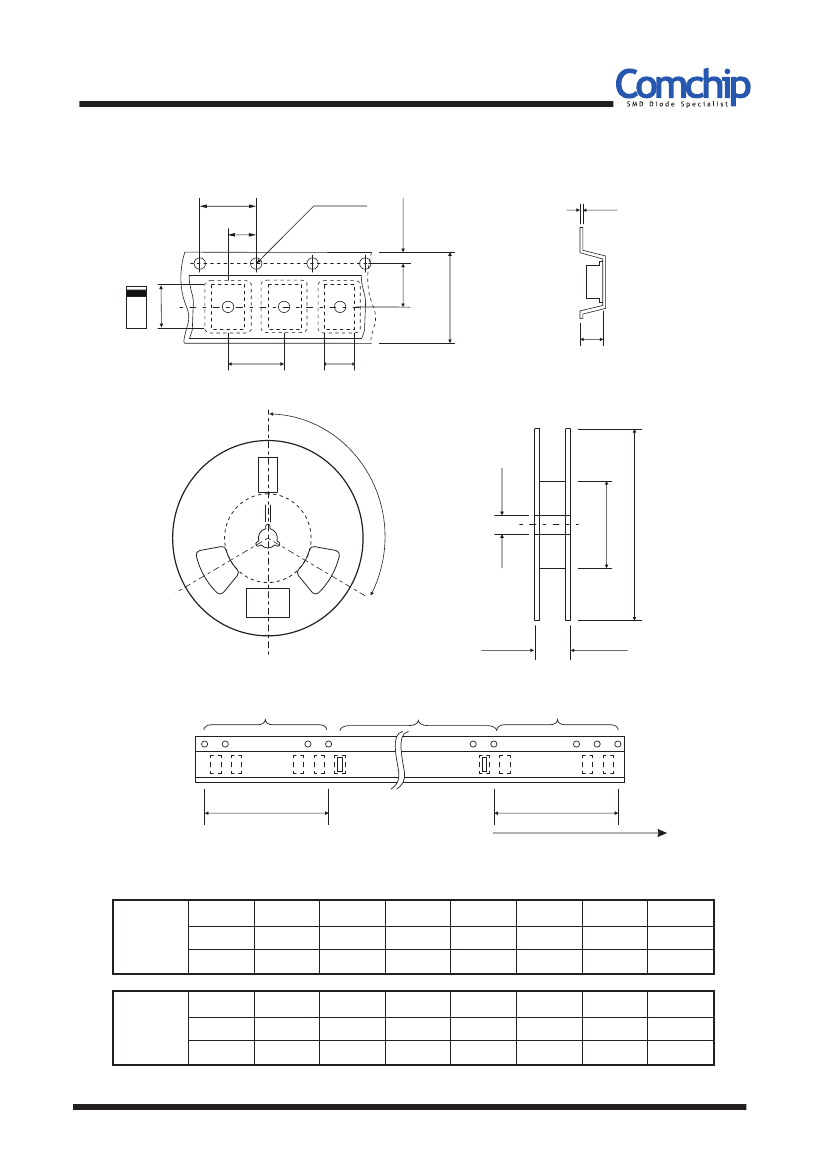

EncapsulationReel
Factory packaging quantity3000
Vf - forward voltage5 V
SMD Transient Voltage Suppressor
TVP06B6V8-HF Thru. TVP06B601-HF
Breakdown Voltage: 6.8 to 600Volts
Power Dissipation: 600 Watts
RoHS Device
Halogen Free
Features
- Glass passivated chip.
- 600W peak pulse power capability with a 10/1000µs
waveform, repetitive rate (duty cycle):0.01%
- Low leakage.
- Uni and Bidirectional unit.
- Excellent clamping capability.
- Very fast response time.
- UL recognized file # E349157
-
Range:
TVP06B6V8(C)A thru. TVP06B510(C)A
R
SMB/DO-214AA
0.087(2.20)
0.077(1.96)
0.155(3.94)
0.130(3.30)
0.191(4.85)
0.171(4.35)
0.012(0.30)
0.006(0.15)
Mechanical Data
-Case: Molded plastic, JEDEC SMB/DO-214AA
-Epoxy: UL 94V-0 rate flame retardant.
-Lead: solderable per MIL-STD-750,
method 2026
-Polarity: Color band denotes cathode end
except Bipolar.
-Weight: 0.108 gram (approx.)
0.096(2.44)
0.084(2.13)
0.060(1.52)
0.030(0.75)
0.216(5.50)
0.201(5.10)
0.008(0.20)
0.001(0.02)
Dimensions in inches and (millimeter)
Rating at 25°C ambient temperature unless otherwise specified.
Single phase, half wave, 60Hz, resistive or inductive load.
For capacitive load, derate current by 20%.
Maximum Ratings and Electrical Characteristics
Parameter
Peak power dissipation with a 10/1000μs
waveform (Note 1 )
Peak pulse current with a 10/1000μs
waveform (Note 1)
Power dissipation on infinite heatsink
at T
L
=75°C
Peak forward surge current, 8.3ms single half
sine-wave uni-directional only (Note 2)
Maximum instantaneous forward voltage at
25.0A for uni-directional only (Note 3)
Operation junction temperature
Storage temperature range
Symbol
P
PP
Value
600
Units
W
I
PP
See Next Table
A
P
D
5.0
W
I
FSM
100
A
V
F
T
J
T
STG
3.5/5.0
-55 to +150
-55 to +150
V
°C
°C
Note:

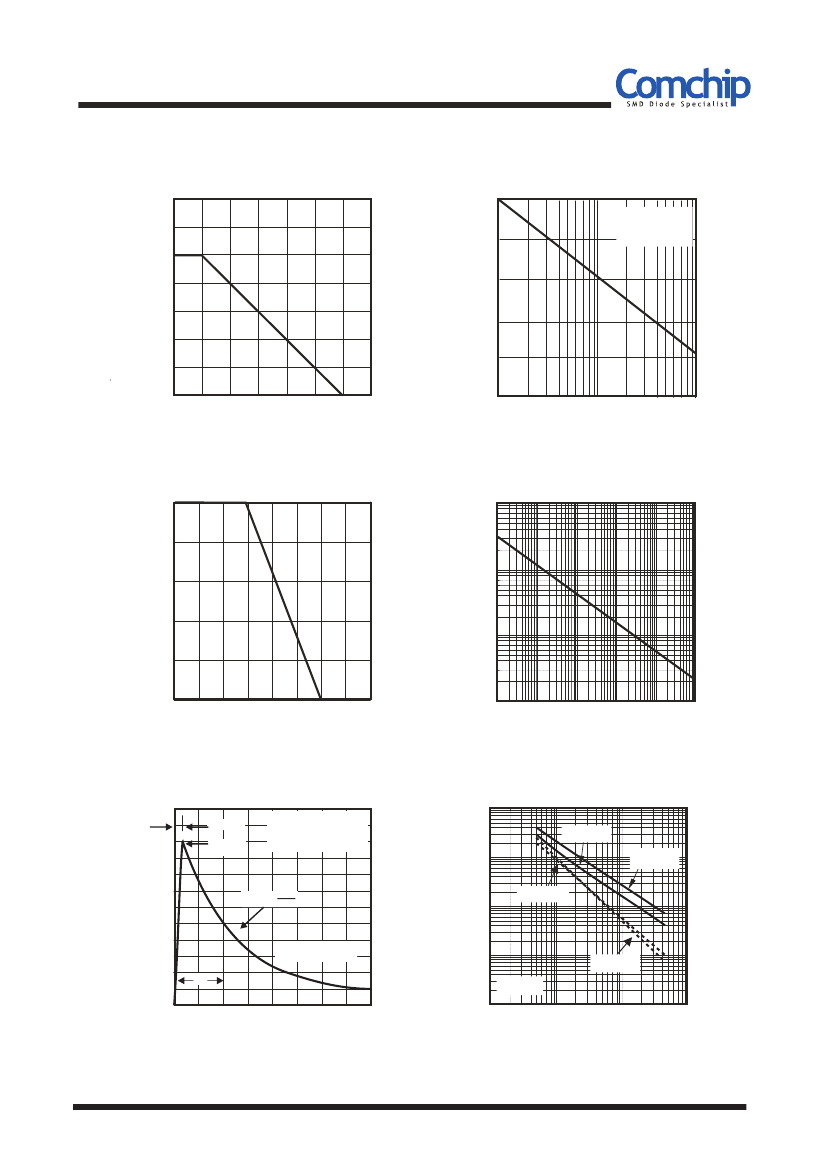

1. Non-repetitive current pulse, per Fig.5 and derated above TA=25°C per Fig.1
2. Measured on 8.3 ms single half sine-wave or equivalent square wave, duty cycle = 4 pulse per minute maximum.
3. V
F
<3.5V for devices of V
BR
<200V and V
F
<5.0V for devices of V
BR
>201V.
Company reserves the right to improve product design , functions and reliability without notice.
QW-JTV14
REV:B
Page 1
Comchip Technology CO., LTD.
