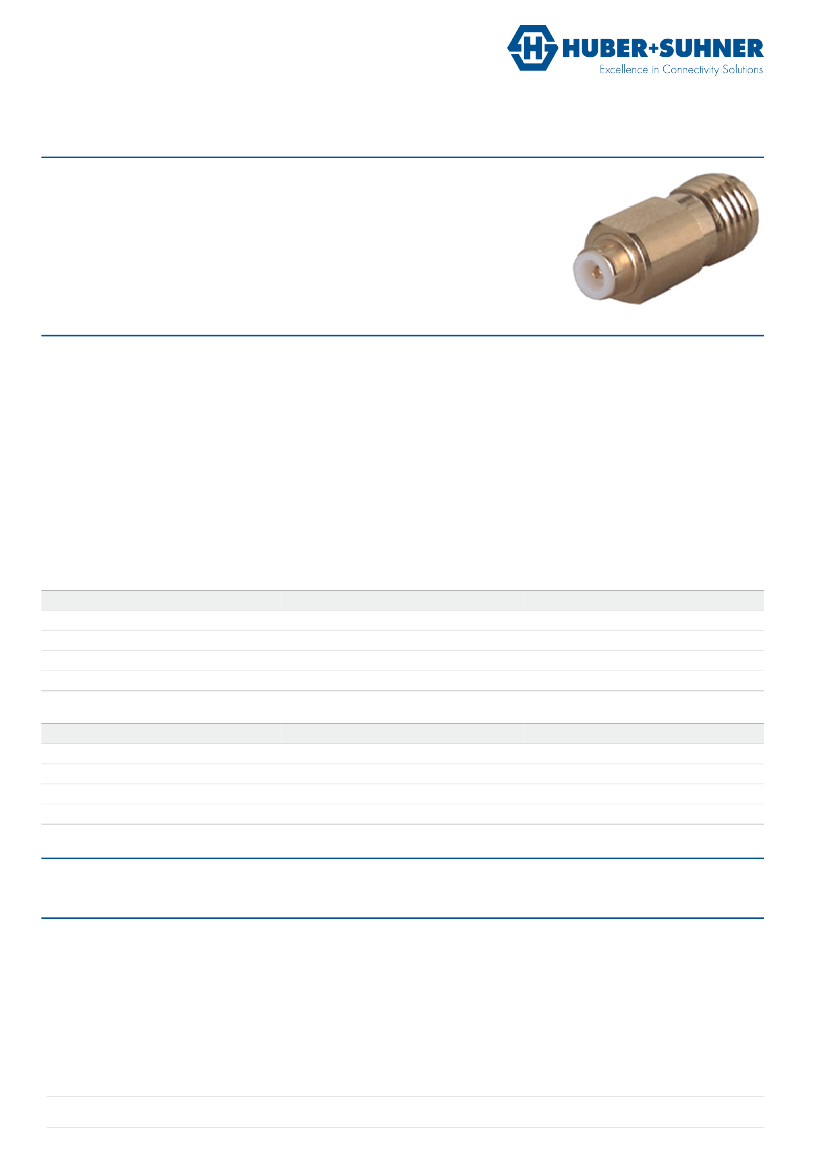

Data Sheet
Between Series Adaptor
33_MMBX-SMA-50-1/111_N
Description
Adaptor plug/jack
MMBX plug (male) / SMA jack (female)
Interface standards
Series MMBX - SUHNER-MMBX
Series SMA - IEC 60169-15_MIL-STD-348A/310_CECC 22110
Technical Data
Electrical Data
Impedance
Interface frequency max.
Frequency range
Return loss
50 Ω
12.4 GHz
DC to 2.5 GHz
≥ 32 dB
2.5 to 6 GHz
≥ 30 dB
6 to 12.4 GHz
≥ 16 dB
Mechanical Data
Number of matings
Weight
500
0.0018 kg
Environmental Data
Operating temperature
2011/65/EU (RoHS)
-55 °C to 155 °C
compliant
Material Data
Interface - MMBX plug (male)
Piece Parts
Centre contact
Outer contact
Body
Insulator
Material
Copper Beryllium Alloy
Copper Beryllium Alloy
Copper Beryllium Alloy
PFA / PTFE
Surface Plating
Gold Plating (Nickel underplated)
SUCOPRO Plating
SUCOPRO Plating
Interface - SMA jack (female)
Piece Parts
Centre contact
Outer contact
Body
Insulator
Material
Copper Beryllium Alloy
Copper Beryllium Alloy
Copper Beryllium Alloy
PFA / PTFE
Surface Plating
Gold Plating (Nickel underplated)
SUCOPRO Plating
SUCOPRO Plating
Related Documents
Outline drawing
DOU-00013973
Ordering Information
Single package
33_MMBX-SMA-50-1/111_NE
HUBER+SUHNER is certified according to ISO 9001, ISO 14001, ISO/TS 16949 and IRIS
www.hubersuhner.com
Waiver: It is exclusively in written agreements that we provide our customers with warrants and representations as to the technical specifications and/or the fitness for any
particular purpose. The facts and figures contained herein are carefully compiled to the best of our knowledge, but they are intended for general information purposes only.
Document: DOC-0000194770 P / PDO G / date of publication: 12/4/2014 4:39:17 PM / uncontrolled copy
Page 1/1
