Part Number

Search

23_N-50-0-69/133_NX

Description
RF Connector/Coaxial Connector
CategoryThe connector    The connector
File Size116KB,2 Pages
ManufacturerHUBER+SUHNER
Download Datasheet Parametric View All

23_N-50-0-69/133_NX Overview

RF Connector/Coaxial Connector

23_N-50-0-69/133_NX Parametric

Parameter NameAttribute value
package instructionROHS COMPLIANT
Reach Compliance Codecompliant
Other featuresSTANDARDS: IEC 60169-16; MIL-STD-348A/304
Body/casing typeJACK
Characteristic impedance50 Ω
Connector typeRF N CONNECTOR
Contact to complete cooperationGOLD OVER NICKEL
Contact completed and terminatedGOLD OVER NICKEL
Contact point genderFEMALE
Coupling typeTHREADED
DIN complianceNO
Filter functionNO
IEC complianceYES
insulator materialPFA/PTFE
JESD-609 codee4
MIL complianceYES
Installation methodSTRAIGHT
Maximum operating frequency11 GHz
OptionsGENERAL PURPOSE
Panel mountingYES
Base Number Matches1

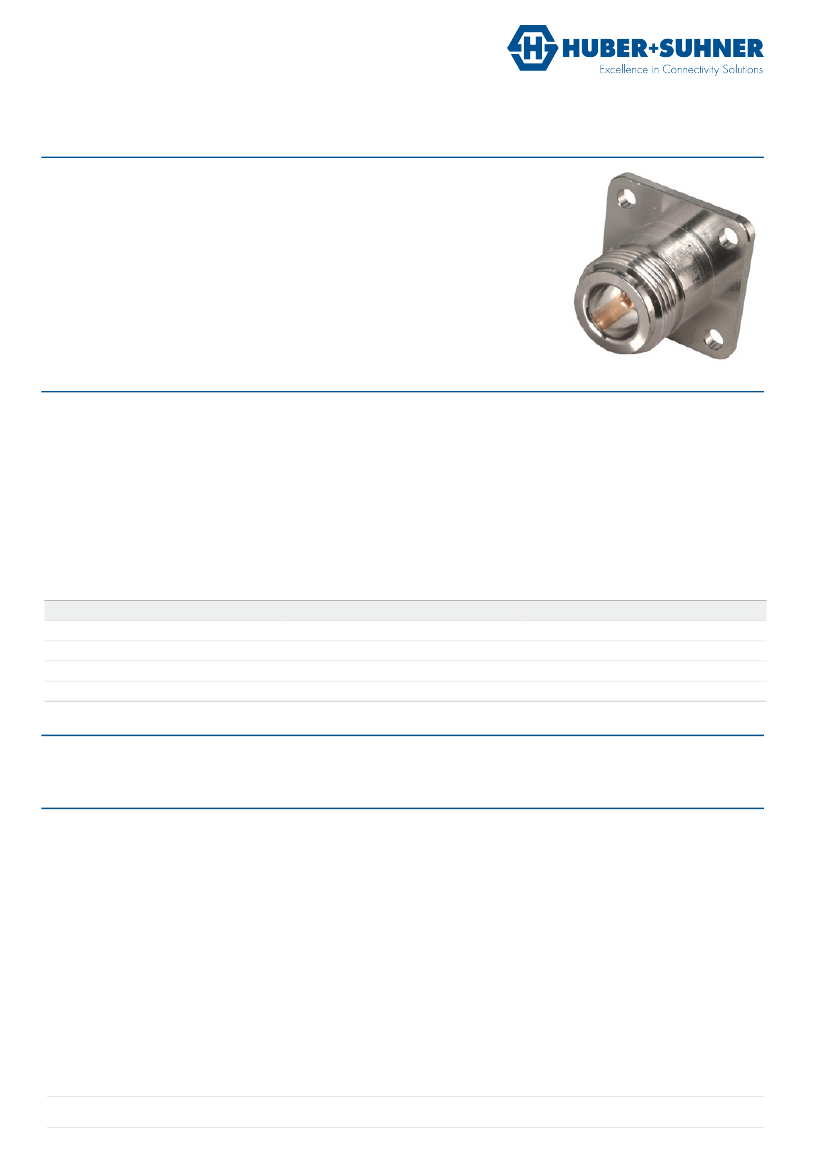

Data Sheet
Coaxial Panel Connector
23_N-50-0-69/133_N
Description
Straight panel receptacle jack, flange mount
Interface standards
IEC 61169-16_MIL-STD-348A/304_CECC 22210
Technical Data
Electrical Data
Impedance
Interface frequency max.
50 Ω
11 GHz
Mechanical Data
Number of matings
Weight
500
0.0279 kg
Environmental Data
Operating temperature
2011/65/EU (RoHS)
-65 °C to 165 °C
compliant
Material Data
Piece Parts
Centre contact
Outer contact
Body
Insulator
Material
Bronze
Brass
Brass
PFA / PTFE
Surface Plating
Gold Plating (Nickel underplated)
SUCOPLATE (R) Plating
SUCOPLATE (R) Plating
Related Documents
Outline drawing
Catalogue drawing
DOU-00010375
DCA-00010377
Ordering Information
Bulk 150 pcs package
23_N-50-0-69/133_NX
HUBER+SUHNER is certified according to ISO 9001, ISO 14001, ISO/TS 16949 and IRIS
www.hubersuhner.com
Waiver: It is exclusively in written agreements that we provide our customers with warrants and representations as to the technical specifications and/or the fitness for any
particular purpose. The facts and figures contained herein are carefully compiled to the best of our knowledge, but they are intended for general information purposes only.
Document: DOC-0000187679 H / PDO B / date of publication: 22.04.2016 17:36:31 / uncontrolled copy
Page 1/1
