Datasheet> All Categories > The connector> Modular connectors/Ethernet connector> 17-102284

17-102284: DescriptionModular Connector/Ethernet Connector RECEPTACLE ASSEMBLY KIT -GREEN PLASTIC VERSION WITH SH. RJ45 COUPLER; CategoryThe connector Modular connectors/Ethernet connector; File Size401KB，2 Pages; ManufacturerCONEC; Websitehttp://www.conec.com

Download Datasheet Parametric Compare View All

17-102284 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	17-102284	-	-	View	Buy Now

17-102284 Overview

Modular Connector/Ethernet Connector RECEPTACLE ASSEMBLY KIT -GREEN PLASTIC VERSION WITH SH. RJ45 COUPLER

17-102284 Parametric

Parameter Name	Attribute value
Maker	CONEC
Product Category	Modular Connector/Ethernet Connector
Number of ports	1 Port
performance category	Cat 5e
Installation style	Panel
shield	Shielded
Current rating	1.2 A
Voltage rating	100 VDC
color	Green
Minimum operating temperature	- 40 C
Maximum operating temperature	+ 85 C
IP rating	IP67
Contact plating	Gold
Type	Female
Installation angle	Straight
Contact material	Phosphor Bronze
Flammability rating	UL 94 V-0
Locking mechanism	Bayonet
Insulation resistance	500 MOhms
Factory packaging quantity	10

Preview

Download Datasheet

View All

Shielded Cat.5e

RJ45 Inline Coupler

26.50

0.05

32.71

Panel Flange

Receptacle Housing

)Plastic in different Colors

Bayonet Locking Style)

28.00

0.05

Bayonet Channel x 3

Recommended Panel Cutout

Panel Nut

(M28 x1.5)

Panel Gasket

3.5

Notes:

1. Electrical Specifications:

- Meets EIA/TIA-568-B.2 Cat.5e Specification

- Contact Resistance: 20mOhm max.

- Insulation Resistance: 500MOhm min. @ 100 VDC

- Current Rating: 1.2A max. at 25

- Working Voltage: 100 VDC

- DWV: 1000 VDC/60s Contact to Contact, 1500 VDC/60s Contact to Metal Shell

- Operating Temperature: -40

C to +85

2. Material and Finish:

- Receptacle Housing: Polyester (Color: see Part Number Table); UL94 V-0

- Panel Nut: Brass, Finish: Nickel Plated

- Panel Gasket: Silicon, Color: White

- Cat.5e RJ45 Inline Coupler Metal Shell: Copper Alloy, Nickel Plated

- Cat.5e RJ45 Inline Coupler Plastic Housing: Glass filled PBT UL94 V-0, Color: Black

- Cat5e RJ45 Inline Coupler Contacts: Phosphor Bronze, Finish: 50u" Gold min. over Nickel

3. Connector can be front or rear mounted to a maximum panel thickness of 3.2mm.

4. IP67 rated when covered or fully mated with the appropriate mating connector

5. RoHS compliant

Directive 2002/95/EC RoHS Compliant

19.4

29.7

34.5

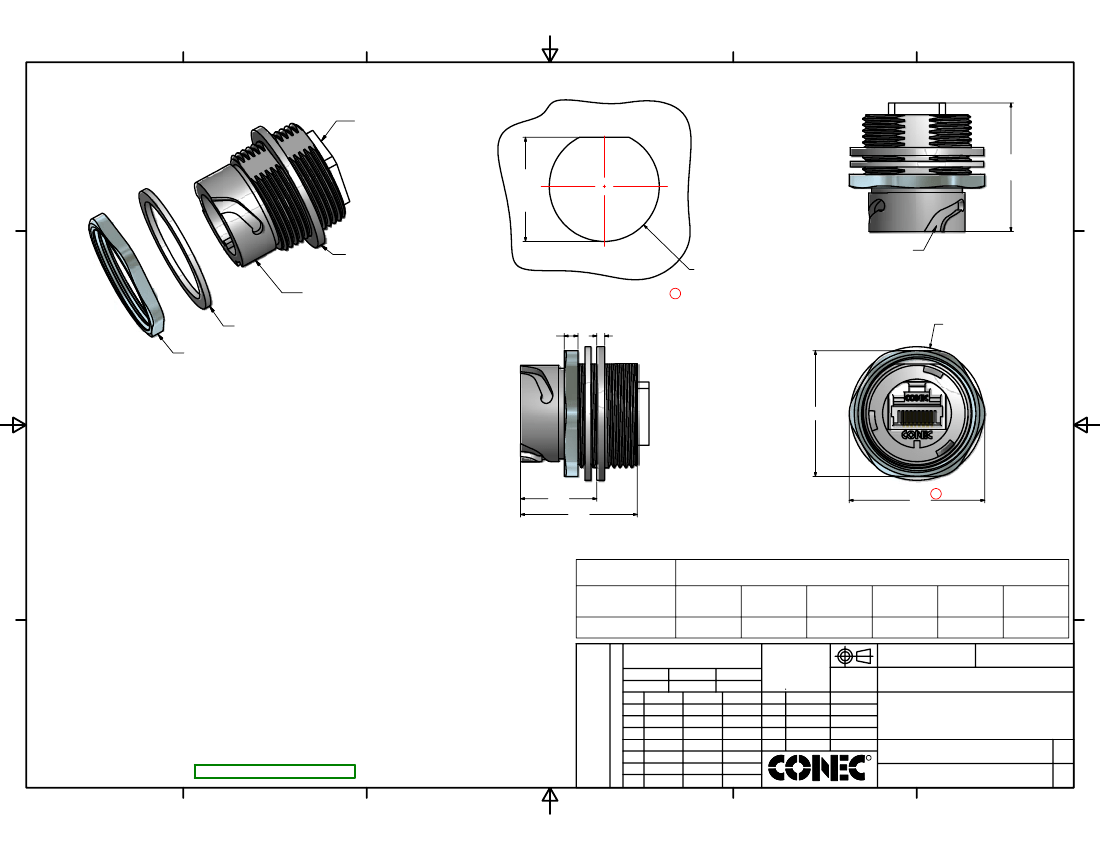

Colored Plastic Receptacle Housing with Shielded Cat.5e RJ45 Inline Coupler

Black

17-10009

Blue

17-102274

Tolerance

0 PLC

1 PLC

2 PLC

3 PLC

ANGLES

Description

Plastic Receptacle

Housing Color

Part Number

THIS DRAWING MAY NOT BE COPIED OR REPRODUCED

IN ANY WAY, AND MAY NOT BE PASSED ON TO A THIRD

PARTY WITHOUT WRITTEN PERMISSION.

OWNERSHIP AND COPYRIGHT OF CONEC CORPORATION

Green

17-102284

0.50

0.38

0.25

0.10

Yellow

17-102294

Red

17-102304

White

17-102314

DOT NOT ALTER CAD DRAWING BY HAND

Customer:

Name

Title

Approval Date

Unless otherwise specified

Scale: 1.5:1

Autodesk

Inventor

Name

Vincent Ke

J. Chaudry

Dim. in mm

Material: See Notes

Title:

2011

Draw.

Appd.

Norm

D-old

Date

Jan. 08

Jan. 28

Receptacle Assembly Kit

DIN

Colored Plastic Receptacle Housing

with Shielded Cat. 5e RJ45 Inline Coupler

Rev.

Mar/08/2011 Vincent Ke

original

Changes

Date

Name

Drawing No.: 17K1A180

Part No.: SEE ABOVE TABLE

Sheet

1/1
