16_QMA-50-3-2/133_NH datasheet, PDF

Datasheet> All Categories > The connector> The connector> 16_QMA-50-3-2/133_NH

16_QMA-50-3-2/133_NH: DescriptionRF Connector/Coaxial Connector; CategoryThe connector The connector; File Size100KB，2 Pages; ManufacturerHUBER+SUHNER

Download Datasheet Parametric Compare View All

16_QMA-50-3-2/133_NH Overview

RF Connector/Coaxial Connector

16_QMA-50-3-2/133_NH Parametric

Parameter Name	Attribute value
package instruction	ROHS COMPLIANT
Reach Compliance Code	compliant
ECCN code	EAR99
Other features	APPLICABLE CABLE: RG 58C/U, VSWR MAX AT 1 GHZ
Body/casing type	PLUG
Characteristic impedance	50 Ω
Connector type	RF CONNECTOR
Contact to complete cooperation	NOT SPECIFIED
Contact point gender	MALE
Coupling type	SNAP
DIN compliance	NO
Filter function	NO
IEC compliance	NO
insulator material	PFA/PTFE
MIL compliance	NO
Plug information	MULTIPLE MATING PARTS AVAILABLE
Installation method	RIGHT ANGLE
Installation type	CABLE
Maximum operating frequency	18 GHz
Options	GENERAL PURPOSE
Panel mounting	NO
Termination type	CRIMP SOLDER
voltage standing wave ratio	1.05
Base Number Matches	1

Preview

Download Datasheet

View All

Data Sheet

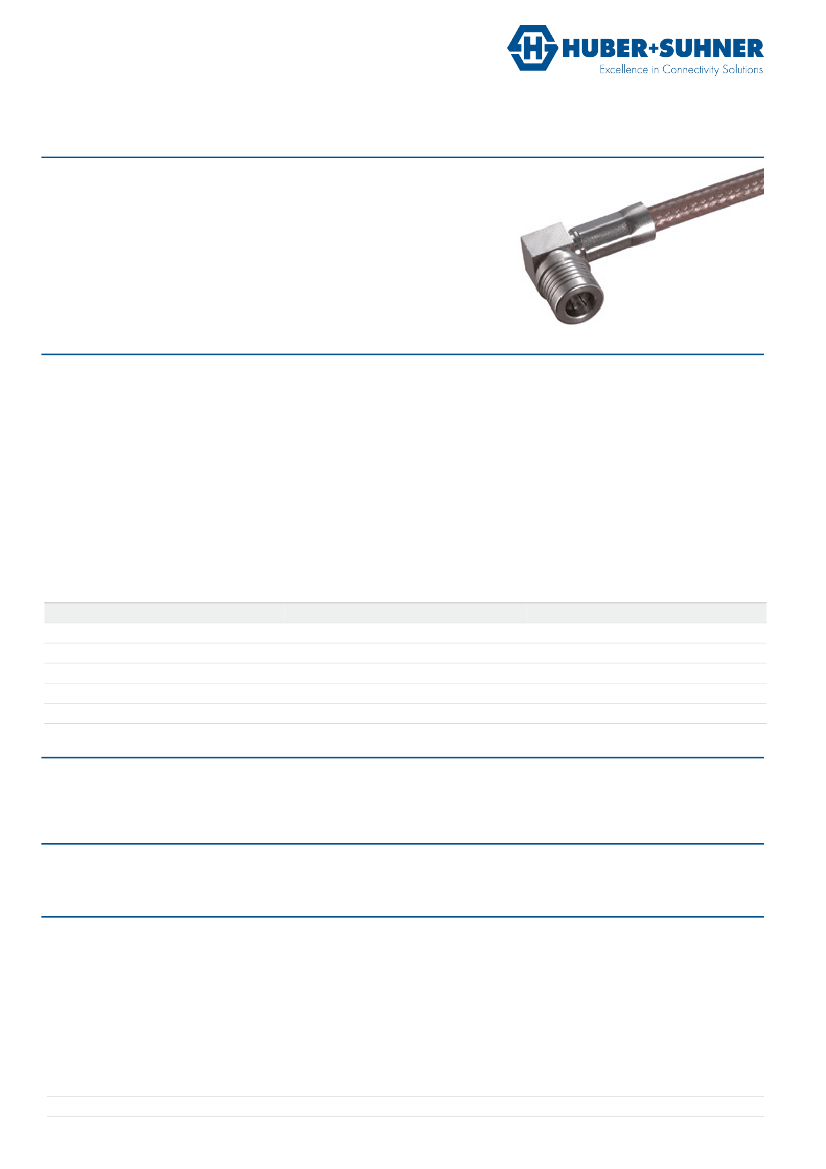

Coaxial Cable Connector

16_QMA-50-3-2/133_N

Description

Right angle cable plug

Interface standards

QMA QLF compliant

Technical Data

Electrical Data

Impedance

Interface frequency max.

Frequency range

Return loss

50 Ω

18 GHz

DC to 1 GHz

32 dB

Mechanical Data

Centre contact

Outer contact

Weight

soldered

crimped

0.0081 kg

Environmental Data

Operating temperature

2011/65/EU, RoHS

-40 °C to 85 °C

compliant

Material Data

Piece Parts

Centre contact

Outer contact

Body

Insulator

Crimp ferrule

Material

Brass

Bronze

Brass

PFA / PTFE

Copper

SUCOPLATE (R) Plating

Surface Plating

SUCOPRO Plating

SUCOPLATE (R) Plating

16_QMA-50-3-2/133_NH Related Products

	16_QMA-50-3-2/133_NH	16_QMA-50-3-2/133_NE
Description	RF Connector/Coaxial Connector	RF Connector/Coaxial Connector
package instruction	ROHS COMPLIANT	ROHS COMPLIANT
Reach Compliance Code	compliant	compliant
Other features	APPLICABLE CABLE: RG 58C/U, VSWR MAX AT 1 GHZ	APPLICABLE CABLE: RG 58C/U, VSWR MAX AT 1 GHZ
Body/casing type	PLUG	PLUG
Characteristic impedance	50 Ω	50 Ω
Connector type	RF CONNECTOR	RF CONNECTOR
Contact to complete cooperation	NOT SPECIFIED	NOT SPECIFIED
Contact point gender	MALE	MALE
Coupling type	SNAP	SNAP
DIN compliance	NO	NO
Filter function	NO	NO
IEC compliance	NO	NO
insulator material	PFA/PTFE	PFA/PTFE
MIL compliance	NO	NO
Plug information	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE
Installation method	RIGHT ANGLE	RIGHT ANGLE
Installation type	CABLE	CABLE
Maximum operating frequency	18 GHz	18 GHz
Options	GENERAL PURPOSE	GENERAL PURPOSE
Panel mounting	NO	NO
Termination type	CRIMP SOLDER	CRIMP SOLDER
voltage standing wave ratio	1.05	1.05
Base Number Matches	1	1
