Data Sheet
Within Series Adaptor
34_QLA-01-0-2/112_N
Description

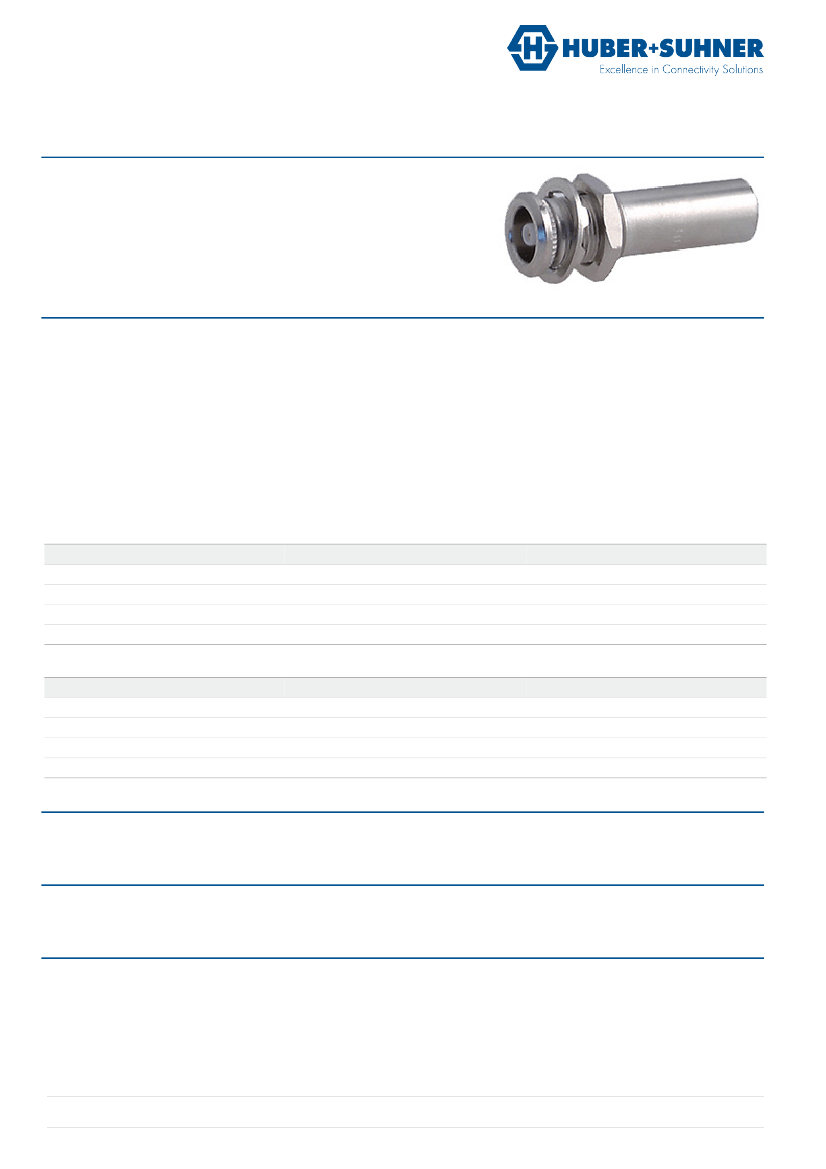

Bulkhead adaptor jack/jack
QLA-01 jack (female) / QLA-01 jack (female)
Interface standard
Series QLA-01 - NIM-CAMAC-Standard CD/N549
Technical Data
Electrical Data
Impedance
Interface frequency max.
other Ω
1.4 GHz
Mechanical Data
Number of matings
Weight
10000
0.0046 kg
Environmental Data
Operating temperature
2011/65/EU (RoHS)
-55 °C to 150 °C
compliant
Material Data
Interface - QLA-01 jack (female)
Piece Parts
Centre contact
Outer contact
Body
Insulator
Brass
PFA / PTFE
Material
Copper Beryllium Alloy
Surface Plating
Gold Plating (Nickel underplated)
Gold Plating (Nickel underplated)
Nickel Plating
Interface - QLA-01 jack (female)
Piece Parts
Centre contact
Outer contact
Body
Insulator
Brass
PFA / PTFE
Material
Copper Beryllium Alloy
Surface Plating
Gold Plating (Nickel underplated)
Gold Plating (Nickel underplated)
Nickel Plating
Related Documents
Catalogue drawing
Mounting hole
DCA-00013893
DOU-00009113
Ordering Information
Single package
Bulk 100 pcs package
34_QLA-01-0-2/112_NE
34_QLA-01-0-2/112_NC
Remarks
VSWR (typical values for mated connector pair 11_QLA to 21_QLA)
1.15:1 for DC to 300 MHz
1.20:1 for 300 MHz to 1.4 GHz
