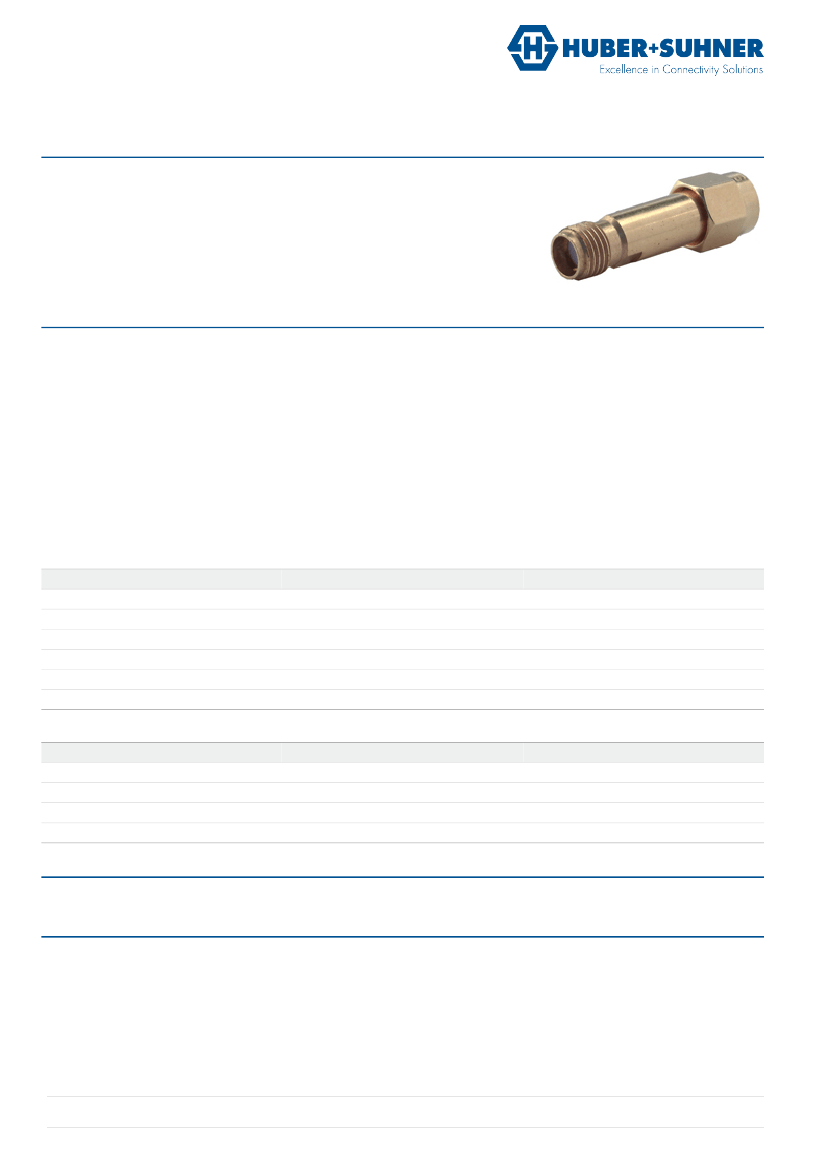

Data Sheet
Within Series Adaptor
33_SMA-50-0-100/111_N
Description
Adaptor plug/jack
SMA-precision plug (male) / SMA-precision jack (female)
For Test & Measurement applications
Expanded freq. range up to 26.5 GHz
Interface standard
Series SMA-precision - IEC 60169-15_MIL-STD-348A/405_CECC 22110
Technical Data
Electrical Data
Impedance
Interface frequency max.
Electrical length
50 Ω
26.5 GHz
31.94 mm
Mechanical Data
Number of matings
Weight
500
0.0055 kg
Environmental Data
Operating temperature
2011/65/EU (RoHS)
-65 °C to 125 °C
compliant
Material Data
Interface - SMA-precision plug (male)
Piece Parts
Centre contact
Outer contact
Body
Insulator
Coupling nut
Gasket
Material
Copper Beryllium Alloy
Copper Beryllium Alloy
Copper Beryllium Alloy
PFA / PTFE
Bronze
VMQ (Silicone rubber)
Gold Plating (Nickel underplated)
Surface Plating
Gold Plating (Nickel underplated)
Gold Plating (Nickel underplated)
Gold Plating (Nickel underplated)
Interface - SMA-precision jack (female)
Piece Parts
Centre contact
Outer contact
Body
Insulator
Material
Copper Beryllium Alloy
Copper Beryllium Alloy
Copper Beryllium Alloy
PFA / PTFE
Surface Plating
Gold Plating (Nickel underplated)
Gold Plating (Nickel underplated)
Gold Plating (Nickel underplated)
Related Documents
Catalogue drawing
DCA-00013734
Ordering Information
Single package
33_SMA-50-0-100/111_NE
HUBER+SUHNER is certified according to ISO 9001, ISO 14001, ISO/TS 16949 and IRIS
www.hubersuhner.com
Waiver: It is exclusively in written agreements that we provide our customers with warrants and representations as to the technical specifications and/or the fitness for any
particular purpose. The facts and figures contained herein are carefully compiled to the best of our knowledge, but they are intended for general information purposes only.
Document: DOC-0000194315 Q / PDO F / date of publication: 12/4/2014 4:37:41 PM / uncontrolled copy
Page 1/1
