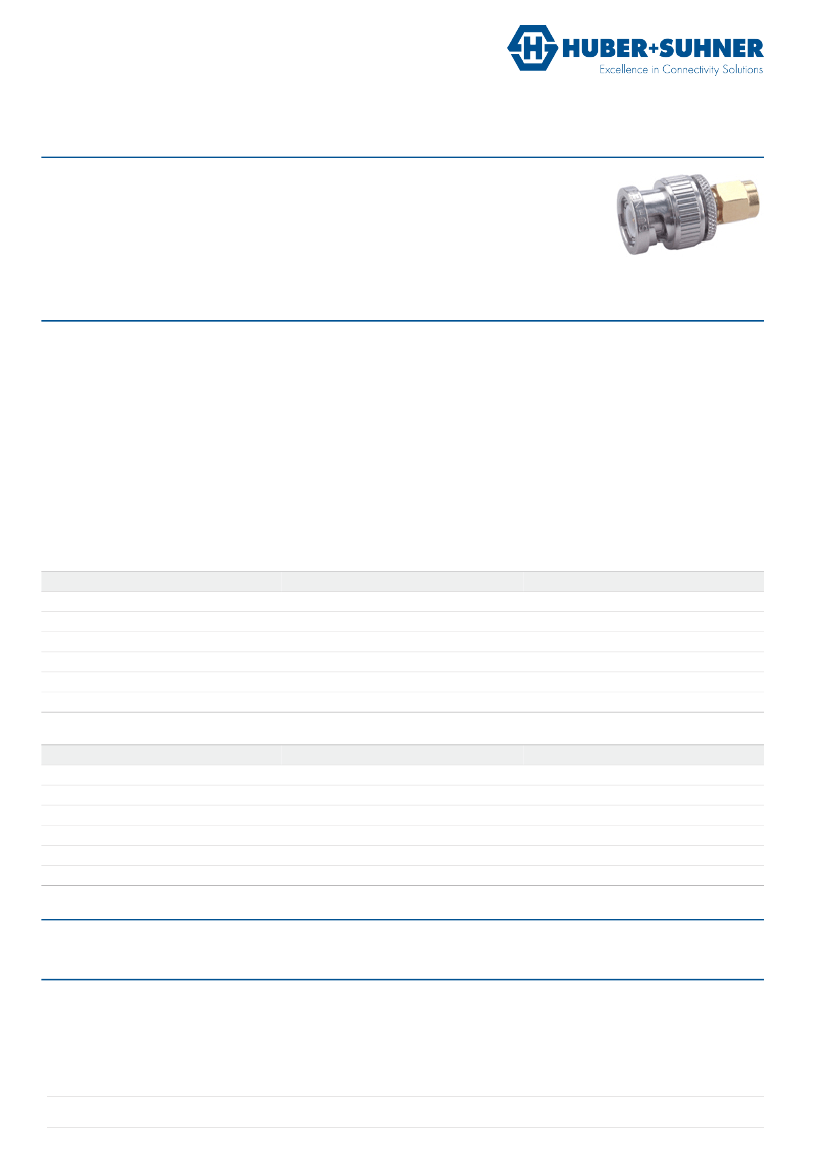

Data Sheet
Between Series Adaptor
32_BNC-SMA-50-1/1--_U
Description
Adaptor plug/plug
BNC plug (male) / SMA plug (male)
Interface standards
Series BNC - IEC 61169-8_MIL-STD-348A/301_CECC 22120
Series SMA - IEC 60169-15_MIL-STD-348A/310_CECC 22110
Technical Data
Electrical Data
Impedance
Interface frequency max.
VSWR
50 Ω
4 GHz
DC - 4 GHz
≤ 1.03 + 0.03 f (GHz)
Mechanical Data
Number of matings
Weight
500
0.0132 kg
Environmental Data
Operating temperature
2011/65/EU (RoHS)
°C to °C
compliant
Material Data
Interface - BNC plug (male)
Piece Parts
Centre contact
Outer contact
Body
Insulator
Coupling nut
Gasket
Material
Copper Beryllium Alloy
Brass
Brass
PFA / PTFE
Brass
VMQ (Silicone rubber)
SUCOPLATE (R) Plating
Surface Plating
Gold Plating (without Nickel underplating)
SUCOPLATE (R) Plating
SUCOPLATE (R) Plating
Interface - SMA plug (male)
Piece Parts
Centre contact
Outer contact
Body
Insulator
Coupling nut
Gasket
Material
Copper Beryllium Alloy
Copper Beryllium Alloy
Brass
PFA / PTFE
Bronze
FVMQ (Fluoro silicone elastomer)
Gold Plating (without Nickel underplating)
Surface Plating
Gold Plating (without Nickel underplating)
Gold Plating (without Nickel underplating)
Gold Plating (without Nickel underplating)
Related Documents
Catalogue drawing
DCA-00014530
Ordering Information
Single package
32_BNC-SMA-50-1/1--_UE
HUBER+SUHNER is certified according to ISO 9001, ISO 14001, ISO/TS 16949 and IRIS
www.hubersuhner.com
Waiver: It is exclusively in written agreements that we provide our customers with warrants and representations as to the technical specifications and/or the fitness for any
particular purpose. The facts and figures contained herein are carefully compiled to the best of our knowledge, but they are intended for general information purposes only.
Document: DOC-0000195517 O / PDO E / date of publication: 12/4/2014 4:38:29 PM / uncontrolled copy
Page 1/1
