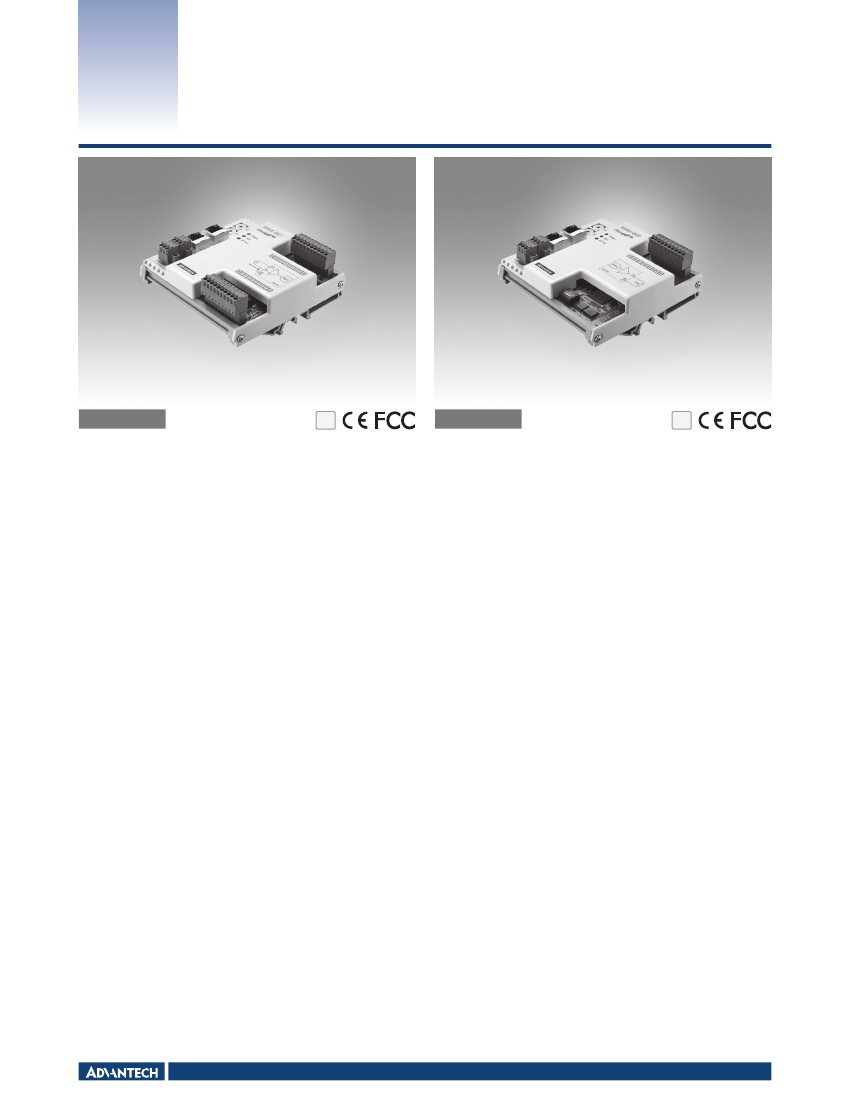

AMAX-4817
AMAX-4820
8-Channel, 16-Bit Isolated Analog Input
EtherCAT Remote I/O Module
4-Channel, 16-Bit Isolated Analog Output
EtherCAT Remote I/O Module
AMAX-4817
RoHS
COMPLIANT
2002/95/EC
AMAX-4820
RoHS
COMPLIANT
2002/95/EC
Features
Suitable for EtherCAT networks
8 x 16-bit analog input channels with 2,500 V
DC
isolation
Wide common-mode voltage range (±275 V)
Removable European-type connector
Supports EtherCAT distributed clocks (DC) mode and SyncManager mode
2 x Rotating switches that support up to 256 slave IDs
Features
Suitable for EtherCAT networks
4 x 16-bit analog output channels with 2,500 V
DC
isolation
Multiple voltage and current output ranges
Removable European-type connector
Supports EtherCAT distributed clocks (DC) mode and SyncManager mode
2 x Rotating switches that support up to 256 slave IDs
Introduction
AMAX-4817 is an industrial-grade remote I/O slave module equipped with the EtherCAT
protocol. European-type pluggable terminal blocks facilitate module setup and
maintenance, while the compact size and support for DIN-rail mounting ensure easy
installation in cabinet configurations. For safe and reliable operation, all of the 8 analog
input channels are protected by a 2,500 V
DC
isolation circuit.
Introduction
AMAX-4820 is an industrial-grade remote I/O slave module equipped with the EtherCAT
protocol. European-type pluggable terminal blocks facilitate module setup and
maintenance, while the compact size and support for DIN-rail mounting ensure easy
installation in cabinet configurations. For safe and reliable operation, all of the 4 analog
output channels are protected by a 2,500 V
DC
isolation circuit.
Specifications
Communication
Interface
Data Transfer Medium
Distance Between Modules
Communication Cycle Time
Data Transfer Rates
EtherCAT
Ethernet/EtherCAT cable (min. CAT 5), shielded
Max. 100 m (100BASE-TX)
100 μs (guarantees all channel data are updated)
100 Mbps
Specifications
Communication
Interface
EtherCAT
Data Transfer Medium
Ethernet/EtherCAT cable (min. CAT 5), shielded
Distance Between Modules
Max. 100 m (100BASE-TX)
Communication Cycle Time
100 μs (guarantees all channel data are updated)
Data Transfer Rates
100 Mbps
Channels
Resolution
Output Voltage Range
Output Current Range
Load
4
16 bits
0 ~ 5 V, 0 ~ 10 V, ±5 V, ±10 V
0 ~ 20 mA, 4 ~ 20 mA
> 1 kΩ (voltage output)
< 625
Ω
(current output)
< ±0.1%
2,500 V
DC
40 μs for all channels
1 x 10-pin terminal block (I/O), 3.81 mm
1 x 3-pin screw terminal block (power), 3.81 mm
2 x RJ-45 (EtherCAT)
120 x 120 x 40 mm (4.72 x 4.72 x 1.57 in)
-20 ~ 60 °C (32 ~ 140 °F)
-40 ~ 70 °C (-40 ~ 158 °F)
5 ~ 95% RH (non-condensing)
10 ~ 30 V
DC
Typical 160 mA @24 V; Max. 190 mA @24 V
Analog Input
Channels
8
Resolution
16 bits
Input Voltage Range
0 ~ 10 V, ±10 V
Common-Mode Voltage Range
±275 V
Measurement Error
< ±0.1%
Isolation Protection
2,500 V
DC
Conversion Time
40 μs for all channels
Note: Because the analog sampling rate exceeds the communication cycle time, the maximum polling
rate will be limited by the communication cycle time = 10 kS/s for each channel.
Analog Output
Output Error
Isolation Protection
Conversion Time
General
Connectors
Dimensions
Operating Temperature
Storage Temperature
Storage Humidity
Power Supply
Power Consumption
2 x 10-pin terminal block (I/O), 3.81 mm
1 x 3-pin screw terminal block (power), 3.81 mm
2 x RJ-45 (EtherCAT)
120 x 120 x 40 mm (4.72 x 4.72 x 1.57 in)
-20 ~ 60 °C (32 ~ 140 °F)
-40 ~ 70 °C (-40 ~ 158 °F)
5 ~ 95% RH (non-condensing)
10 ~ 30 V
DC
Typical 85 mA @24 V; Max. 110 mA @24 V
General
Connectors
Dimensions
Operating Temperature
Storage Temperature
Storage Humidity
Power Supply
Power Consumption
Ordering Information
AMAX-4817-AE
96PSD-A40W24-MM
8-ch, 16-bit isolated AI EtherCAT remote I/O module
DIN rail A/D 100 ~ 240 V, 40 W, 24 V
Ordering Information
AMAX-4820-AE
96PSD-A40W24-MM
4-ch, 16-bit isolated AO EtherCAT remote I/O module
DIN rail A/D 100 ~ 240 V, 40 W, 24 V
Intelligent Motion Control and Machine Vision
All product specifications are subject to change without notice.
Last updated: 4-Dec-2017
