SJ025M0330D5F-1012 datasheet, PDF

Datasheet> All Categories > Passive components> capacitor> SJ025M0330D5F-1012

SJ025M0330D5F-1012: DescriptionAluminum Electrolytic Capacitor, Polarized, Aluminum, 25V, 20% +Tol, 20% -Tol, 330uF,; CategoryPassive components capacitor; File Size208KB，5 Pages; ManufacturerYAGEO; Websitehttp://www.yageo.com/; Environmental Compliance

Download Datasheet Parametric View All

SJ025M0330D5F-1012 Overview

Aluminum Electrolytic Capacitor, Polarized, Aluminum, 25V, 20% +Tol, 20% -Tol, 330uF,

SJ025M0330D5F-1012 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Objectid	746348318
package instruction	,
Reach Compliance Code	compliant
ECCN code	EAR99
capacitance	330 µF
Capacitor type	ALUMINUM ELECTROLYTIC CAPACITOR
diameter	10 mm
dielectric materials	ALUMINUM (WET)
ESR	53 mΩ
length	12 mm
negative tolerance	20%
Number of terminals	2
Maximum operating temperature	105 °C
Minimum operating temperature	-40 °C
Package form	Radial
method of packing	Tape
polarity	POLARIZED
positive tolerance	20%
Rated (DC) voltage (URdc)	25 V
ripple current	1030 mA
Terminal pitch	5 mm

Preview

Download Datasheet

View All

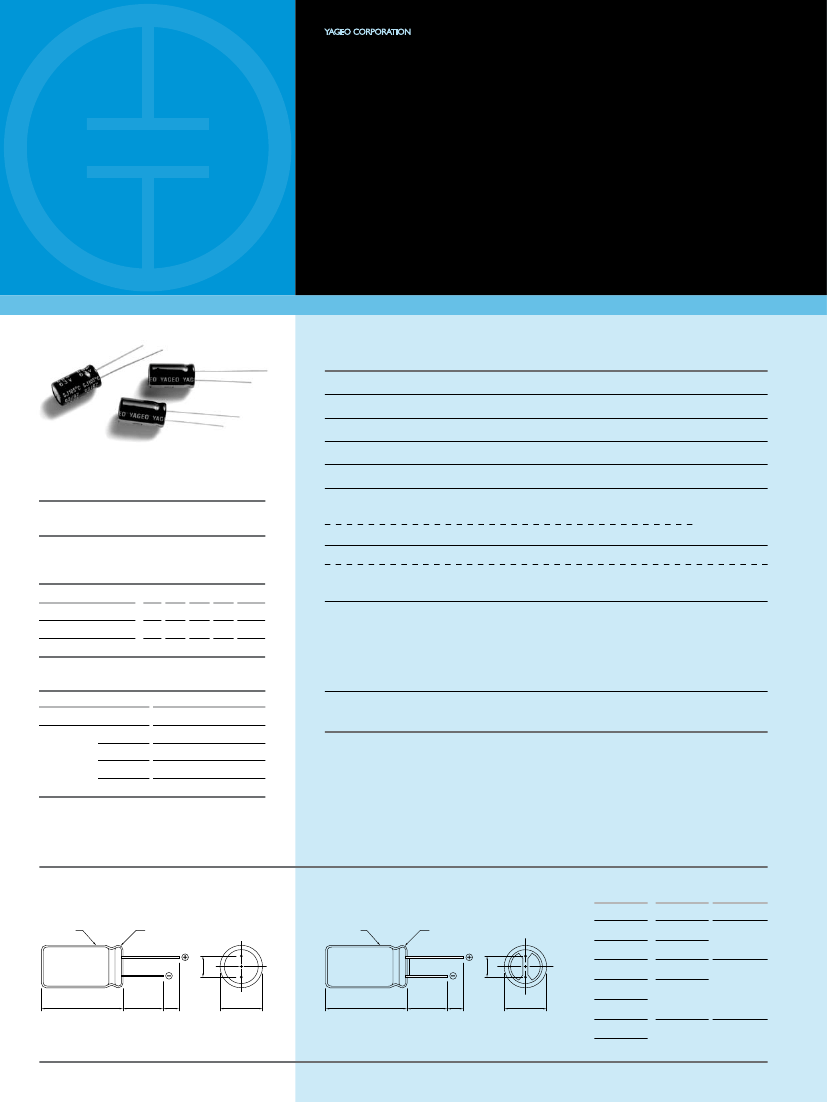

YAGEO CORPORATION

ELECTROLYTIC CAPACITORS

Miniature Aluminum

Electrolytic Capacitors

S J

[ Low Impedance and High Ripple Series ]

105°C 1000 ~ 5000 Hours, Low Impedance and High Ripple Current

ELECTRICAL CHARACTERISTICS

Operating Temperature Range : -40 ~ +105°C

Rated Voltage Range : 6.3 ~ 100V

Rated Capacitance Range : 5.6 ~ 6800µF

Capacitance Tolerance : -20 ~ +20% at 120KHz

DESCRIPTION

AV (TV, Video, Audio), Monitor / Computer, OA / HA

/ Communication, Converter / Inverter, Adapter, SMPS

MULTIPLIER FOR RIPPLE CURRENT

Frequency Coefficient

FREQUENCY (Hz)

5.6~390µF

470~1000µF

1200~6800µF

ENDURANCE

CASE

L=7

≥

Dø

≤

6.3

Dø = 8

Dø = 10

Dø

≥

LIFE TIME (HOURS)

1000

2000

3000

4000

5000

120 1K

10K 100K

0.60 0.70 0.85 0.95 1.00

0.65 0.75 0.90 0.98 1.00

0.75 0.80 0.95 1.00 1.00

DC Leakage Current (µA) : I = 0.01 CV (µA) or 3µA whichever is greater.

Dissipation Factor

W V (V) : 6.3

D.F. (%) : 22

W V (V)

6.3

100

Impedance : Z - 25°C / Z + 20°C

Z - 40°C / Z + 20°C

Endurance: After the rated voltage and maximum ripple current have been applied at 105°C for 1000

~ 5000 hours, the capacitors shall meet the following requirements.

(a) Capacitance Change: Within±25% of the Initial Value

(b) Dissipation Factor: Not Exceeding 200% of the Specified Value

Shelf Life: After having been placed at 105°C without voltage applied for 1000 hours. (500 hours for L=7)

The capacitors shall meet the same requirements as Endurance.

DIAGRAM OF DIMENSIONS

Rubber Stand-off

Dimensions: mm

Dø

4.0

1.5

2.0

2.5

3.5

5.0

7.5

0.8

0.6

dø

0.45

0.5

Vinyl Sleeve

(P.V.C)

Rubber End Seal

Vinyl Sleeve

(P.V.C)

0.5

Rubber End Seal

5.0

6.3

0.5

8.0

10.0

0.5

15Min.

5Min.

0.5

15Min.

5Min.

13.0

16.0

18.0

≤

16 L + 1.5Max.

16 L + 2Max.

Dø = 8 & 10 L + 2.5Max.

Dø

20 Dø + 0.5

Dø

≥

20 Dø + 1
