HDB-D4-040M035X datasheet, PDF

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > The connector> The connector> HDB-D4-040M035X

Preview

HDB-D4-040M035X: DescriptionRectangular Mil-Spec Connector 40 Pin DaughterBoard PCB RA .016 Dia, Tin; CategoryThe connector The connector; File Size269KB，2 Pages; ManufacturerAmphenol; Websitehttp://www.amphenol.com/

Download Datasheet Parametric View All

HDB-D4-040M035X Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	HDB-D4-040M035X	-	-	View	Buy Now

HDB-D4-040M035X Overview

Rectangular Mil-Spec Connector 40 Pin DaughterBoard PCB RA .016 Dia, Tin

HDB-D4-040M035X Parametric

Parameter Name	Attribute value
Maker	Amphenol
package instruction	ROHS COMPLIANT
Reach Compliance Code	unknown
ECCN code	EAR99
Connector type	BOARD CONNECTOR
Contact to complete cooperation	GOLD (50) OVER NICKEL
Contact completed and terminated	MATTE TIN (100) OVER NICKEL (100)
Contact point gender	FEMALE
Contact material	NOT SPECIFIED
DIN compliance	NO
Filter function	NO
IEC compliance	NO
JESD-609 code	e3
MIL compliance	NO
Plug information	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO
Installation method	RIGHT ANGLE
Installation type	BOARD
Number of rows loaded	4
Options	GENERAL PURPOSE
Terminal pitch	0.07 mm
Termination type	SOLDER
Total number of contacts	40

Preview

Download Datasheet

View All

Amphenol

®

High Density HDB

3

Daughter Board Connector

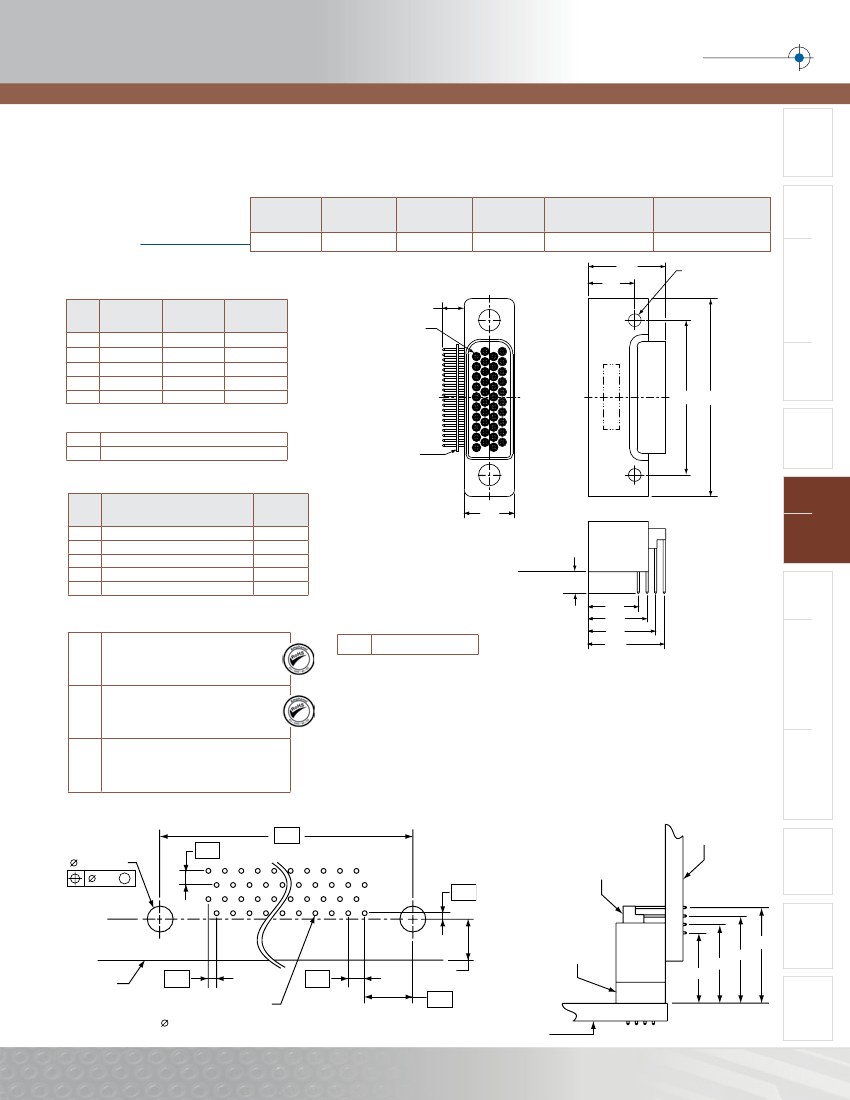

DIMENSIONAL DRAWING & HOW TO ORDER

HDB

3

DAUGHTER BOARD - HOW TO ORDER

Mates with:

•

Mother Board

Amphenol

Aerospace

Introduction/

Pkg. Solutions/

Brush Contact

1.

Connector Type

HDB-D4

Designates HDB Daughter Board

3

2.

Number of

Contacts

-040

3.

Brush Wire

Plating

M

4.

Termination

01

5.

Contact Termination

Less Hardware

(Purchased separately see

Finish

pg X for hardware options)

Staggered/ Hybrids - Fiber Optics/ Options/

GEN-X

Hi Speed/RF/Power Accessories

LRM (Line Replaceable Modules)

HDB-D4

2

.540

.325

X

.086 MIN. DIA.

THRU HOLE

(USE NO. 2 SCREW)

2.

Number of Contacts

6

1

Number of

Contacts

040

060

080

120

160

40

60

80

120

160

Dimen-

sion A

1.375

1.725

2.075

2.775

3.475

Dimension

C

1.075

1.425

1.775

2.475

3.175

E ±.020

TYP

5

2

PIN 1

3

4

C

A

Ruggedized

VME 64x/

VITA 60, 66

3.

Brush Wire Plating

M

C

0.000050 Au Min. thick over Nickel

0.000020 Au Min. thick over Nickel

ORGANIZER

(TO MAINTAIN

PIN ALIGNMENT

DURING CUSTOMER

INSTALLATION)

F

A

E

B

4.

Termination

Type

01

02

03

04

06

PCB, Right Angle, .016 Dia.

Stickout

(Dim. E)

0.090

0.120

0.150

0.180

0.300

HDB

3

High Density

C

.350

D

CONNECTOR

MOUNTING

SURFACE

E

±.020 TYP

.350

.410

.470

.530

HSB

3

Hi Speed

Standard Hybrids - Signal/Power/ Docking Conn./

Brush

Coax/Fiber Optics

Accessories/Install.

Low Mating Force MIL-DTL-55302

5.

Contact Termination Finish

2

Gold plated in accordance with

MIL-G-45204, Type II, .000030 Min.

thick Gold over .000050 Min.

thick Nickel

Tin plated in accordance with

ASTM B545, .00010 Min. thick

Matte Tin over .00010 Min. thick

Nickel

Tin-Lead plated in accordance with

SAE-AMS-P-81728, .00010 Min.

thick Tin-Lead over .00010 Min.

thick Copper

6.

Hardware

X

Less Hardware

Hardware is purchased

separately (see page 59 for

hardware options).

5

6

Daughter Board Layout

C

.060

.110 ±.005

Mated Height

Dimensions

DAUGHTER

BOARD

CONNECTOR

DAUGHTER

BOARD

Rack & Panel

Brush

Ruggedized

.005

M

.025

LMD/LMS

Rectangular

Interconnects

MOTHER

BOARD

CONNECTOR

.680

.500

.560

.620

BOARD

EDGE

.035

FINISHED HOLE SIZE PER

CUSTOMER STANDARDS FOR

.016 PCB TAIL

A

.070

.

300

.150

Other

Rectangular

Interconnects

.205

MOTHER

BOARD

Contact Amphenol Aerospace for more information at 800-678-0141 • www.amphenol-aerospace.com
