34_BNC-50-0-1/133_NE

Description
RF Adapters - Within Series
CategoryThe connector    The connector
File Size114KB,2 Pages
ManufacturerHUBER+SUHNER
Environmental Compliance
Download Datasheet Parametric View All

34_BNC-50-0-1/133_NE Overview

RF Adapters - Within Series

34_BNC-50-0-1/133_NE Parametric

Parameter NameAttribute value
Is it lead-free?Lead free
Is it Rohs certified?conform to
package instructionROHS COMPLIANT
Reach Compliance Codecompliant
ECCN codeEAR99
Adapter typeBNC-BNC
Other featuresSTANDARDS: IEC 60169-8; MIL-STD-348A/301
Body/casing typeJACK-JACK
Characteristic impedance50 Ω
Connector typeRF CONNECTOR ADAPTER
Contact to complete cooperationGOLD OVER NICKEL
Contact completed and terminatedGold (Au) - with Nickel (Ni) barrier
Contact point genderFEMALE-FEMALE
Contact materialBERYLLIUM COPPER
Contact styleCOAX
Coupling typeBAYONET
DIN complianceNO
Durability500 Cycles
Filter functionNO
IEC complianceYES
insulator materialPFA/PTFE
JESD-609 codee4
MIL complianceYES
Installation methodSTRAIGHT
Maximum operating frequency4 GHz
Maximum operating temperature165 °C
Minimum operating temperature-65 °C
OptionsGENERAL PURPOSE
Panel mountingYES
reliabilityCOMMERCIAL
voltage standing wave ratio1.48
Base Number Matches1

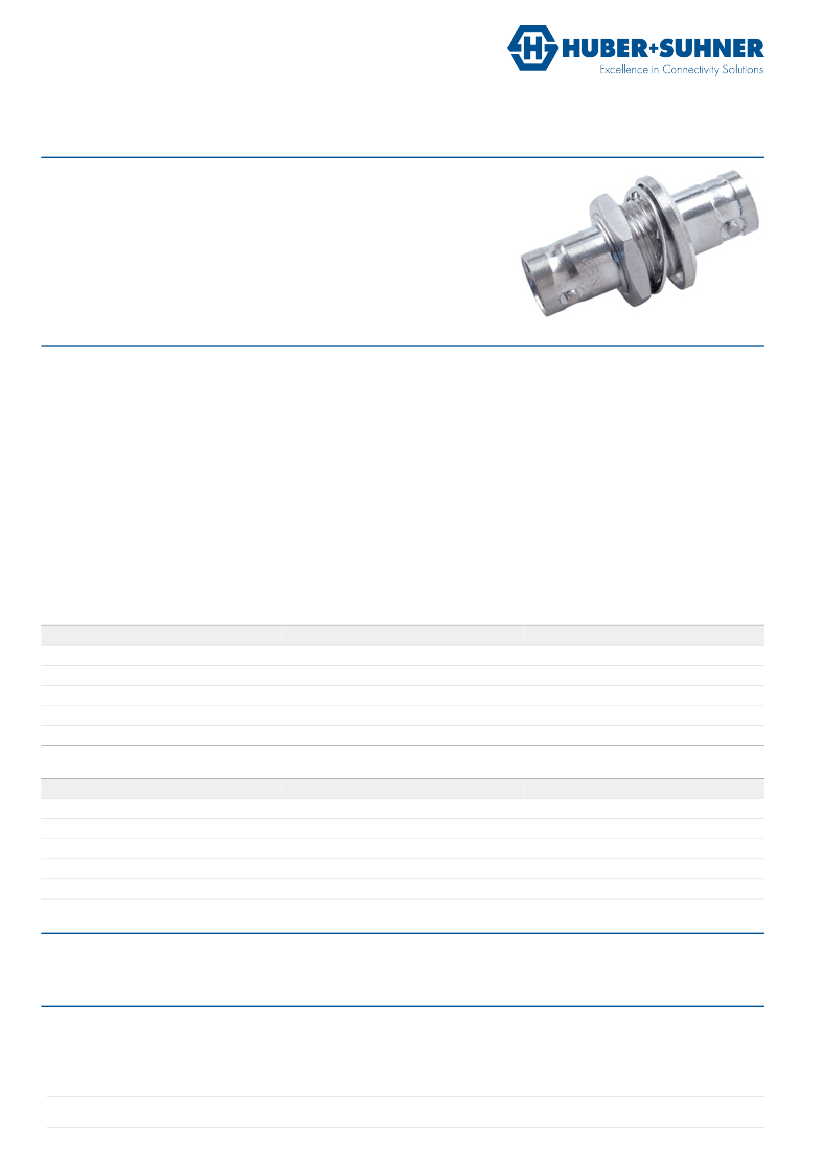

Data Sheet
Within Series Adaptor
34_BNC-50-0-1/133_N
Description
Bulkhead adaptor jack/jack
BNC jack (female) / BNC jack (female)
Interface standard
Series BNC - IEC 61169-8_MIL-STD-348A/301_CECC 22120
Technical Data
Electrical Data
Impedance
Interface frequency max.
VSWR
Frequency range
Return loss
50 Ω
4 GHz
DC - 4 GHz
≤ 1.08 + 0.1 f (GHz)
DC to 1.5 GHz
≥ 34 dB
Mechanical Data
Number of matings
Weight
500
0.0171 kg
Environmental Data
Operating temperature
2011/65/EU (RoHS)
-65 °C to 165 °C
compliant
Material Data
Interface - BNC jack (female)
Piece Parts
Centre contact
Outer contact
Body
Insulator
Gasket
Material
Copper Beryllium Alloy
Brass
Brass
PFA / PTFE
VMQ (Silicone rubber)
Surface Plating
Gold Plating (Nickel underplated)
SUCOPLATE (R) Plating
SUCOPLATE (R) Plating
Interface - BNC jack (female)
Piece Parts
Centre contact
Outer contact
Body
Insulator
Gasket
Material
Copper Beryllium Alloy
Brass
Brass
PFA / PTFE
VMQ (Silicone rubber)
Surface Plating
Gold Plating (Nickel underplated)
SUCOPLATE (R) Plating
SUCOPLATE (R) Plating
Related Documents
Catalogue drawing
Mounting hole
DCA-00013669
DOU-00008751
Ordering Information
Single package
34_BNC-50-0-1/133_NE
HUBER+SUHNER is certified according to ISO 9001, ISO 14001, ISO/TS 16949 and IRIS
www.hubersuhner.com
Waiver: It is exclusively in written agreements that we provide our customers with warrants and representations as to the technical specifications and/or the fitness for any
particular purpose. The facts and figures contained herein are carefully compiled to the best of our knowledge, but they are intended for general information purposes only.
Document: DOC-0000194249 S / PDO E / date of publication: 12/4/2014 4:37:37 PM / uncontrolled copy
Page 1/1
