37_N-SMA-50-51/1--_NE: DescriptionRF Adapters - Between Series; CategoryThe connector The connector; File Size119KB，3 Pages; ManufacturerHUBER+SUHNER

Download Datasheet Parametric View All

37_N-SMA-50-51/1--_NE Overview

RF Adapters - Between Series

37_N-SMA-50-51/1--_NE Parametric

Parameter Name	Attribute value
package instruction	ROHS COMPLIANT
Reach Compliance Code	compliant
Adapter type	N-SMA
Other features	STANDARDS: IEC 60169-15; MIL-STD-348A/310
Body/casing type	JACK-JACK
Characteristic impedance	50 Ω
Connector type	RF CONNECTOR ADAPTER
Contact point gender	FEMALE-FEMALE
Coupling type	THREADED
DIN compliance	NO
Filter function	NO
IEC compliance	YES
insulator material	PPH
MIL compliance	YES
Maximum operating frequency	18 GHz
Options	GENERAL PURPOSE
Panel mounting	YES
voltage standing wave ratio	1.15
Base Number Matches	1

Preview

Download Datasheet

View All

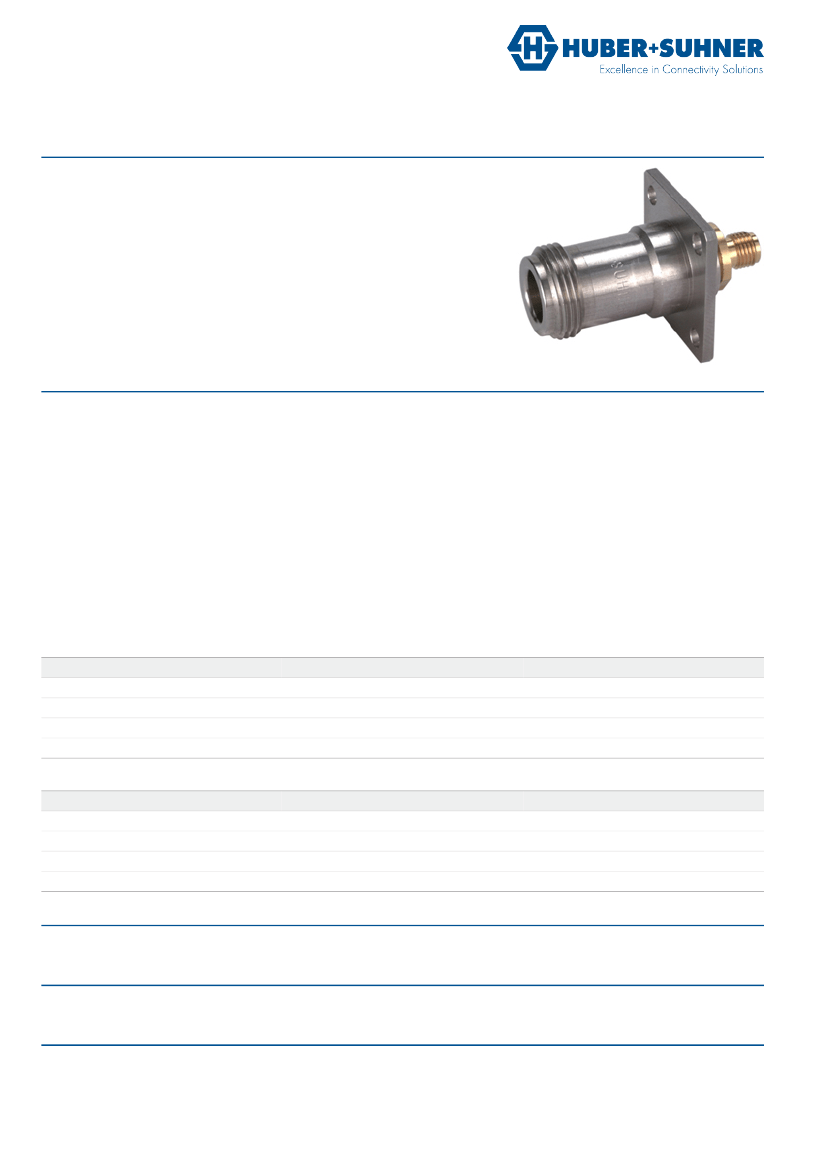

Data Sheet

Between Series Adaptor

37_N-SMA-50-51/1--_N

Description

Panel adaptor jack/jack, flange mount

N-precision jack (female) / SMA-precision jack (female)

For Test & Measurement applications

Precision adaptor

Interface standards

Series N-precision - IEC 60169-16_MIL-STD-348A/402_CECC 22210

Series SMA-precision - IEC 60169-15_MIL-STD-348A/405_CECC 22110

Technical Data

Electrical Data

Impedance

Interface frequency max.

VSWR

Electrical length

50 Ω

18 GHz

DC - 18 GHz

≤ 1.025 + 0.007 f (GHz)

32.93 mm

Mechanical Data

Number of matings

Weight

500

0.0415 kg

Environmental Data

Operating temperature

2011/65/EU (RoHS)

-55 °C to 70 °C

compliant

Material Data

Interface - N-precision jack (female)

Piece Parts

Centre contact

Outer contact

Body

Insulator

Material

Copper Beryllium Alloy

Stainless Steel

Air Dielectric - Bead - PPH

Surface Plating

Gold Plating (Nickel underplated)

Interface - SMA-precision jack (female)

Piece Parts

Centre contact

Outer contact

Body

Insulator

Material

Copper Beryllium Alloy

PFA / PTFE

Surface Plating

Gold Plating (Nickel underplated)

Recommended Resources

Gas Sensitive Alarm Circuit Part 5

SHD301 single water supply pump frequency conversion speed regulation constant pressure water supply circuit a

Discrete component headphone amplifier circuit diagram

Intermittent wiper circuit

Color TV remote control 1

Transformer coupled oscillation circuit
