34_BNC-75-0-1/133_NE datasheet, PDF

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > The connector> The connector> 34_BNC-75-0-1/133_NE

Preview

34_BNC-75-0-1/133_NE: DescriptionRF Adapters - Within Series; CategoryThe connector The connector; File Size114KB，2 Pages; ManufacturerHUBER+SUHNER; Environmental Compliance

Download Datasheet Parametric Compare View All

34_BNC-75-0-1/133_NE Overview

RF Adapters - Within Series

34_BNC-75-0-1/133_NE Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
package instruction	ROHS COMPLIANT
Reach Compliance Code	compliant
ECCN code	EAR99
Adapter type	BNC-BNC
Other features	STANDARD: IEC 61169-8
Body/casing type	JACK-JACK
Characteristic impedance	75 Ω
Connector type	RF CONNECTOR ADAPTER
Contact to complete cooperation	GOLD OVER NICKEL
Contact completed and terminated	Gold (Au) - with Nickel (Ni) barrier
Contact point gender	FEMALE-FEMALE
Contact material	BERYLLIUM COPPER
Contact style	COAX
Coupling type	BAYONET
DIN compliance	NO
Durability	500 Cycles
Filter function	NO
IEC compliance	YES
insulator material	PFA/PTFE
JESD-609 code	e4
MIL compliance	NO
Installation method	STRAIGHT
Maximum operating frequency	1 GHz
Maximum operating temperature	165 °C
Minimum operating temperature	-65 °C
Options	GENERAL PURPOSE
Panel mounting	YES
reliability	COMMERCIAL
Base Number Matches	1

Preview

Download Datasheet

View All

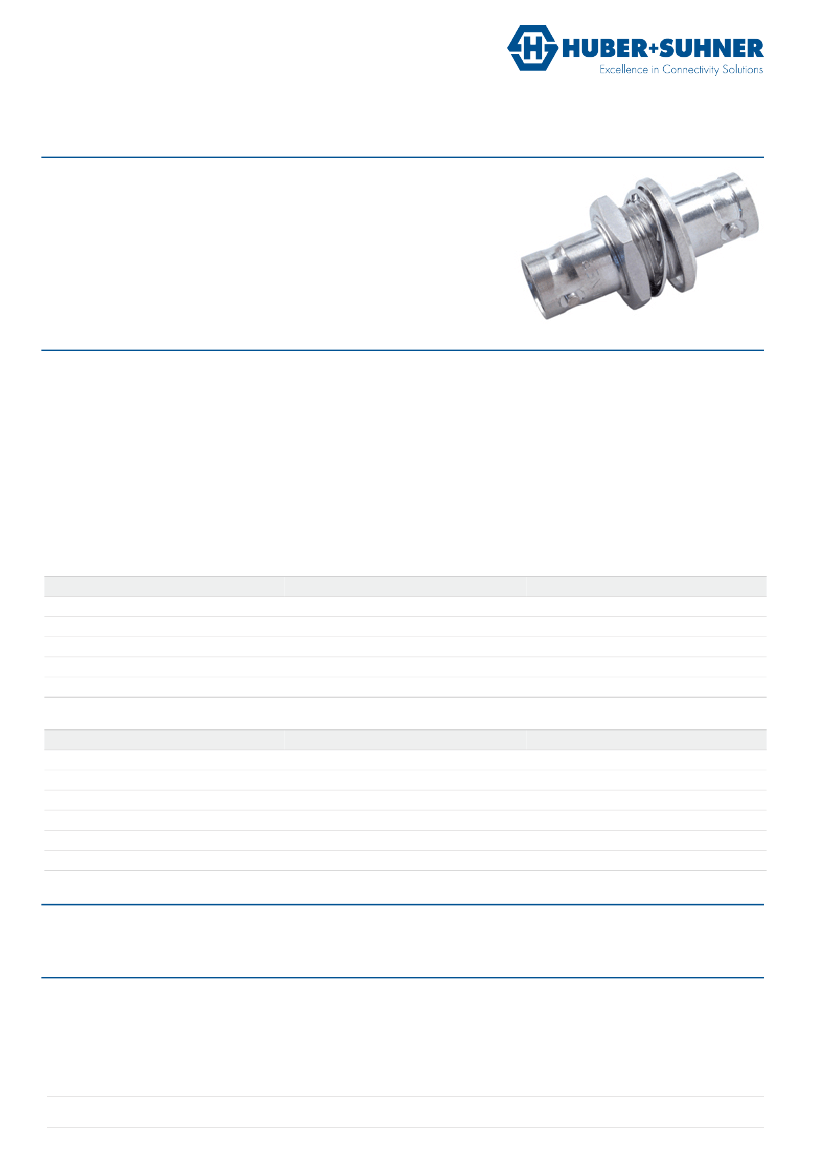

Data Sheet

Within Series Adaptor

34_BNC-75-0-1/133_N

Description

Bulkhead adaptor jack/jack

BNC jack (female) / BNC jack (female)

Interface standard

Series BNC - Compatible with IEC 61169-8_MIL-STD-348A/301_CECC 22120

Technical Data

Electrical Data

Impedance

Interface frequency max.

75 Ω

1 GHz

Mechanical Data

Number of matings

Weight

500

0.0169 kg

Environmental Data

Operating temperature

2011/65/EU (RoHS)

-65 °C to 165 °C

compliant

Material Data

Interface - BNC jack (female)

Piece Parts

Centre contact

Outer contact

Body

Insulator

Gasket

Material

Copper Beryllium Alloy

Brass

PFA / PTFE

VMQ (Silicone rubber)

Surface Plating

Gold Plating (Nickel underplated)

SUCOPLATE (R) Plating

Interface - BNC jack (female)

Piece Parts

Centre contact

Outer contact

Body

Insulator

Coupling nut

Gasket

Material

Copper Beryllium Alloy

Brass

PFA / PTFE

Brass

VMQ (Silicone rubber)

SUCOPLATE (R) Plating

Surface Plating

Gold Plating (Nickel underplated)

SUCOPLATE (R) Plating

34_BNC-75-0-1/133_NE Related Products

	34_BNC-75-0-1/133_NE	34_BNC-75-0-1/133_NH
Description	RF Adapters - Within Series	RF Adapters - Within Series
Is it Rohs certified?	conform to	conform to
package instruction	ROHS COMPLIANT	ROHS COMPLIANT
Reach Compliance Code	compliant	compliant
ECCN code	EAR99	EAR99
Adapter type	BNC-BNC	BNC-BNC
Other features	STANDARD: IEC 61169-8	STANDARD: IEC 61169-8
Body/casing type	JACK-JACK	JACK-JACK
Characteristic impedance	75 Ω	75 Ω
Connector type	RF CONNECTOR ADAPTER	RF CONNECTOR ADAPTER
Contact to complete cooperation	GOLD OVER NICKEL	NOT SPECIFIED
Contact point gender	FEMALE-FEMALE	FEMALE-FEMALE
Contact material	BERYLLIUM COPPER	NOT SPECIFIED
Contact style	COAX	COAX
Coupling type	BAYONET	BAYONET
DIN compliance	NO	NO
Durability	500 Cycles	500 Cycles
Filter function	NO	NO
IEC compliance	YES	YES
insulator material	PFA/PTFE	PFA/PTFE
MIL compliance	NO	NO
Installation method	STRAIGHT	STRAIGHT
Maximum operating frequency	1 GHz	1 GHz
Maximum operating temperature	165 °C	165 °C
Minimum operating temperature	-65 °C	-65 °C
Options	GENERAL PURPOSE	GENERAL PURPOSE
Panel mounting	YES	YES
reliability	COMMERCIAL	COMMERCIAL
Base Number Matches	1	1
