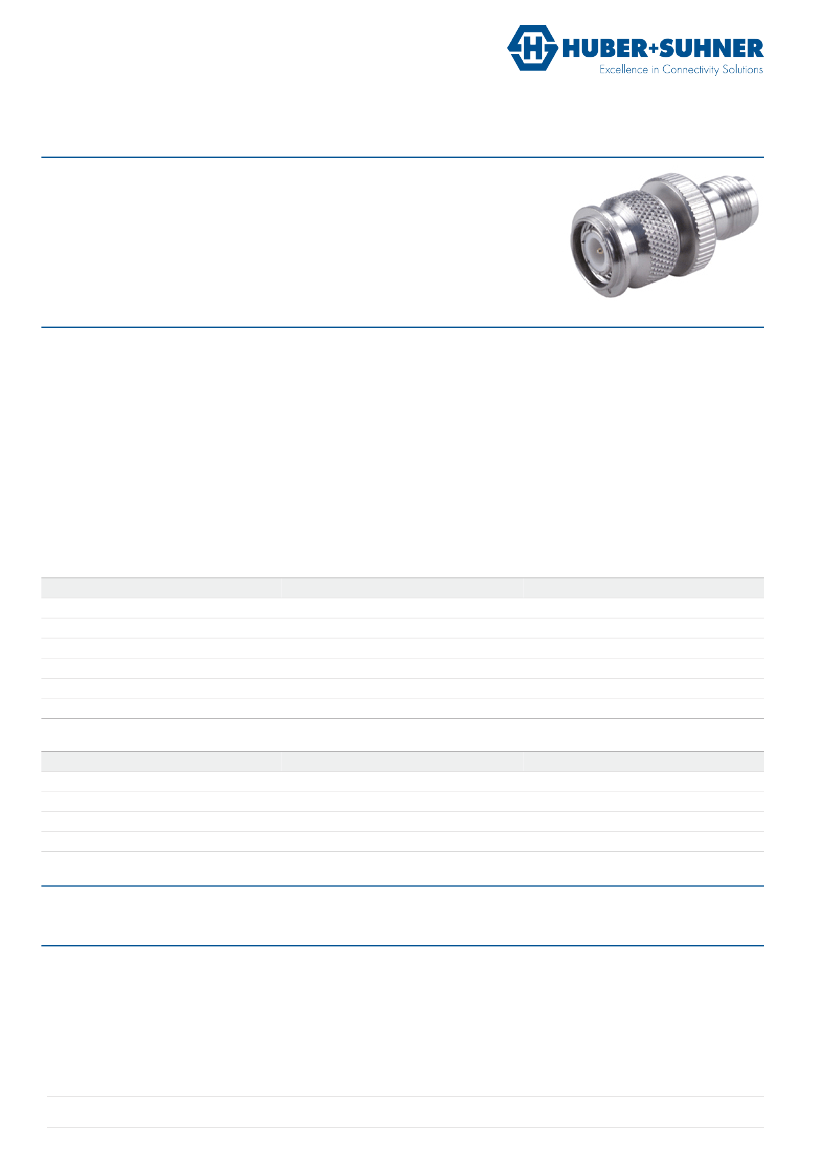

Data Sheet
Within Series Adaptor
33_TNC-50-0-1/133_N
Description
Adaptor plug/jack
TNC plug (male) / TNC jack (female)
Interface standard
Series TNC - IEC 60169-17_MIL-STD-348A/313_CECC 22200
Technical Data
Electrical Data
Impedance
Interface frequency max.
VSWR
50 Ω
11 GHz
DC - 11 GHz
≤ 1.1 + 0.027 f (GHz)
Mechanical Data
Number of matings
Weight
500
0.0264 kg
Environmental Data
Operating temperature
2011/65/EU (RoHS)
-65 °C to 165 °C
compliant
Material Data
Interface - TNC plug (male)
Piece Parts
Centre contact
Outer contact
Body
Insulator
Coupling nut
Gasket
Material
Copper Beryllium Alloy
Brass
Brass
PFA / PTFE
Brass
VMQ (Silicone rubber)
SUCOPLATE (R) Plating
Surface Plating
Gold Plating (Nickel underplated)
SUCOPLATE (R) Plating
SUCOPLATE (R) Plating
Interface - TNC jack (female)
Piece Parts
Centre contact
Outer contact
Body
Insulator
Material
Copper Beryllium Alloy
Brass
Brass
PFA / PTFE
Surface Plating
Gold Plating (Nickel underplated)
SUCOPLATE (R) Plating
SUCOPLATE (R) Plating
Related Documents
Outline drawing
DOU-00013658
Ordering Information
Single package
33_TNC-50-0-1/133_NE
HUBER+SUHNER is certified according to ISO 9001, ISO 14001, ISO/TS 16949 and IRIS
www.hubersuhner.com
