CALL 512-863-5585
x6400
DIMENSIONS
CONTACT CUSTOMER SERVICE

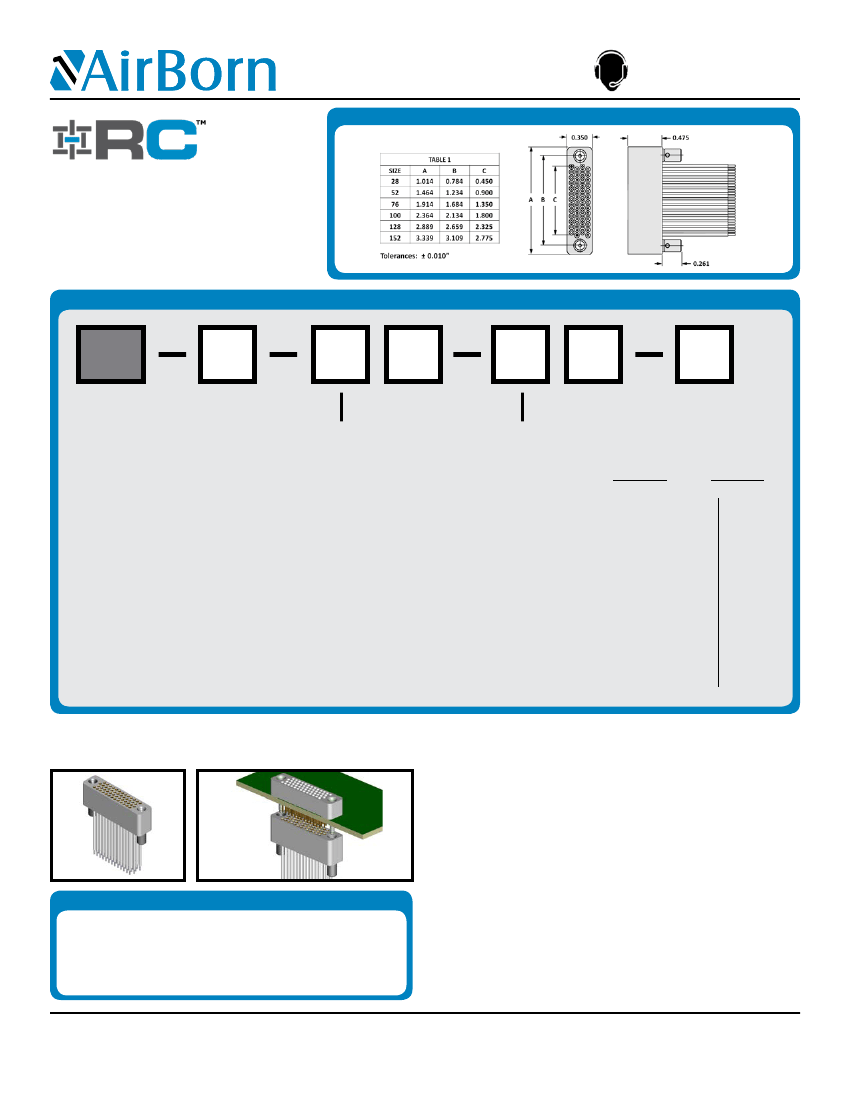

RC4B2 - Bottom-of-Stack Cable
Mating Connector (Female)
Contact spacing: 0.075” (1.91 mm)
A full profile bodied female cable connector
for use at the bottom of an RC board stack
application.
Sample Part Number Format: RC4B2-052-281-62ED
RC4B2
SERIES
Stackable
Compliant
Full-Profile
4 Rows
0.075” Spacing
Bottom-of-Stack
Cable Femate
CONFIGURATION
028 – 4 Rows/7 Columns
052 – 4 Rows/13 Columns
076 – 4 Rows/19 Columns
100 – 4 Rows/25 Columns
128 – 4 Rows/32 Columns
152 – 4 Rows/38 Columns
1
PLATING
1
–
50 µ” Au
CONTACT
28 – Socket, crimp, 26-24 AWG
29 – Socket, crimp, 30-28 AWG
TYPE
00 – None
XX – See Wire Codes
HARDWARE
00 – None
58 – Guide socket, non-polarized
62 – Jacksocket, hex, turning
WIRE CODES
VARIATION
Blank – None
XXX – Consult factory
TYPE and COLOR
Size
Mil-W-16878/4
C
24 awg
D
24 awg
E
26 awg
F
26 awg
G
28 awg
H
28 awg
J
30 awg
K
30 awg
Mil-W-22759/33
N
24 awg
P
24 awg
R
26 awg
S
26 awg
T
28 awg
U
28 awg
V
30 awg
W
30 awg
Code
Color
Ten repeating
White
Ten repeating
White
Ten repeating
White
Ten repeating
White
Ten repeating
White
Ten repeating
White
Ten repeating
White
Ten repeating
White
LENGTH
Code Length
(+1"/-0")
A
B
C
D
E
F
G
H
J
K
L
M
N
P
R
S
6"
12"
18"
24"
30"
36"
42"
48"
54"
60"
66"
72"
84"
96"
108"
120"
PLEASE CONSULT THE AIRBORN WEBSITE FOR THE LATEST REVISION OF THIS DOCUMENT PRIOR TO BEGINNING ANY DESIGN WORK.
MATED HEIGHT
Connector body height is 0.475” and is designed to mount flush to the board bottom of the mating
connector .
MATERIALS and FINISHES
Contact: . . . . . . . . . . . . . . . . . . . . . . . . . . . BeCu per ASTM B196 or B197 (BeCu alloy 172 or 173)
Contact Finish: . . . . . . . . . . . . . . . . . . . . . . . . . . Gold per MIL-G-45204 over nickel per QQ-N-290
Molded Insulator: . . . . . . . . . . . . . . . . .
Glass-filled polyphenylene sulfide (PPS) per MIL-M-24519
Hardware: . . . . . . . . . . . . . . . . . .
Stainless steel per ASTM A484/A484M and ASTM A582/A582M,
passivated per SAE AMS-2700
NOTE: AirBorn can manufacture special configurations to your exact specifications.
PERFORMANCE
NOTES
1 . The RC4B2 connector is designed to mate with an RC422 connector using contact option
-21 (0.270” long) and -39MT hardware. This contact length and hardware combination
assures proper connector mating when using boards having a thickness of 0.058”–0.125”.
2 . When guide hardware is required on the RC4B2 connector, use hardware option -3900 on
the mating connector .
3 . When jacksocket hardware is required on the RC4B2 connector, use hardware option
-39MT on the mating connector .
Contact Rating: . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3 amperes
Operating Temperature: . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . -65° C to +125° C
Insulation Resistance: . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5,000 megaohms minimum @ 500 VDC
Durability: . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 500 connector mating cycles
Contact Resistance: . . . . . . . . . . . . . . . . . . . . . . . . . . 3 to 5 milliohms (contact length dependent)
Contact Engagement Force: . . . . . . . . . . . . . . . . . . . . .
4.0 oz (113 g) max. w/0.0246” dia. test pin
Contact Separation Force: . . . . . . . . . . . . . . . . . . . . . . . .
0.5 oz (14 g) min. w/0.0226” dia. test pin
www.airborn.com
(512 ) 863-5585
RC4B2C-PNB-1F
