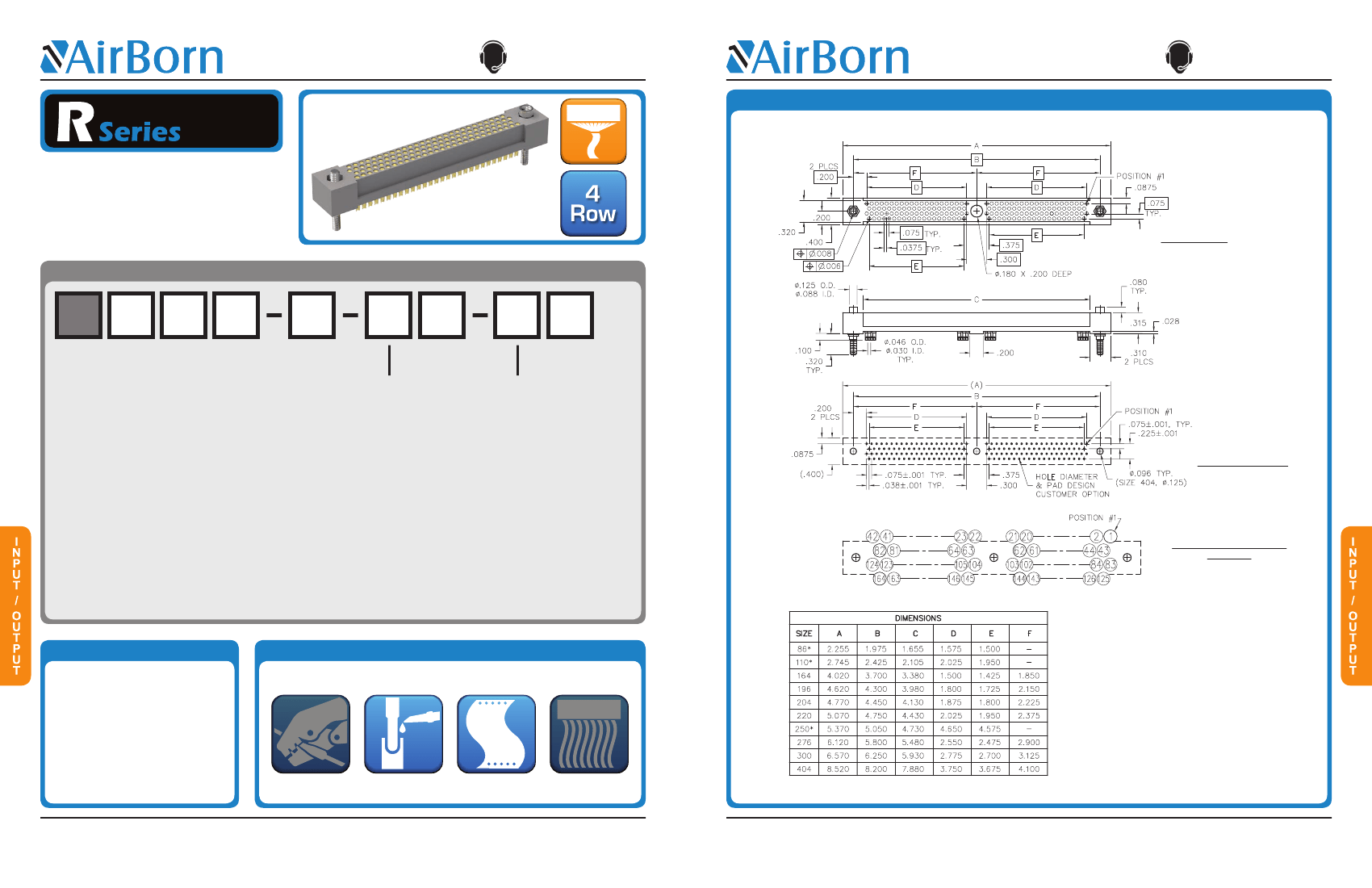

RM – Four-Row, I/O Receptacle
CONTACT CUSTOMER SERVICE
High-Density
0.075"
(1.905mm)
Plastic ▪ 4-Row ▪ 86-404 Contacts
RM – Four-Row, I/O Receptacle
Contact Spacing: 0.075" (1.91 mm)
R-Series rugged & reliable I/O connectors are
available with crimp-removable, solder-cup or
single-layer flex termination options.
RECEPTACLE
Sample Part Number Format: RM422-164-761-9601
RM
SERIES
0.075" Plastic
Rectangular
Connector
(Receptacle)
4
ROWS
4 – 4-Row
(86-404
contacts)
2
STYLE
2 – Receptacle,
straight
without
mounting
ears
2
BODY MATERIAL
2 – Polyphenylene
sulfide (PPS)
SIZE
086 – 86 contacts
110 – 110 contacts
164 – 164 contacts
196 – 196 contacts
204 – 204 contacts
220 – 220 contacts
250 – 250 contacts
276 – 276 contacts
300 – 300 contacts
404 – 404 contacts
1
PLATING
1 – Gold
POLARIZATION
00 – None
XX – See page 141 for codes
HARDWARE
0256 – None
84 – Fixed jackset, reversed, #2-56 x 0.320"
91 – Guide sockets, full round, #2-56 x 0.247"
92 – Hex turning jackset, 0.200"
93 – Fixed jackset, #2-56 x 0.247"
94 – Fixed jackset, #2-56 x 0.320"
96 – Guide sockets, polarized, #2-56 x 0.320" **
9601-9636 – Guide sockets, polarized,
#2-56 x 0.320"
97 – Guide sockets, polarized, #2-56 x 0.247" **
9701-9736 – Guide sockets, polarized,
#2-56 x 0.247"
98 – Guide sockets, universal, #2-56 x 0.247"
TERMINATION
76 – Solder cup
77 – Flex circuit, 0.093" x 0.017" Ø
*
PCB LAYOUT VIEW
FROM
COMPONENT SIDE
Notes:
‡ Not RoHS-compliant
** This hardware option is packaged unassembled (uninstalled)
PCB PIN IDENTIFICATION
PATTERN
(EXAMPLE: 164 POSITION
CONNECTOR)
PLEASE CONSULT THE AIRBORN WEBSITE FOR THE LATEST REVISION OF THIS DOCUMENT PRIOR TO BEGINNING ANY DESIGN WORK.
NOTES:
* = Single section, no center mounting hole
Mates with
RM412 — Four-row, straight plug
RM452 — Four-row, right-angle plug
RM412 — Four-row, I/O plug
Terminations
PLEASE CONSULT THE AIRBORN WEBSITE FOR THE LATEST REVISION OF THIS DOCUMENT PRIOR TO BEGINNING ANY DESIGN WORK.
RM422-PNB-1
(CTR538, REV. 1)
www.airborn.com
(512 ) 863-5585
RM422-DIM-1
(CTR538, REV. 1)
www.airborn.com
( 512 ) 863-5585
