82_MBX-S50-0-23/111_NH datasheet, PDF

Datasheet> All Categories > The connector> The connector> 82_MBX-S50-0-23/111_NH

82_MBX-S50-0-23/111_NH: DescriptionRF Connector,; CategoryThe connector The connector; File Size692KB，1 Pages; ManufacturerHUBER+SUHNER

Download Datasheet Parametric Compare View All

82_MBX-S50-0-23/111_NH Overview

RF Connector,

82_MBX-S50-0-23/111_NH Parametric

Parameter Name	Attribute value
Objectid	8341761885
Reach Compliance Code	compliant
ECCN code	EAR99
Samacsys Description	RF Connectors / Coaxial Connectors MBX straight PCB jack(f)
Samacsys Manufacturer	HUBER & SUHNER
Samacsys Modified On	2023-02-22 15:27:29
body width	0.234 inch
subject depth	0.197 inch
Body diameter	0.228 inch
body length	0.234 inch
Body/casing type	JACK
Characteristic impedance	50 Ω
Connector type	RF MMBX CONNECTOR
Contact to complete cooperation	NOT SPECIFIED
Contact completed and terminated	NOT APPLICABLE
Contact point gender	FEMALE
Contact material	NOT SPECIFIED
Coupling type	SNAP
insulator material	LIQUID CRYSTAL POLYMER
Installation method	STRAIGHT
Installation type	BOARD
Maximum operating temperature	155 °C
Minimum operating temperature	-55 °C
Options	GENERAL PURPOSE
Panel mounting	NO
Shell surface	GOLD
Shell material	BRASS
Termination type	SURFACE MOUNT
Total number of contacts	1

Preview

Download Datasheet

View All

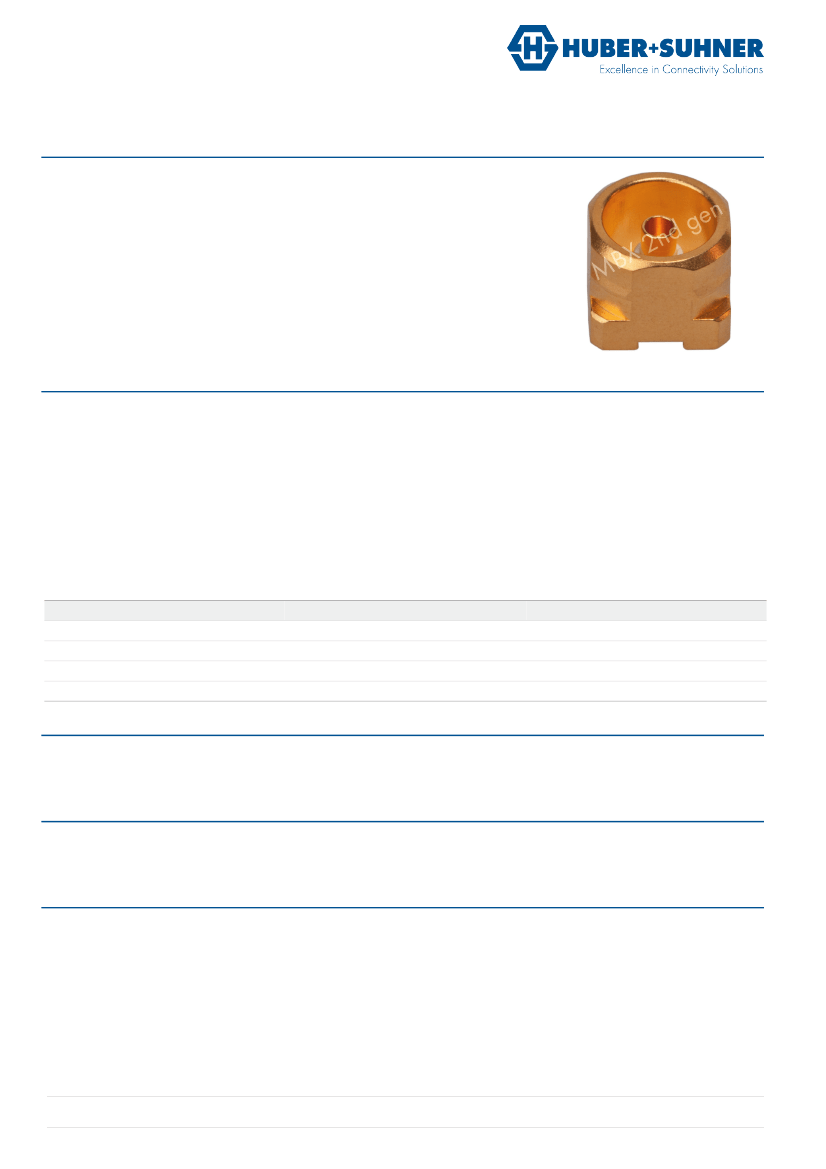

Data Sheet

Coaxial PCB Connector

82_MBX-S50-0-23/111_N

Description

Straight PCB jack

Interface Standards

HUBER+SUHNER MBX

Technical Data

Electrical Data

Impedance

Interface frequency max.

50 Ω

6 GHz

Mechanical Data

Board mounting type

Weight

surface mount

0.000632 kg

Environmental Data

Operating temperature

2011/65/EU (RoHS)

-55 °C to 155 °C

compliant

Material Data

Piece Parts

Centre contact

Outer contact

Body

Insulator

Material

Brass

LCP (Liquid crystal polymer)

Surface Plating

Gold Plating (Nickel underplated)

82_MBX-S50-0-23/111_NH Related Products

	82_MBX-S50-0-23/111_NH	82_MBX-S50-0-23/111_NM	82_MBX-S50-0-23/111_NE
Description	RF Connector,	RF Connector/Coaxial Connector	RF Connector,
Installation type	BOARD	PCB Mount	BOARD
Maximum operating temperature	155 °C	+ 155 C	155 °C
Minimum operating temperature	-55 °C	- 55 C	-55 °C
Objectid	8341761885	-	8341761884
Reach Compliance Code	compliant	-	compliant
ECCN code	EAR99	-	EAR99
body width	0.234 inch	-	0.234 inch
subject depth	0.197 inch	-	0.197 inch
Body diameter	0.228 inch	-	0.228 inch
body length	0.234 inch	-	0.234 inch
Body/casing type	JACK	-	JACK
Characteristic impedance	50 Ω	-	50 Ω
Connector type	RF MMBX CONNECTOR	-	RF MMBX CONNECTOR
Contact point gender	FEMALE	-	FEMALE
Contact material	NOT SPECIFIED	Brass	-
Coupling type	SNAP	-	SNAP
insulator material	LIQUID CRYSTAL POLYMER	-	LIQUID CRYSTAL POLYMER
Installation method	STRAIGHT	-	STRAIGHT
Options	GENERAL PURPOSE	-	GENERAL PURPOSE
Panel mounting	NO	-	NO
Shell surface	GOLD	-	GOLD
Shell material	BRASS	-	BRASS
Termination type	SURFACE MOUNT	-	SURFACE MOUNT
Total number of contacts	1	-	1
