WRDDXA122SJTB

Description
Rectangular Mil-Spec Connector 4Row Straight Recptl I/O
CategoryThe connector    The connector
File Size29KB,2 Pages
ManufacturerAirBorn
Download Datasheet Parametric View All

WRDDXA122SJTB Online Shopping

Suppliers Part Number Price MOQ In stock
WRDDXA122SJTB - - View Buy Now

WRDDXA122SJTB Overview

Rectangular Mil-Spec Connector 4Row Straight Recptl I/O

WRDDXA122SJTB Parametric

Parameter NameAttribute value
MakerAirBorn
Reach Compliance Codecompliant
Body/casing typeRECEPTACLE
Connector typeBOARD CONNECTOR
Contact completed and terminatedTIN LEAD
Contact point genderFEMALE
DIN complianceNO
Filter functionNO
IEC complianceNO
JESD-609 codee0
MIL complianceNO
Manufacturer's serial numberWRDDXA
Plug informationMULTIPLE MATING PARTS AVAILABLE
Mixed contactsNO
Installation typeCABLE
Number of rows loaded4
OptionsGENERAL PURPOSE
Termination typeCRIMP
Total number of contacts122
PLUG
WRD
Plug, right angle, without mounting ears
RECEPTACLE
SERIES
WRDDXA Receptacle, straight, crimp removable,
without mounting ears
WRDDXA mates with WRD and WRDV connectors. "A" means contacts are included.
SIZE
122
Number of contacts
122
Number of contacts
CONTACTS
The use of gaskets is not recommended with crimp socket contacts.
WRDDXA** includes full complement of WTK2222 (S or PA) crimp removable contacts packaged with connectors.
See "Contacts" in Accessories section to order separately.
When using crimp contacts with 20 gage barrel, barrel must be cut off prior to removing contact from connector body.
TYPE CONTACTS/TERMINATIONS:
TYPE CONTACTS/TERMINATIONS:
Socket, straight, crimp removable, 22 AWG
S
PR7
Pin, right angle, dip solder, .109" x .025" dia
Same as above
SA
PR9
Pin, right angle, dip solder, .140" x .025" dia
PR11
Pin, right angle, dip solder, .172" x .025" dia
P
Pin, straight, crimp removable, 22 AWG
HARDWARE
JCL
Fixed jackset, cross hole mount
SYCL
Guide set, cross hole mount
SYCL-# Guide set, cross hole mount, polarized
SY
SY-#
JTA
JTB
JTL
Guide set
Guide set, polarized
Turning jackset, .200"
Hex turning jackset, .200"
Long turning jackset, .700"
OPTIONS

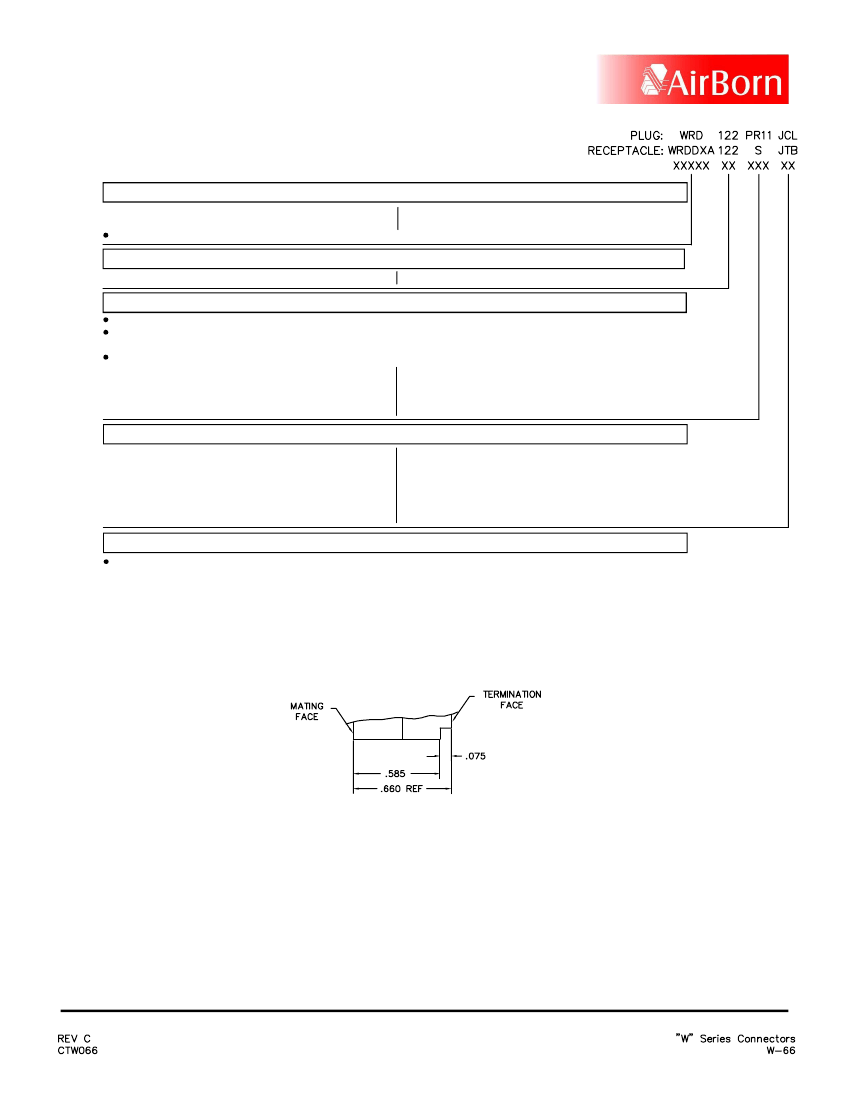

Option Codes: Add to the end of the part number. Example: WRDDXA122SSY-C45. Call factory for additional codes.
-A53
Socket, straight, crimp removable, 20 AWG
-C45 Additional .075" material at termination face for strain relief of crimped wires (22 AWG only). See Detail A below.
DETAIL A
Ask About AirBorn's Accelerated Delivery Service
