21_TNC-R50-3-14/133_NE

Description
RF Connector/Coaxial Connector
CategoryThe connector    The connector
File Size104KB，2 Pages
ManufacturerHUBER+SUHNER
Download Datasheet Parametric View All

21_TNC-R50-3-14/133_NE Overview

RF Connector/Coaxial Connector

21_TNC-R50-3-14/133_NE Parametric

Parameter NameAttribute value
package instructionROHS COMPLIANT
Reach Compliance Codecompliant
Body/casing typeJACK
Characteristic impedance50 Ω
Connector typeRF TNC CONNECTOR
Contact to complete cooperationGOLD OVER NICKEL
Contact completed and terminatedGOLD OVER NICKEL
Contact point genderMALE
Coupling typeTHREADED
DIN complianceNO
Filter functionNO
IEC complianceNO
insulator materialPERFLUOROALKOXY/POLYTETRAFLUORO ETHYLENE
JESD-609 codee4
MIL complianceNO
Installation methodSTRAIGHT
Installation typeCABLE
Maximum operating frequency11 GHz
OptionsGENERAL PURPOSE
Panel mountingNO
Termination typeCRIMP
Base Number Matches1

Preview

Download Datasheet

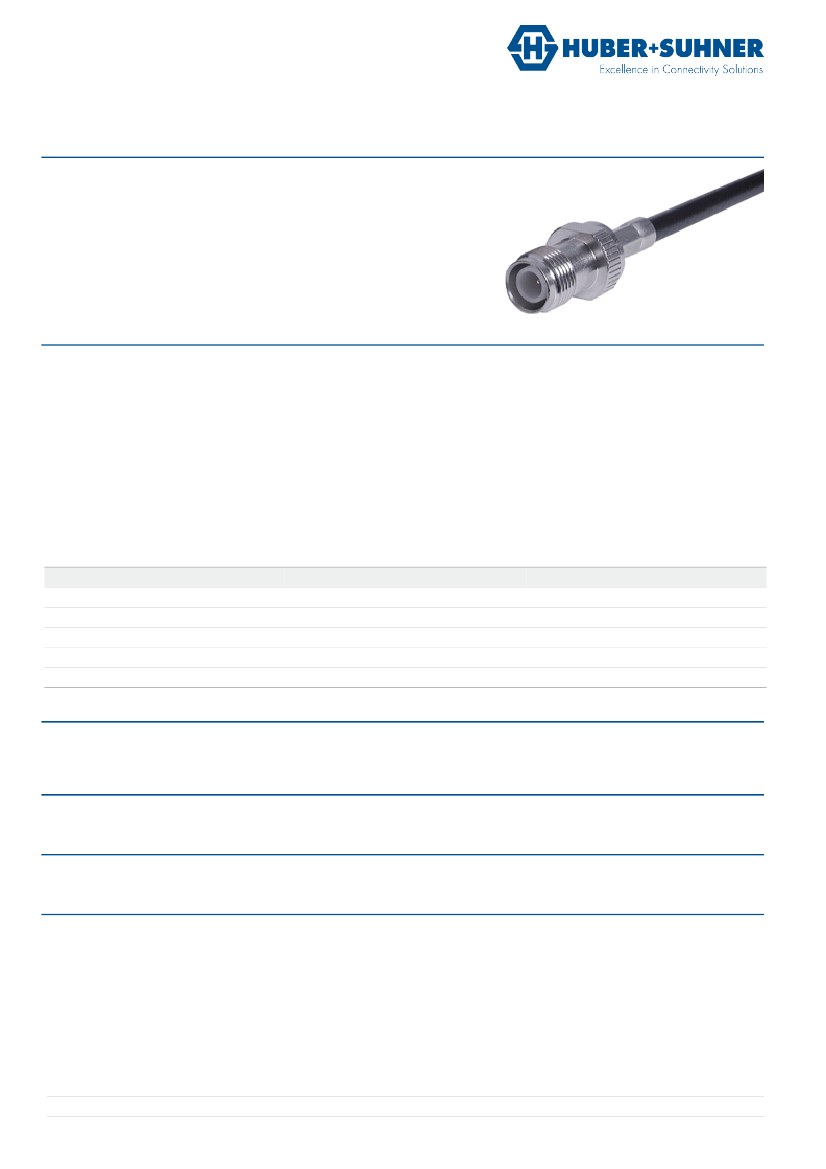

Data Sheet
Coaxial Cable Connector
21_TNC-R50-3-14/133_N
Description
Straight cable jack
Interface standards
SUHNER-TNC-R50 (reverse polarity)
Technical Data
Electrical Data
Impedance
Interface frequency max.
50 Ω
11 GHz
Mechanical Data
Centre contact
Outer contact
Weight
crimped
crimped
0.0136 kg
Environmental Data
Operating temperature
2011/65/EU, RoHS
-65 °C to 165 °C
compliant
Material Data
Piece Parts
Centre contact
Outer contact
Body
Insulator
Crimp ferrule
Material
Brass
Brass
Brass
PFA / PTFE
Copper
SUCOPLATE (R) Plating
Surface Plating
Gold Plating (Nickel underplated)
SUCOPLATE (R) Plating
SUCOPLATE (R) Plating
Related Documents
Outline drawing
Assembly instruction
DOU-00006752
DOC-0000180671
Ordering Information
Single package
21_TNC-R50-3-14/133_NE
Additional Information
Suitable cables
RG_58_C/U, G_03232
Remarks
Reverse polarised interface
HUBER+SUHNER is certified according to ISO 9001, ISO 14001, AS/EN9100, ISO/TS 16949 and IRIS.
Waiver: Fact and figures herein are for information only and do not represent any warranty of any kind.
www.hubersuhner.com
Document: DOC-0000180669 V / PDO F / date of publication: 10.05.2017 18:11:57 / uncontrolled copy
Page 1/1
