85_BNC-50-0-1/111_NE

Description
RF Connector/Coaxial Connector
CategoryThe connector    The connector
File Size138KB，1 Pages
ManufacturerHUBER+SUHNER
Environmental Compliance
Download Datasheet Parametric View All

85_BNC-50-0-1/111_NE Overview

RF Connector/Coaxial Connector

85_BNC-50-0-1/111_NE Parametric

Parameter NameAttribute value
Is it Rohs certified?conform to
MakerHUBER+SUHNER
package instructionROHS COMPLIANT
Reach Compliance Codecompliant
Other featuresSTANDARDS: IEC 60169-8; MIL-STD-348A/301
Body/casing typeJACK
Characteristic impedance50 Ω
Connector typeRF BNC CONNECTOR
Contact to complete cooperationNOT SPECIFIED
Contact point genderFEMALE
Contact materialBERYLLIUM COPPER
Coupling typeBAYONET
DIN complianceNO
Filter functionNO
IEC complianceYES
insulator materialPERFLUOROALKOXY/POLYTETRAFLUORO ETHYLENE
MIL complianceYES
Installation methodRIGHT ANGLE
Installation typeBOARD
Maximum operating frequency4 GHz
OptionsGENERAL PURPOSE
Panel mountingNO
Termination typeSOLDER
Base Number Matches1

Preview

Download Datasheet

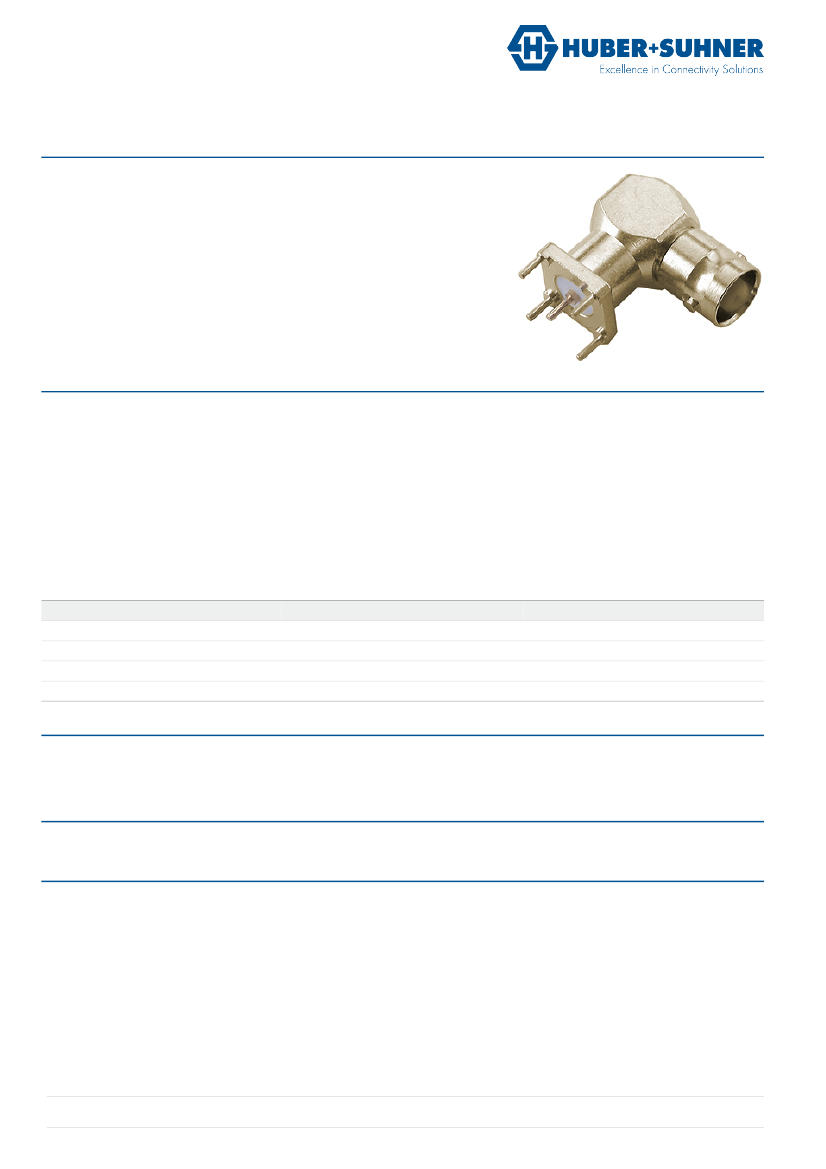

Data Sheet
Coaxial PCB Connector
85_BNC-50-0-1/111_N
Description
Right angle PCB jack
Interface Standards
IEC 60169-8_MIL-STD-348A/301_CECC 22120
Technical Data
Electrical Data
Impedance
Interface frequency max.
50 Ω
4 GHz
Mechanical Data
Board mounting type
Weight
through holes
0.0185 kg
Environmental Data
Operating temperature
2011/65/EU (RoHS)
-65 °C to 165 °C
compliant
Material Data
Piece Parts
Centre contact
Outer contact
Body
Insulator
Material
Copper Beryllium / Brass
Brass
Brass
PFA / PTFE
Surface Plating
SUCOPRO Plating
SUCOPRO Plating
SUCOPRO Plating
Related Documents
Outline drawing
Catalogue drawing
Mounting hole
DOU-00070952
DCA-00012658
DOU-00012084
Ordering Information
Single package
85_BNC-50-0-1/111_NE
Remarks
PCB connector with stand-offs
HUBER+SUHNER is certified according to ISO 9001, ISO 14001, ISO/TS 16949 and IRIS
www.hubersuhner.com
Waiver: It is exclusively in written agreements that we provide our customers with warrants and representations as to the technical specifications and/or the fitness for any
particular purpose. The facts and figures contained herein are carefully compiled to the best of our knowledge, but they are intended for general information purposes only.
Document: DOC-0000192748 K / PDO E / date of publication: 12/5/2014 12:21:09 PM / uncontrolled copy
Page 1/1
