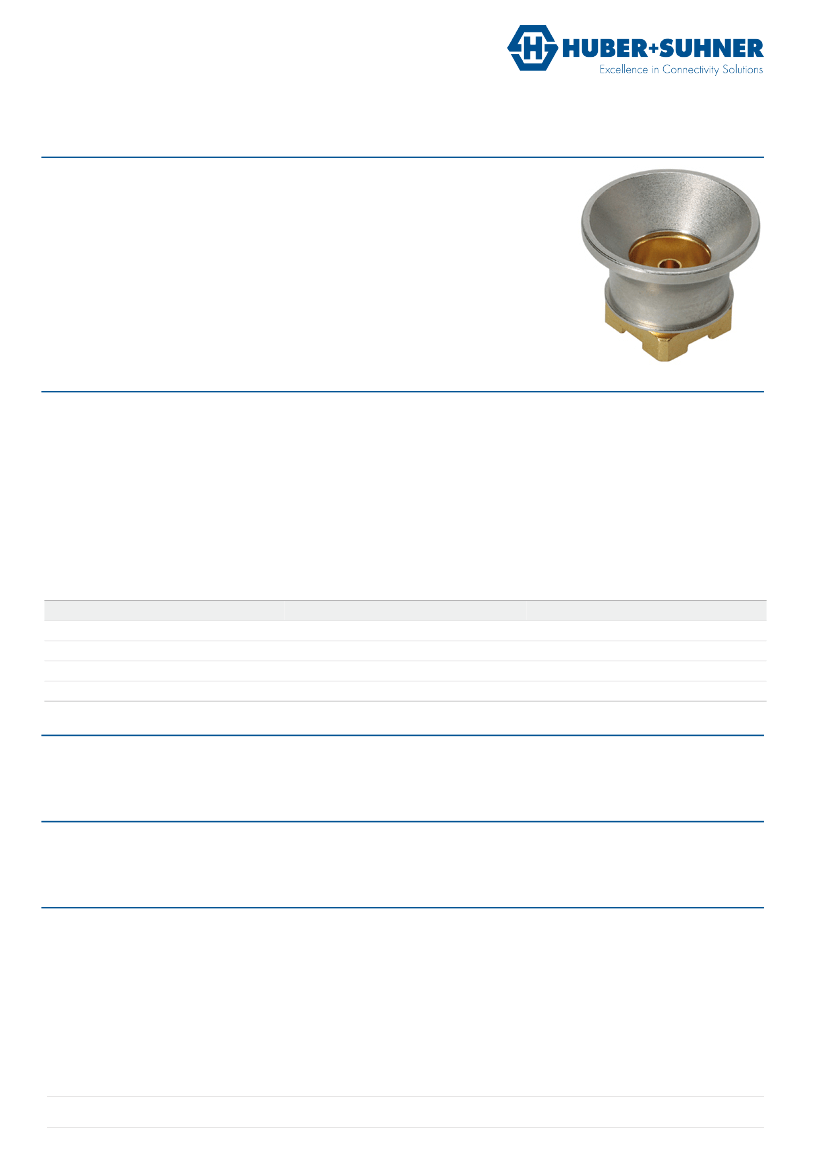

Coaxial PCB Connector
82_MBX-S50-0-2/113_N
Description
Straight PCB jack
Interface Standards
HUBER+SUHNER MBX
Technical Data
Electrical Data
Impedance
Interface frequency max.
50 Ω
6 GHz
Mechanical Data
Board mounting type
Weight
surface mount
0.001625 kg
Environmental Data
Operating temperature
2011/65/EU (RoHS)
-55 °C to 155 °C
compliant
Material Data
Piece Parts
Centre contact
Outer contact
Body
Insulator
Material
Brass
Brass
Brass
LCP (Liquid crystal polymer)
Surface Plating
SUCOPRO Plating
SUCOPRO Plating
SUCOPLATE (R) Plating
Related Documents
Outline drawing
Catalogue drawing
Mounting hole
DOU-00144727
DCA-00161414
DOU-00142408
Ordering Information
Tape and Reel package
Bulk 100 pcs package
Single package
82_MBX-S50-0-2/113_NM
82_MBX-S50-0-2/113_NH
82_MBX-S50-0-2/113_NE
Remarks
PCB connector with stand-offs
HUBER+SUHNER is certified according to ISO 9001, ISO 14001, ISO/TS 16949 and IRIS
www.hubersuhner.com
Waiver: It is exclusively in written agreements that we provide our customers with warrants and representations as to the technical specifications and/or the fitness for any
particular purpose. The facts and figures contained herein are carefully compiled to the best of our knowledge, but they are intended for general information purposes only.
Document: DOC-0000330042 H / PDO D / date of publication: 23.03.2016 13:32:02 / uncontrolled copy
Page 1/1
