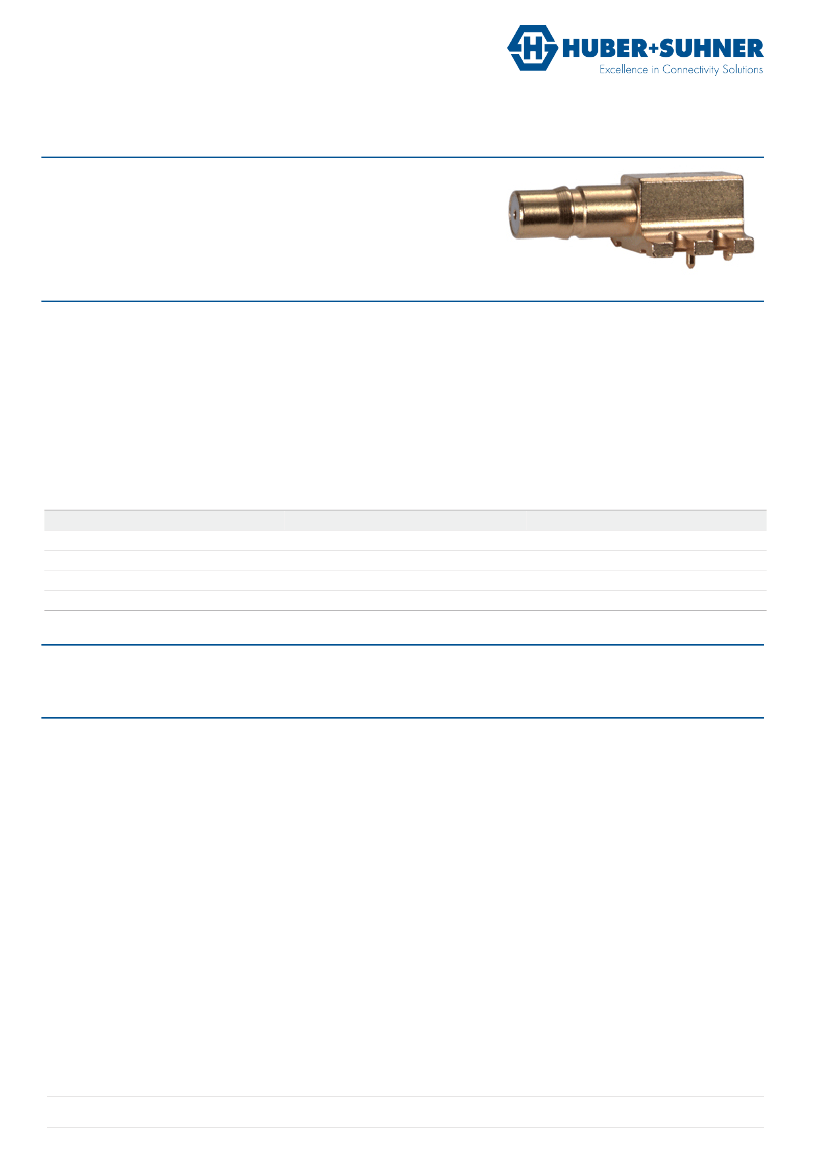

Coaxial PCB Connector

85_QMA-S50-0-2/111_N

Description

Right angle PCB jack

Interface Standards

QMA QLF compliant

Technical Data

Electrical Data

Impedance

Interface frequency max.

50 Ω

18 GHz

Mechanical Data

Board mounting type

Weight

surface mount

0.0064 kg

Environmental Data

Operating temperature

2011/65/EU (RoHS)

-40 °C to 85 °C

compliant

Material Data

Piece Parts

Centre contact

Outer contact

Body

Insulator

Material

Copper Beryllium / Bronze

Brass

PFA / PTFE

Surface Plating

SUCOPRO Plating

85_QMA-S50-0-2/111_NE Related Products

	85_QMA-S50-0-2/111_NE	85_QMA-S50-0-2/111_NM	85_QMA-S50-0-2/111_NH
Description	RF Connector/Coaxial Connector	RF Connector/Coaxial Connector	RF Connector/Coaxial Connector
Maker	HUBER+SUHNER	HUBER+SUHNER	HUBER+SUHNER
package instruction	ROHS COMPLIANT	ROHS COMPLIANT	ROHS COMPLIANT
Reach Compliance Code	compliant	compliant	compliant
Body/casing type	JACK	JACK	JACK
Characteristic impedance	50 Ω	50 Ω	50 Ω
Connector type	RF CONNECTOR	RF CONNECTOR	RF CONNECTOR
Contact to complete cooperation	GOLD OVER NICKEL	GOLD OVER NICKEL	GOLD OVER NICKEL
Contact completed and terminated	GOLD OVER NICKEL	GOLD OVER NICKEL	GOLD OVER NICKEL
Coupling type	SNAP	SNAP	SNAP
DIN compliance	NO	NO	NO
Filter function	NO	NO	NO
IEC compliance	NO	NO	NO
insulator material	PFA/PTFE	PFA/PTFE	PFA/PTFE
JESD-609 code	e4	e4	e4
MIL compliance	NO	NO	NO
Installation method	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE
Installation type	BOARD	BOARD	BOARD
Maximum operating frequency	18 GHz	18 GHz	18 GHz
Options	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE
Panel mounting	NO	NO	NO
Termination type	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT
Base Number Matches	1	1	1
