82_SMC-50-0-1/111_NH datasheet, PDF

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > The connector> The connector> 82_SMC-50-0-1/111_NH

Preview

82_SMC-50-0-1/111_NH: DescriptionRF Connector/Coaxial Connector; CategoryThe connector The connector; File Size99KB，1 Pages; ManufacturerHUBER+SUHNER; Environmental Compliance

Download Datasheet Parametric Compare View All

82_SMC-50-0-1/111_NH Overview

RF Connector/Coaxial Connector

82_SMC-50-0-1/111_NH Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	HUBER+SUHNER
package instruction	ROHS COMPLIANT
Reach Compliance Code	compliant
ECCN code	EAR99
Other features	STANDARDS: IEC 60169-9; MIL-STD-348A/312
Body/casing type	JACK
Characteristic impedance	50 Ω
Connector type	RF SMC CONNECTOR
Contact to complete cooperation	GOLD OVER NICKEL
Contact completed and terminated	Gold (Au) - with Nickel (Ni) barrier
Contact point gender	FEMALE
Contact material	BRASS
Coupling type	THREADED
DIN compliance	NO
Filter function	NO
IEC compliance	YES
insulator material	PFA/PTFE
JESD-609 code	e4
MIL compliance	YES
Installation method	STRAIGHT
Installation type	BOARD
Maximum operating frequency	10 GHz
Options	GENERAL PURPOSE
Panel mounting	NO
Termination type	SOLDER
Base Number Matches	1

Preview

Download Datasheet

View All

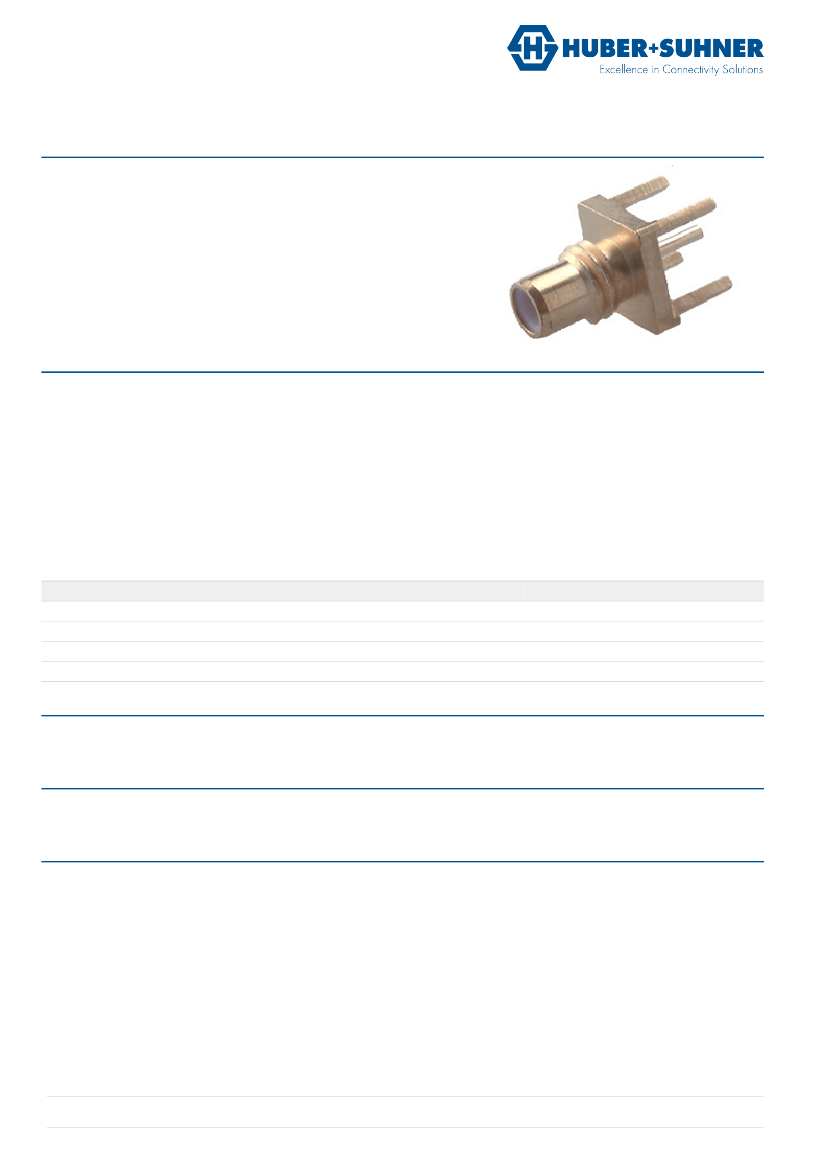

Data Sheet

Coaxial PCB Connector

82_SMC-50-0-1/111_N

Description

Straight PCB jack

Interface Standards

IEC 60169-9_MIL-STD-348A/312_CECC 22140

Technical Data

Electrical Data

Impedance

Interface frequency max.

50 Ω

10 GHz

Mechanical Data

Board mounting type

Weight

through holes

0.0008 kg

Environmental Data

Operating temperature

2011/65/EU (RoHS)

-65 °C to 165 °C

compliant

Material Data

Piece Parts

Centre contact

Outer contact

Body

Insulator

Material

Brass

PFA / PTFE

Surface Plating

Gold Plating (Nickel underplated)

82_SMC-50-0-1/111_NH Related Products

	82_SMC-50-0-1/111_NH	82_SMC-50-0-1/111_NE
Description	RF Connector/Coaxial Connector	RF Connector/Coaxial Connector
Is it Rohs certified?	conform to	conform to
Maker	HUBER+SUHNER	HUBER+SUHNER
package instruction	ROHS COMPLIANT	ROHS COMPLIANT
Reach Compliance Code	compliant	compliant
ECCN code	EAR99	EAR99
Other features	STANDARDS: IEC 60169-9; MIL-STD-348A/312	STANDARDS: IEC 60169-9; MIL-STD-348A/312
Body/casing type	JACK	JACK
Characteristic impedance	50 Ω	50 Ω
Connector type	RF SMC CONNECTOR	RF SMC CONNECTOR
Contact to complete cooperation	GOLD OVER NICKEL	GOLD OVER NICKEL
Contact completed and terminated	Gold (Au) - with Nickel (Ni) barrier	Gold (Au) - with Nickel (Ni) barrier
Contact point gender	FEMALE	FEMALE
Contact material	BRASS	BRASS
Coupling type	THREADED	THREADED
DIN compliance	NO	NO
Filter function	NO	NO
IEC compliance	YES	YES
insulator material	PFA/PTFE	PFA/PTFE
JESD-609 code	e4	e4
MIL compliance	YES	YES
Installation method	STRAIGHT	STRAIGHT
Installation type	BOARD	BOARD
Maximum operating frequency	10 GHz	10 GHz
Options	GENERAL PURPOSE	GENERAL PURPOSE
Panel mounting	NO	NO
Termination type	SOLDER	SOLDER
Base Number Matches	1	1
