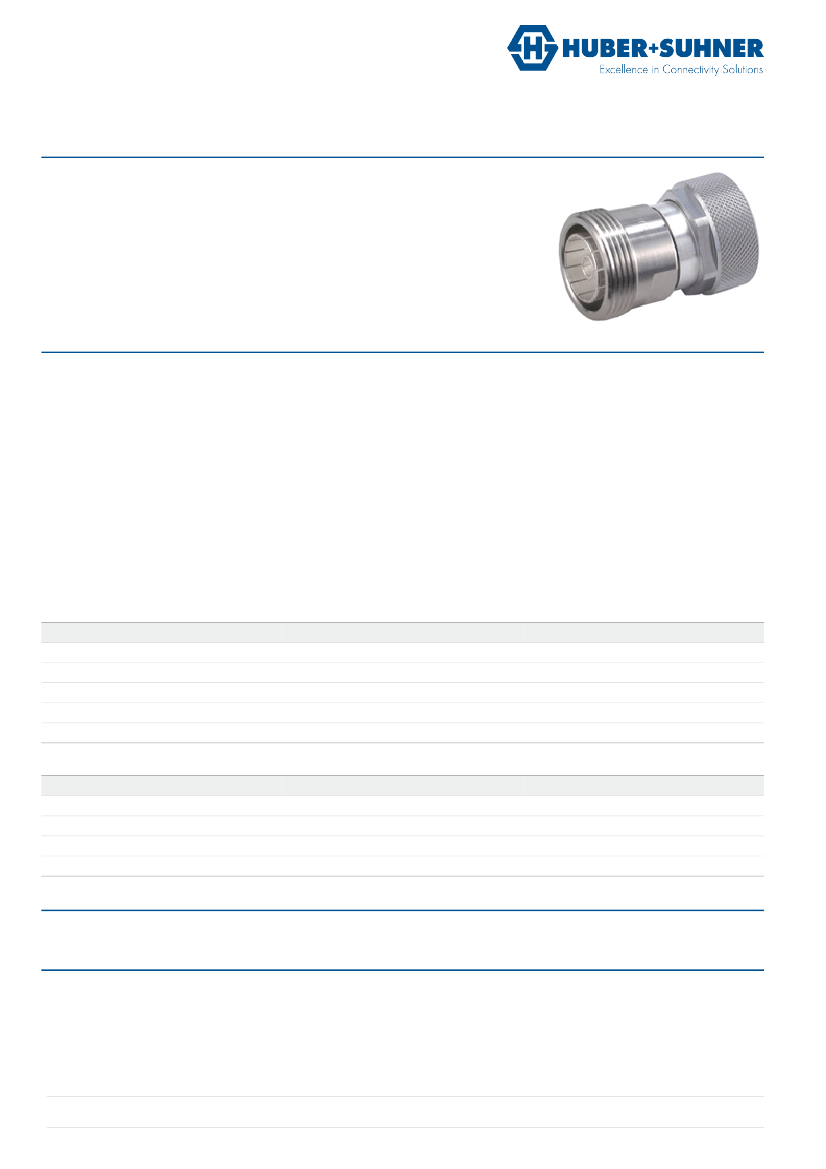

Data Sheet
Within Series Adaptor
33_716-50-0-1/003_-
Description
Adaptor plug/jack
7/16-precision plug (male) / 7/16-precision jack (female)
For Test & Measurement applications
Precision adaptor
Interface standard
Series 7/16-precision - SUHNER-716
Technical Data
Electrical Data
Impedance
Interface frequency max.
Frequency range
Return loss
Electrical length
50 Ω
7.5 GHz
DC to 2 GHz
≥ 40 dB
41.62 mm
2 to 4 GHz
≥ 36 dB
4 to 6 GHz
≥ 34 dB
Mechanical Data
Number of matings
Weight
500
0.1263 kg
Environmental Data
Operating temperature
2011/65/EU (RoHS)
-65 °C to 165 °C
compliant
Material Data
Interface - 7/16-precision plug (male)
Piece Parts
Centre contact
Outer contact
Body
Insulator
Coupling nut
Material
Bronze / Brass
Brass
Brass
PFA / PTFE
Brass
SUCOPLATE (R) Plating
Surface Plating
Silver Plating
Silver Plating
Silver Plating
Interface - 7/16-precision jack (female)
Piece Parts
Centre contact
Outer contact
Body
Insulator
Material
Bronze / Brass
Brass
Brass
PFA / PTFE
Surface Plating
Silver Plating
Silver Plating
Silver Plating
Related Documents
Outline drawing
DOU-00013703
Ordering Information
Single package
33_716-50-0-1/003_-E
HUBER+SUHNER is certified according to ISO 9001, ISO 14001, ISO/TS 16949 and IRIS
www.hubersuhner.com
Waiver: It is exclusively in written agreements that we provide our customers with warrants and representations as to the technical specifications and/or the fitness for any
particular purpose. The facts and figures contained herein are carefully compiled to the best of our knowledge, but they are intended for general information purposes only.
Document: DOC-0000194290 S / PDO E / date of publication: 12/4/2014 4:38:13 PM / uncontrolled copy
Page 1/1
