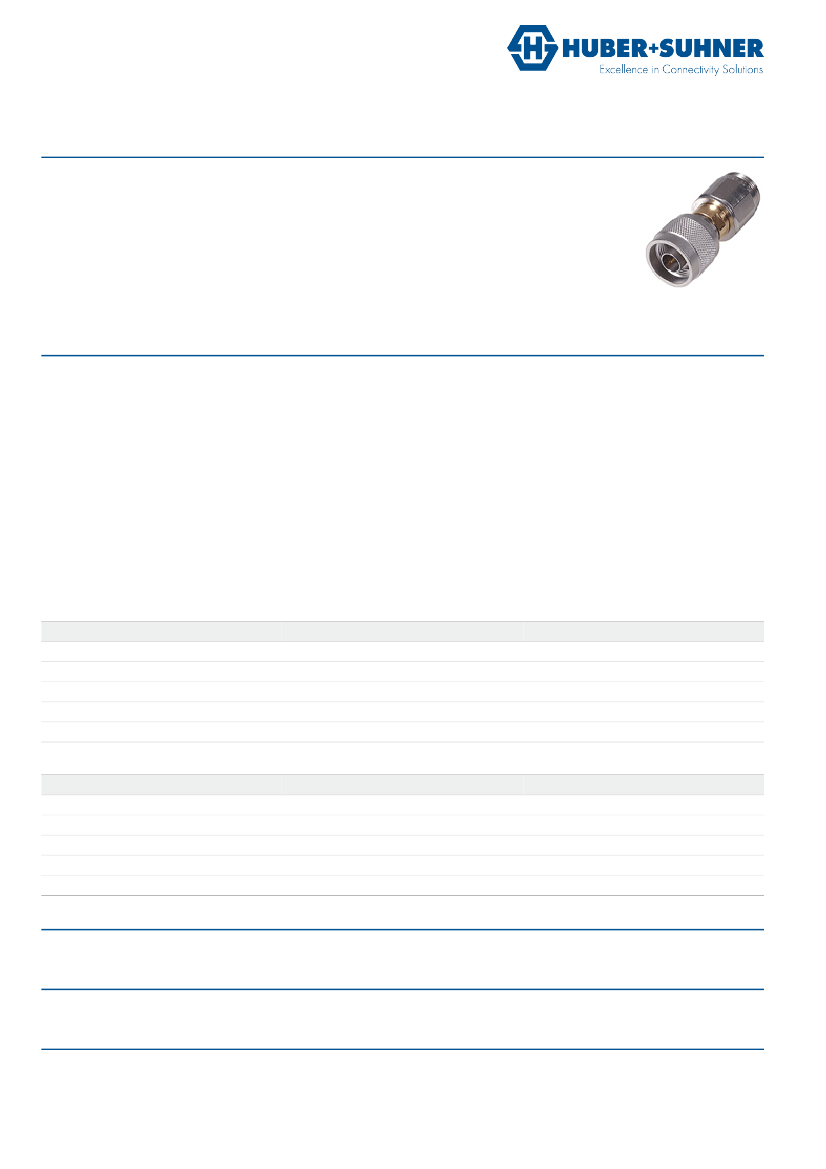

Data Sheet
Between Series Adaptor
32_N-PC7-50-1/1--_U
Description
Adaptor plug/plug
N-precision plug (male) / PC 7 plug (male)
For Test & Measurement applications
Precision adaptor
Interface standards
Series N-precision - IEC 60169-16_MIL-STD-348A/402_CECC 22210
Series PC 7 - IEEE STD 287_ANSI C 16.43
Technical Data
Electrical Data
Impedance
Interface frequency max.
VSWR
Electrical length
50 Ω
18 GHz
DC - 18 GHz
≤ 1.02 + 0.002 f (GHz)
47.33 mm
Mechanical Data
Number of matings
Weight
500
0.0638 kg
Environmental Data
Operating temperature
2011/65/EU (RoHS)
-55 °C to 70 °C
compliant
Material Data
Interface - N-precision plug (male)
Piece Parts
Centre contact
Outer contact
Body
Insulator
Coupling nut
Material
Copper Beryllium Alloy
Stainless Steel
Stainless Steel
Air Dielectric - Bead - PPH
Brass
SUCOPLATE (R) Plating
Surface Plating
Gold Plating (without Nickel underplating)
Interface - PC 7 plug (male)
Piece Parts
Centre contact
Outer contact
Body
Insulator
Coupling nut
Material
Copper Beryllium Alloy
Brass
Brass
Air Dielectric - Bead - PPH
Brass
SUCOPLATE (R) Plating
Surface Plating
Gold Plating (without Nickel underplating)
Gold Plating (without Nickel underplating)
Gold Plating (without Nickel underplating)
Related Documents
Catalogue drawing
DCA-00014508
Ordering Information
Single package
32_N-PC7-50-1/1--_UE
Remarks
Operating specification acc. IEEE Std 287: temperature 13 °C to 33 °C
Document: DOC-0000195498 R / PDO G / date of publication: 12/4/2014 4:34:20 PM / uncontrolled copy
Page 1/2
Data Sheet
Between Series Adaptor
32_N-PC7-50-1/1--_U
HUBER+SUHNER is certified according to ISO 9001, ISO 14001, ISO/TS 16949 and IRIS
www.hubersuhner.com
Waiver: It is exclusively in written agreements that we provide our customers with warrants and representations as to the technical specifications and/or the fitness for any
particular purpose. The facts and figures contained herein are carefully compiled to the best of our knowledge, but they are intended for general information purposes only.
Document: DOC-0000195498 R / PDO G / date of publication: 12/4/2014 4:34:20 PM / uncontrolled copy
Page 2/2
