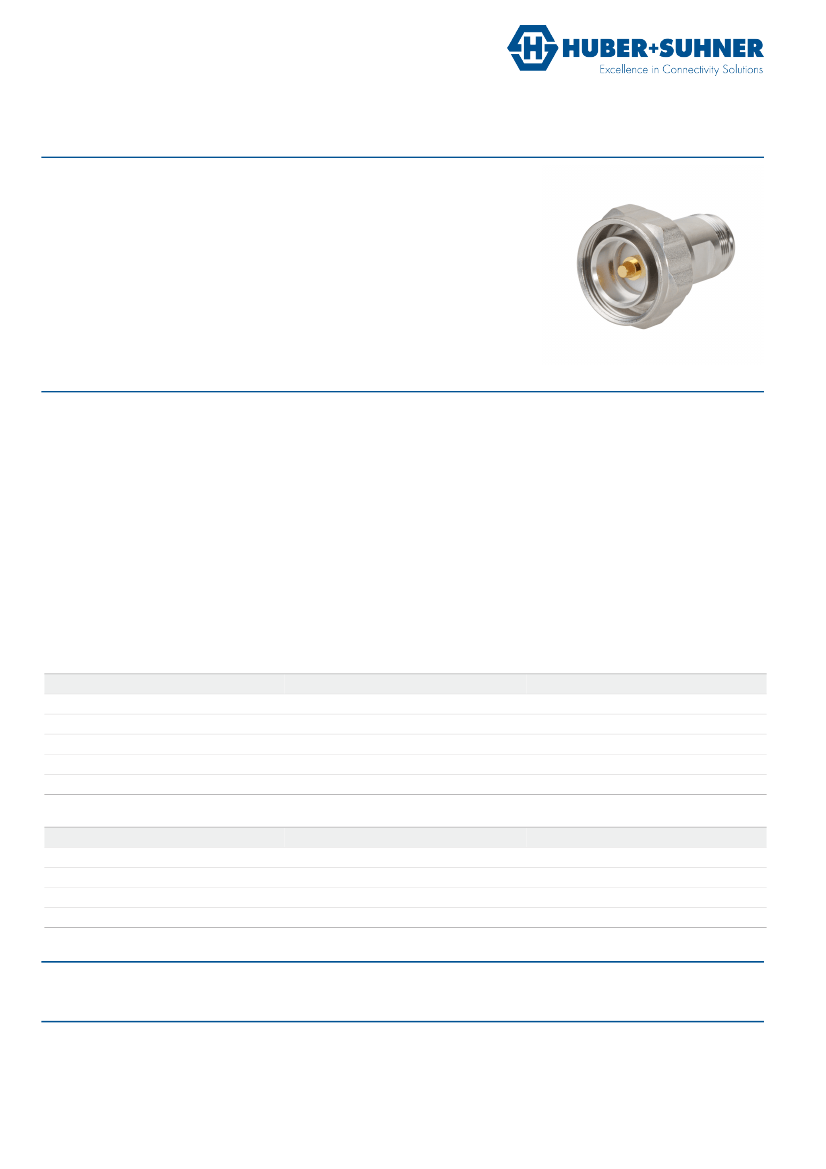

Data Sheet
Between Series Adaptor
33_716-4310-50-1/133_W
Description
PIM Adaptor plug/jack
7/16 plug (male) / 4.3-10 jack (female)
Interface standards
Series 7/16 - IEC 61169-4_CECC 22190_DIN 47223_VG 95250
Series 4.3-10 - IEC 61169-54
Benefits
Low passive intermodulation (PIM) adaptor
For Test & Measurement applications
Technical Data
Electrical Data
Impedance
Interface frequency max.
Frequency range
Return loss
PIM, 3rd order intermodulation distortion (IMD) max.
50 Ω
7.5 GHz
0 to 4 GHz
27 dB
4 to 6 GHz
25 dB
Static -166 dBc at 2x 43 dBm / 20 W carrier
Mechanical Data
Number of matings
Weight
500
0.115 kg
Environmental Data
Operating temperature
2011/65/EC (RoHS)
-55 °C to 90 °C
compliant
Material Data
Interface - 7/16 plug (male)
Piece Parts
Centre contact
Outer contact
Body
Insulator
Coupling nut
Material
Copper Beryllium Alloy
Brass
Brass
PFA / PTFE
Brass
Surface Plating
SUCOPRO Plating
SUCOPLATE (R) Plating
SUCOPLATE (R) Plating
Interface - 4.3-10 jack (female)
Piece Parts
Centre contact
Outer contact
Body
Insulator
Material
Copper Beryllium Alloy
Bronze / Brass
Brass
PFA / PTFE
Surface Plating
SUCOPRO Plating
SUCOPLATE (R) Plating
SUCOPLATE (R) Plating
Related Documents
Outline drawing
DOU-00256775
Ordering Information
Single package
33_716-4310-50-1/133_WE
Document: DOC-0000680810 G / PDO I / date of publication: 27.03.2017 18:47:19 / uncontrolled copy
Page 1/2
Data Sheet
Between Series Adaptor
33_716-4310-50-1/133_W
HUBER+SUHNER is certified according to ISO 9001, ISO 14001, AS/EN9100, ISO/TS 16949 and IRIS.
Waiver: Fact and figures herein are for information only and do not represent any warranty of any kind.
www.hubersuhner.com
Document: DOC-0000680810 G / PDO I / date of publication: 27.03.2017 18:47:19 / uncontrolled copy
Page 2/2
