32_MMBX-50-0-13/111_NH

Description
RF Adapters - Within Series
CategoryThe connector    Rf interconnection    Rf adapter    Rf adapter - series1
File Size107KB，1 Pages
ManufacturerHUBER+SUHNER
Environmental Compliance
Download Datasheet Parametric Compare View All

32_MMBX-50-0-13/111_NH Overview

RF Adapters - Within Series

32_MMBX-50-0-13/111_NH Parametric

Parameter NameAttribute value
MakerHUBER+SUHNER
Product CategoryRF Adapters - Within Series
RF seriesMMBX
side 1 sexPlug (Male)
Side 1 polarityNormal
side 2 sexPlug (Male)
Side 2 polarityNormal
impedance50 Ohms
minimum frequency-
maximum frequency12.4 GHz
Main materialBronze
Subject typeStraight
directionStraight
Contact materialBeryllium Copper
Installation styleBulkhead
Side 1 RF SeriesMMBX
Side 2 RF SeriesMMBX
Factory packaging quantity1

Preview

Download Datasheet

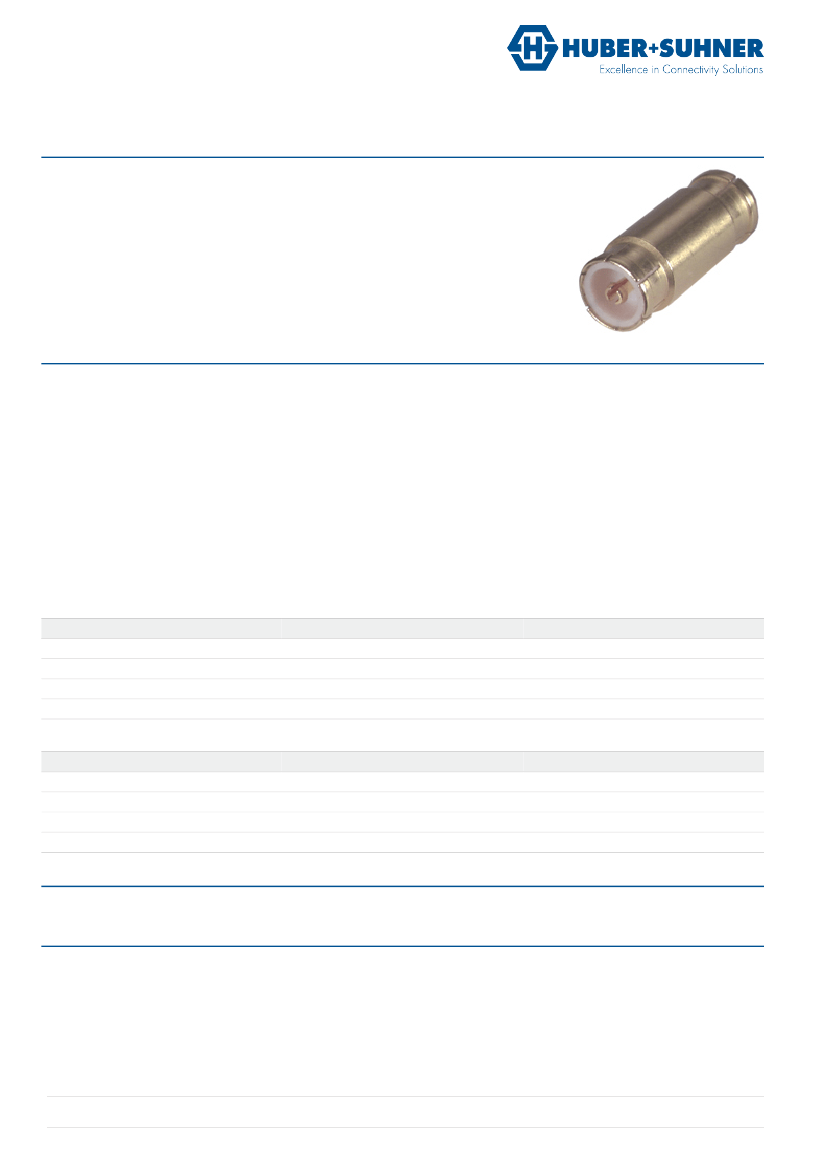

Data Sheet
Within Series Adaptor
32_MMBX-50-0-13/111_N
Description
Adaptor plug/plug
MMBX plug (male) / MMBX plug (male)
Slide - snap interface
Interface standard
Series MMBX - SUHNER-MMBX
Technical Data
Electrical Data
Impedance
Interface frequency max.
Frequency range
Return loss
50 Ω
12.4 GHz
DC to 2.5 GHz
≥ 32 dB
2.5 to 6 GHz
≥ 26 dB
6 to 12.4 GHz
≥ 15 dB
Mechanical Data
Number of matings
Weight
100
0.0004 kg
Environmental Data
Operating temperature
2011/65/EU (RoHS)
-55 °C to 155 °C
compliant
Material Data
Interface - MMBX plug (male)
Piece Parts
Centre contact
Outer contact
Body
Insulator
Material
Copper Beryllium Alloy
Bronze
Bronze
PFA / PTFE
Surface Plating
SUCOPRO Plating
SUCOPRO Plating
SUCOPRO Plating
Interface - MMBX plug (male)
Piece Parts
Centre contact
Outer contact
Body
Insulator
Material
Copper Beryllium Alloy
Bronze
Bronze
PFA / PTFE
Surface Plating
SUCOPRO Plating
SUCOPRO Plating
SUCOPRO Plating
Related Documents
Outline drawing
DOU-00064707
Ordering Information
Single package
Bulk 100 pcs package
Tray package
32_MMBX-50-0-13/111_NE
32_MMBX-50-0-13/111_NH
32_MMBX-50-0-13/111_NY
HUBER+SUHNER is certified according to ISO 9001, ISO 14001, ISO/TS 16949 and IRIS
www.hubersuhner.com
Waiver: It is exclusively in written agreements that we provide our customers with warrants and representations as to the technical specifications and/or the fitness for any
particular purpose. The facts and figures contained herein are carefully compiled to the best of our knowledge, but they are intended for general information purposes only.
Document: DOC-0000246398 O / PDO H / date of publication: 12/4/2014 4:37:58 PM / uncontrolled copy
Page 1/1

32_MMBX-50-0-13/111_NH Related Products

32_MMBX-50-0-13/111_NH 32_MMBX-50-0-13/111_NE 32_MMBX-50-0-13/111_NY
Description RF Adapters - Within Series RF Adapters - Within Series RF Adapters - Within Series
Contact material Beryllium Copper NOT SPECIFIED Beryllium Copper
Maker HUBER+SUHNER - HUBER+SUHNER
Product Category RF Adapters - Within Series - RF Adapters - Within Series
RF series MMBX - MMBX
side 1 sex Plug (Male) - Plug (Male)
Side 1 polarity Normal - Normal
side 2 sex Plug (Male) - Plug (Male)
Side 2 polarity Normal - Normal
impedance 50 Ohms - 50 Ohms
maximum frequency 12.4 GHz - 12.4 GHz
Main material Bronze - Bronze
Subject type Straight - Straight
direction Straight - Straight
Installation style Bulkhead - Bulkhead
Side 1 RF Series MMBX - MMBX
Side 2 RF Series MMBX - MMBX
Factory packaging quantity 1 - 1
